- Page 1 Inseego Wavemaker 5G Outdoor CPE FW2000e Installation Guide...
-
Page 2: Preparing To Install
Preparing to Install Tools and materials • Installation handle • Ladder • Installation PoE* cable (RJ45 fittings attached) • Smartphone/device for Inseego Mobile App • SIM card (4FF nano) • Phillips-head screwdriver • M6 4mm hex driver • Drill • 14mm socket wrench/driver •... - Page 3 Pre-Installation 1. Unscrew the protective shield over the SIM slots using a Phillips-head screwdriver. NOTE: This device supports only Nano SIM cards. 2. Use the included SIM tool to insert a Nano 4FF SIM card into the appropriate SIM slot. 3.
- Page 4 Inseego Mobile App from Apple Store, or visit Store or Google Play https://inseego.com/inseego- connect-get-app to download the App. 2. Follow instructions within the Inseego Mobile App to connect to the FW2000e and perform a 5G site survey to identify the ideal location to install.
- Page 5 Installing the PoE cable 1. Remove the installation PoE cable used for the location survey from the device using needle nose pliers or tweezers. 2. Remove the rubber pin from the PoE gland bushing and assemble the gland cap, putting the bushing inside the spacer and into the cap.

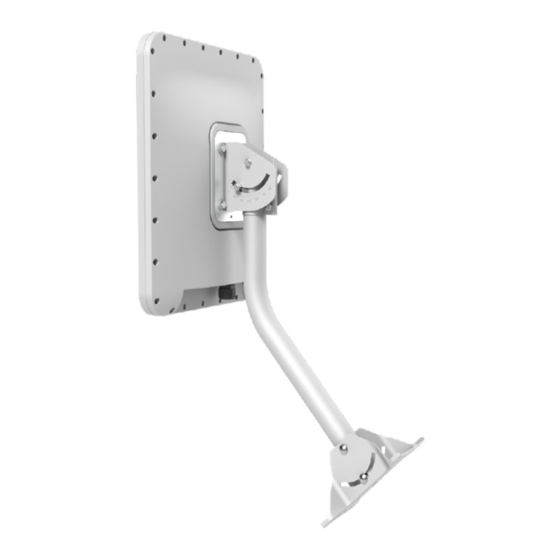

- Page 6 Installing the FW2000e Attaching the device to the device elevation bracket 1. Remove the installation handle from the device. 2. Attach a ground wire to the back of the device with the ground screw. M5 10mm ground screw / washer 3.
- Page 7 Installing the mount The mount is adjustable and can be mounted on vertical, horizontal, and slanted exterior surfaces. The mount is attached using the four roof mount lag screw in the corners of the base. Roof mount lag screw 1. Pre-drill holes in the surveyed location. 2.
- Page 8 2. Attach a RJ45 connector fitting and insert the cable into the Data & Power Out port on the PoE power injector. 3. Take a racheting socket wrench and device/ smartphone with the Inseego Mobile App to the FW2000e location. 4. Use the Inseego Mobile App and...
-
Page 9: Testing The Connection
Monitoring and managing your FW2000e You can use multiple options to monitor and manage your 5G Outdoor CPE: – Inseego Mobile App - Use the same mobile app you used to install your FW2000e to perform basic device monitoring and management. - Page 10 Support and more More information To access a User Guide, go to: www.inseego.com/support-documentation/ Customer service and troubleshooting Please contact your reseller. 14945404 © 2021 Inseego Corp. All Rights Reserved...
