Option #2: Pole Mount Installation

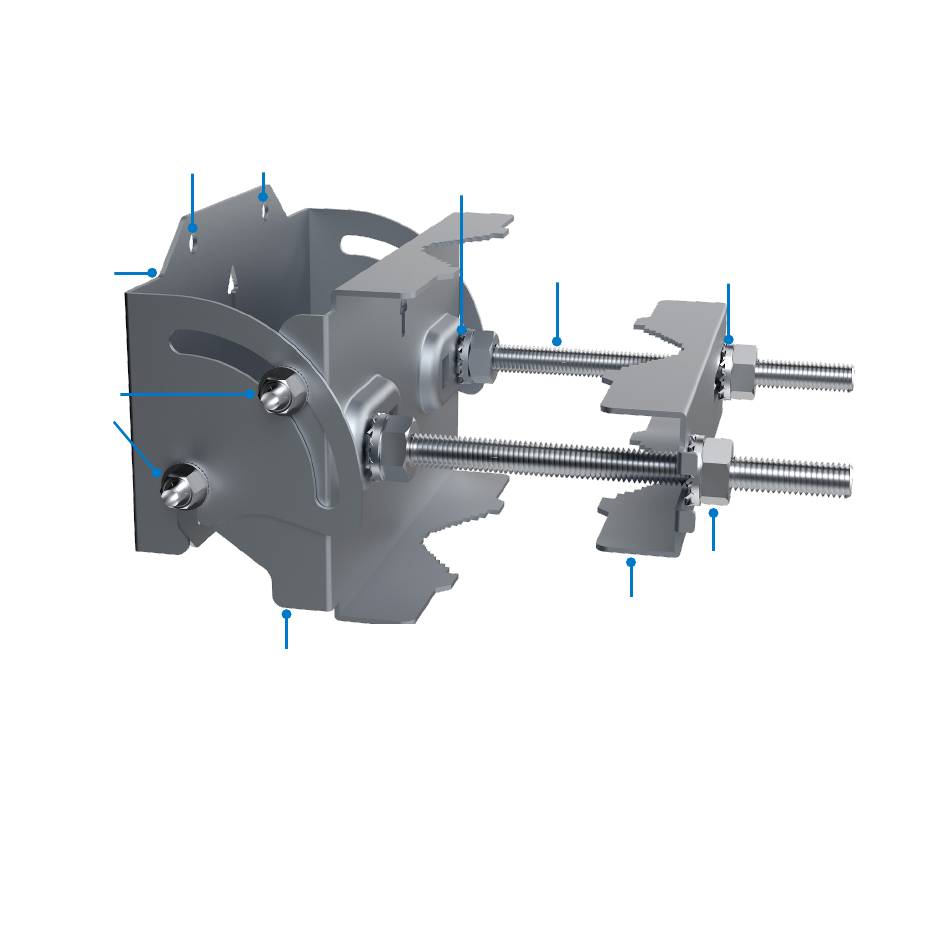

Holes for M6 21mm bracket mount
bolts and washers (4)
Zenith bracket
Hex flange head
bolts with PEM
nuts (4)
Assembling the pole mount bracket
1. Attach the azimuth bracket to the zenith bracket using the four hex flange head bolts and
PEM nuts.
2. Insert the M10 carriage bolts through the azimuth bracket and secure with external
locking washers, washers, and M10 hex nuts.
Azimuth bracket
External locking washer (4)
M10 carriage bolt (2)
U-bracket
Washer (4)
M10 hex nut (4)
10
