DEFINE TPDO:

By pressing the "Define TPDO" button from the main window of SW67461 (Fig. 2) the window "Define Transmit PDO" appears (Fig. 6).
This section is used to define the TPDO messages sent by the converter.

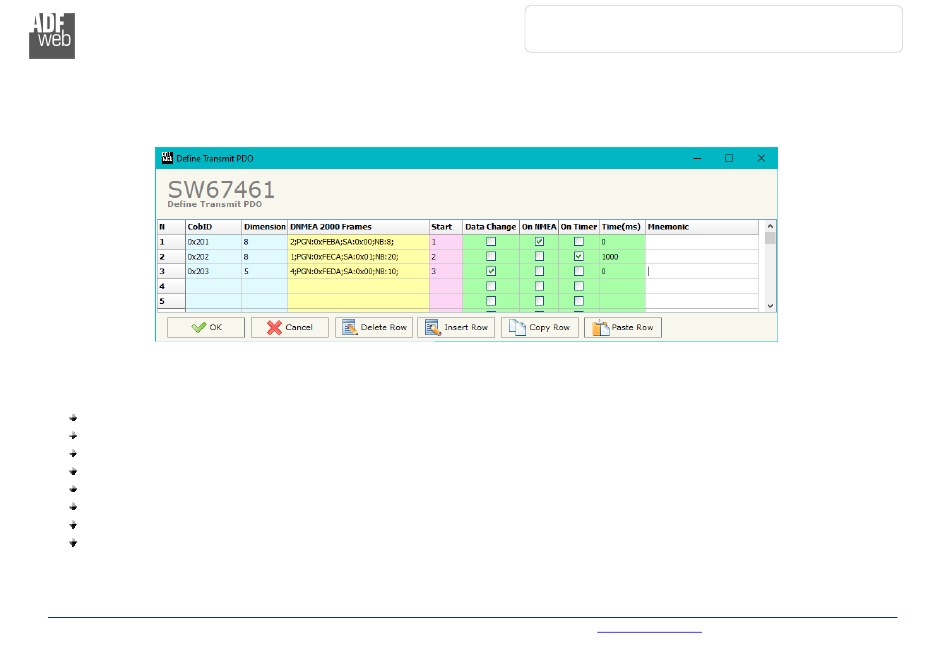

Figure 6: "Define Transmit PDO" window
The means of the fields of the table are:
In the field "CobID" the Cob-ID of the PDO is defined;
In the field "NMEA200
In the field "Start" the starting byte of the internal array from which taking the data to map into the TPDOs is defined;
If the field "Data Change" is checked, the TPDO frame is sent when the data into the linked NMEA2000 frame change;
If the field "On NMEA" is checked, the TPDO is transmitted when the NMEA2000 frame linked is received;
If the field "On Timer" is checked, the TPDO is sent cyclically;
In the field "Timer (ms)" the cyclic delay for the "On Timer" option is defined;
In the field "Mnemonic" the description for the frame is defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Frame" the NMEA2000 frame to link to the TPDO is defined;
