Industrial Electronic Devices

User Manual

Revision 1.002

English

PROFINET / J1939 – Converter

(Order Code: HD67446)

for Website information:

www.adfweb.com?Product=HD67446

for Price information:

www.adfweb.com?Price=HD67446

Benefits and Main Features:

Very easy to configure

Isolation between two buses

Temperature range: -40°C / +105°C (-40°F / +221°F)

User Manual

ADFweb.com Srl – IT31010 – Mareno – Treviso

User Manual PROFINET / J1939 - Converter

Document code: MN67446_ENG

Revision 1.002

For other Gateways / Bridges:

CAN from/to Modbus

Need help?

Do you have a question about the HD67446 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADF Web HD67446

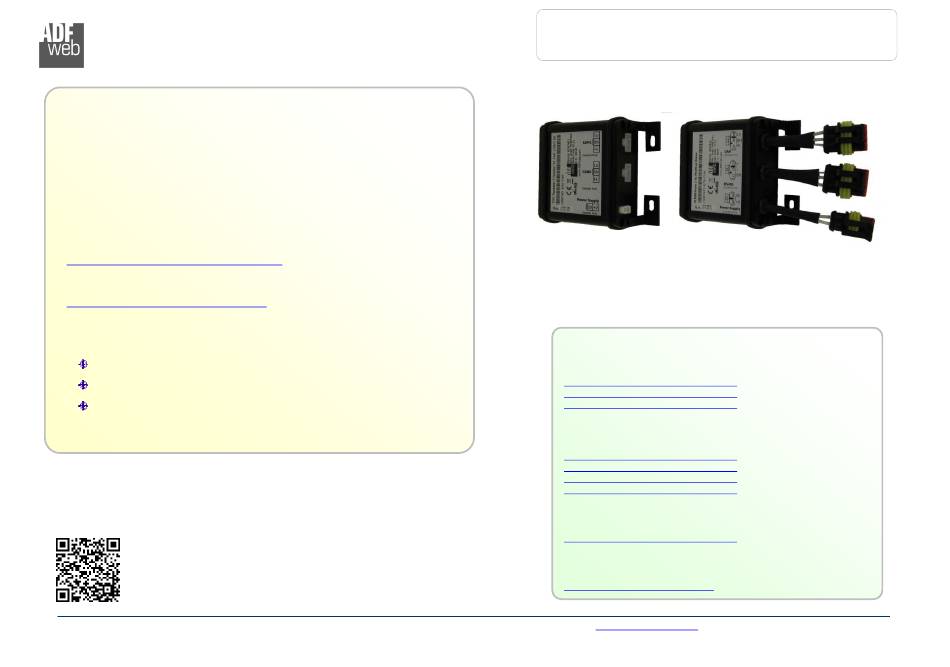

Page 1 Revision 1.002 Page 1 of 31 Industrial Electronic Devices User Manual Revision 1.002 English PROFINET / J1939 – Converter (Order Code: HD67446) for Website information: www.adfweb.com?Product=HD67446 for Price information: www.adfweb.com?Price=HD67446 Benefits and Main Features: For other Gateways / Bridges: CAN from/to Modbus...
Page 2: Table Of Contents
User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 2 of 31 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: Page INDEX Updated...
Page 3: Security Alert
User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 3 of 31 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.
Page 4: Example Of Connection
User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 4 of 31 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 5: Connection Scheme
User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 5 of 31 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67446-E4x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 6 User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 6 of 31 Industrial Electronic Devices Figure 1b: Connection scheme for HD67446-E7x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 7: Characteristics

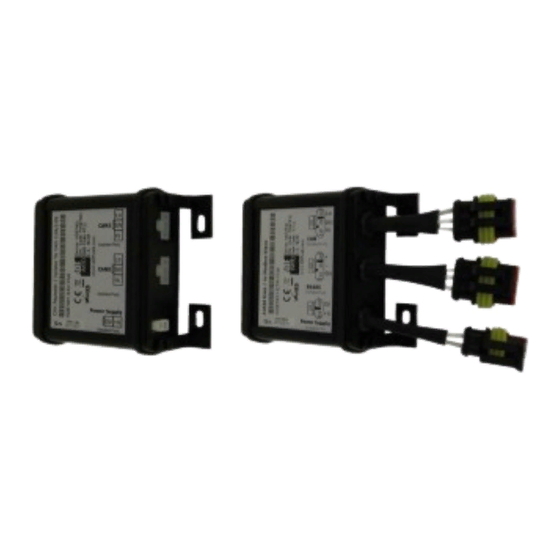

Industrial Electronic Devices CHARACTERISTICS: The “HD67446” series are rugged devices used to interface J1939 devices with a PROFINET Master. With his particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal, vertical, oblique).
Page 8: Power Supply
POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67446-Exx-xx Consumption at 24V DC: Device W/VA HD67446-Exx-xx Caution: Not reverse the polarity power HD67446-E4x-xx HD67446-E7x-xx Note: It is possible to use also negative tensions.
Page 9: Leds
User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 9 of 31 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...
Page 10: J1939
Industrial Electronic Devices J1939: The connection of the J1939 in the HD67446-E4x-xx device must be made with a 3way MiniFit Female connector. The pinout of Male MiniFit connector of the board is at right side of the page. The connection of the J1939 in the HD67446-E7x-xx device must be made with a AMP SuperSeal 1.5 Male connector.
Page 11: Profinet
PROFINET: The connection of PROFINET in the HD67446 device must be made with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable.
Page 12: Use Of Compositor Sw67446
User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 12 of 31 Industrial Electronic Devices USE OF COMPOSITOR SW67446: To configure the Converter, use the available software that runs with Windows called SW67446. It is downloadable on the site www.adfweb.com and its operation is described in this document.
Page 13: New Project / Open Project
User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 13 of 31 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “PROFINET / J1939 - Converter”...
Page 14: Software Options
User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 14 of 31 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
Page 15: Set Communication
User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 15 of 31 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, PROFINET and J1939. By Pressing the “Set Communication” button from the main window for SW67446 (Fig. 2) the window “Set Communication”...
Page 16: Receive Frames
User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 16 of 31 Industrial Electronic Devices RECEIVE FRAMES: By pressing the “Receive Frames” button from the main window for SW67446 (Fig. 2) the “Receive J1939 Frames” window appears (Fig. 4).
Page 17: Send Frames
User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 17 of 31 Industrial Electronic Devices SEND FRAMES: By pressing the “Send Frames” button from the main window for SW67446 (Fig. 2) the “Send J1939 frames” window appears (Fig. 5). The J1939 frames inserted in this table contains the Input data of PROFINET.
Page 18: Update Device
User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 18 of 31 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button it is possible to load the created Configuration into the device; and also the Firmware, if is necessary. If you don’t know the actual IP address of the device you have to use this procedure: Connect the USB cable;...
Page 19 Industrial Electronic Devices Note: When you install a new version of the software it is better if the first time you do the update of the Firmware in the HD67446. Note: When you receive the device, for the first time, you have to update also the Firmware in the HD67446 device.
Page 20: Mechanical Dimensions
User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 20 of 31 Industrial Electronic Devices MECHANICAL DIMENSIONS: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 21 User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 21 of 31 Industrial Electronic Devices Type A ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 22 User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 22 of 31 Industrial Electronic Devices Type B ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 23 User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 23 of 31 Industrial Electronic Devices Type C ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 24: Order Code
Page 24 of 31 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67446 – E y z – s f Fixing lugs A: Type A B: Type B C: Type C...
Page 25: Plc Configuration
User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 25 of 31 Industrial Electronic Devices PLC CONFIGURATION: The configuration and commissioning of the PROFINET Converter as described on the following pages was accomplished with the help of the TIA Portal V11-software by Siemens.
Page 26 “Devices and networks” button (1), from the right drop-down menu, under “Other field devices PROFINET IO Gateway ADFWEB.com HD67446” double click on “MBmaster” module (2). Note: If you have installed more than one GSD file, go to the Information section and in the “Version” field select the correct gsd file (3), before double clicking on “CAN”...
Page 27 Page 27 of 31 Industrial Electronic Devices 3) Connect the PLC to the HD67446 module by drawing the Ethernet wire between the two Ethernet ports. Then assign the IP Address defined in the Compositor_SW67446 to the HD67446. Then double click the “Module” (2).
Page 28 User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 28 of 31 Industrial Electronic Devices 4) Then doubleclivk on the “DNSLAVE” label and in the field name change it accordingly to the name defined in the Compositor_SW67446 (2).
Page 29 User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 29 of 31 Industrial Electronic Devices 5) Load the configuration into the PLC. ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 30: Disclaimer
User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 30 of 31 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
Page 31: Warranties And Technical Support
User Manual PROFINET / J1939 - Converter Document code: MN67446_ENG Revision 1.002 Page 31 of 31 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
