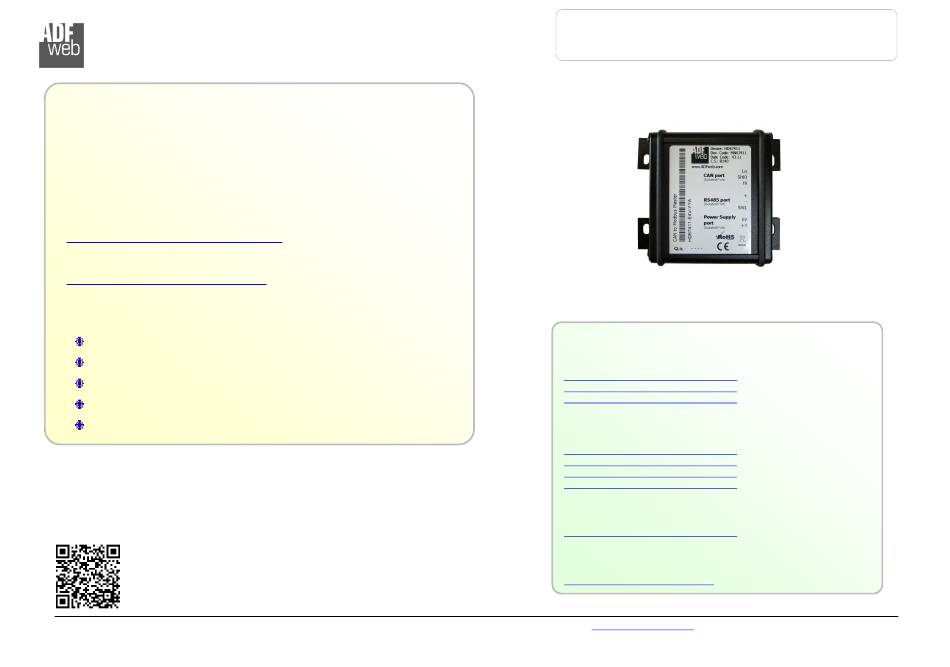

Industrial Electronic Devices

User Manual

Revision 1.000

English

SNMP Manager / CANopen – Converter

(Order Code: HD67450)

For Website information:

www.adfweb.com?Product=HD67450

For Price information:

www.adfweb.com?Price=HD67450

Benefits and Main Features:

Very easy to configure

Wide supply input range

Electrical isolation

Industrial temperature range:

-40°C / 105°C (-40°F / 221°F)

User Manual

ADFweb.com Srl – IT31010 – Mareno – Treviso

User Manual SNMP Manager / CANopen

Document code: MN67450_ENG

For other Gateways / Bridges:

CAN from/to Modbus

Need help?

Do you have a question about the HD67450 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADF Web HD67450

Page 1 Revision 1.000 Page 1 of 33 Industrial Electronic Devices User Manual Revision 1.000 English SNMP Manager / CANopen – Converter (Order Code: HD67450) For Website information: www.adfweb.com?Product=HD67450 For Price information: www.adfweb.com?Price=HD67450 Benefits and Main Features: For other Gateways / Bridges:...
Page 2: Updated Documentation
User Manual SNMP Manager / CANopen Document code: MN67450_ENG Revision 1.000 Page 2 of 33 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated...
Page 3: Security Alert
User Manual SNMP Manager / CANopen Document code: MN67450_ENG Revision 1.000 Page 3 of 33 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.
Page 4: Example Of Connection
User Manual SNMP Manager / CANopen Document code: MN67450_ENG Revision 1.000 Page 4 of 33 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 5: Connection Scheme
User Manual SNMP Manager / CANopen Document code: MN67450_ENG Revision 1.000 Page 5 of 33 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67450-E4x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 6 User Manual SNMP Manager / CANopen Document code: MN67450_ENG Revision 1.000 Page 6 of 33 Industrial Electronic Devices Figure 1b: Connection scheme for HD67450-E7x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 7 Industrial Electronic Devices CHARACTERISTICS: The “HD67450” series are rugged devices used to interface CANopen devices with SNMP Agents. With his particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal, vertical, oblique).
Page 8: Power Supply
POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67450-Exx-xx Consumption at 24V DC: Device W/VA HD67450-Exx-xx Caution: Not reverse the polarity power HD67450-E4x-xx HD67450-E7x-xx ADFweb.com Srl –...
Page 9 User Manual SNMP Manager / CANopen Document code: MN67450_ENG Revision 1.000 Page 9 of 33 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...
Page 10 Page 10 of 33 Industrial Electronic Devices CAN: The connection of the CANopen in the HD67450-E4x-xx device must be made with a 3way MiniFit Female connector. The pinout of Male MiniFit connector of the board is at right side of the page.
Page 11 ETHERNET: The connection of Ethernet in the HD67450 device must be made with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable.
Page 12 User Manual SNMP Manager / CANopen Document code: MN67450_ENG Revision 1.000 Page 12 of 33 Industrial Electronic Devices USE OF COMPOSITOR SW67450: To configure the Converter, use the available software that runs with Windows called SW67450. It is downloadable on the site www.adfweb.com and its operation is described in this document.
Page 13: New Configuration / Open Configuration
User Manual SNMP Manager / CANopen Document code: MN67450_ENG Revision 1.000 Page 13 of 33 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “SNMP Manager / CANopen - Converter”...
Page 14: Software Options
User Manual SNMP Manager / CANopen Document code: MN67450_ENG Revision 1.000 Page 14 of 33 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
Page 15 User Manual SNMP Manager / CANopen Document code: MN67450_ENG Revision 1.000 Page 15 of 33 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
Page 16: Set Communication
User Manual SNMP Manager / CANopen Document code: MN67450_ENG Revision 1.000 Page 16 of 33 Industrial Electronic Devices SET COMMUNICATION: This section defines the fundamental communication parameters of two Buses, CANopen and SNMP. By pressing the “Set Communication” button from the main window for SW67450 (Fig. 2) the window “Set communication”...
Page 17: Snmp Manager
User Manual SNMP Manager / CANopen Document code: MN67450_ENG Revision 1.000 Page 17 of 33 Industrial Electronic Devices SNMP MANAGER: By Pressing the “SNMP Manager” button from the main window for SW67450 (Fig. 2) the window “Set SNMP Manager Access” appears (Fig.
Page 18 User Manual SNMP Manager / CANopen Document code: MN67450_ENG Revision 1.000 Page 18 of 33 Industrial Electronic Devices If SNMP version is set to ‘3’, the following fields must be set: In the field “User” the user for the SNMP authentication is defined; In the field “Auth Pass”...
Page 19 User Manual SNMP Manager / CANopen Document code: MN67450_ENG Revision 1.000 Page 19 of 33 Industrial Electronic Devices SET SDO SERVER: By pressing the “Set SDO Server” button from the main window for SW67450 (Fig. 2) the window “Set SDO Server Access” appears (Fig.5). This window is made to create the SDO in read or write in the CANopen side and to indicate which byte are associated to these SDOs.
Page 20 6b). With the SDO Client the HD67450 can read and/or write the data from/to others devices connected in the CANopen network. It is divided in two parts, the " SDO Read" and the "SDO Write". The first part is used to read, using the SDO, the data in another device and then put this data in the SNMP array.
Page 21 User Manual SNMP Manager / CANopen Document code: MN67450_ENG Revision 1.000 Page 21 of 33 Industrial Electronic Devices The meaning of the columns in the “SDO Write” are: In the field "Device ID" the ID of the device to write is defined; In the field "Index"...
Page 22 User Manual SNMP Manager / CANopen Document code: MN67450_ENG Revision 1.000 Page 22 of 33 Industrial Electronic Devices SET PDO ACCESS: By pressing the “Set PDO Access” button from the main window for SW67450 (Fig. 2) the window “Set PDO Access” appears (Fig. 7a and 7b).
Page 23 User Manual CAN / Modbus TCP Slave Document code: MN67425_ENG Revision 1.100 Page 23 of 33 Industrial Electronic Devices The meaning of the columns in the “Transmit PDO” are: In the field "Cob-ID" the COB-ID for the PDO is defined; In the Field "Dimension"...
Page 24: Update Device
User Manual CAN / Modbus TCP Slave Document code: MN67425_ENG Revision 1.100 Page 24 of 33 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. If you don’t know the actual IP address of the device you have to use this procedure: Turn OFF the Device;...
Page 25 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67450 device. Warning: If Fig. 9 appears when you try to do the Update try these points before seeking assistance: Check if the serial COM port selected is the correct one;...
Page 26: Mechanical Dimensions
User Manual CAN / Modbus TCP Slave Document code: MN67425_ENG Revision 1.100 Page 26 of 33 Industrial Electronic Devices MECHANICAL DIMENSIONS: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 27 User Manual CAN / Modbus TCP Slave Document code: MN67425_ENG Revision 1.100 Page 27 of 33 Industrial Electronic Devices Type A ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 28 User Manual CAN / Modbus TCP Slave Document code: MN67425_ENG Revision 1.100 Page 28 of 33 Industrial Electronic Devices Type B ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 29 User Manual CAN / Modbus TCP Slave Document code: MN67425_ENG Revision 1.100 Page 29 of 33 Industrial Electronic Devices Type C ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 30: Ordering Informations
Page 30 of 33 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67450 – E y z – s f Fixing lugs A: Type A B: Type B C: Type C...
Page 31 User Manual CAN / Modbus TCP Slave Document code: MN67425_ENG Revision 1.100 Page 31 of 33 Industrial Electronic Devices ACCESSORIES: Order Code: AC34011 Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 Rail DIN - Power Supply 220/240V AC 50/60Hz – 24 V DC Order Code: AC67402 Cable Super Seal 1.5 MALE 2-pole - 1.0 Meter Order Code: AC67402-3 -...
Page 32: Other Regulations And Standards
User Manual CAN / Modbus TCP Slave Document code: MN67425_ENG Revision 1.100 Page 32 of 33 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
Page 33: Warranties And Technical Support
User Manual CAN / Modbus TCP Slave Document code: MN67425_ENG Revision 1.100 Page 33 of 33 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
