ADF Web AXIS HD674-A004 User Manual

Ethernet/ip / modbus master – converter

Hide thumbs

Table Of Contents

Quick Links

Download this manual

Industrial Electronic Devices

User Manual

Revision 1.001

English

EtherNet/IP / Modbus Master – Converter

(Order Code: HD674-A004)

For Website information:

www.adfweb.com?Product=HD674-A004

For Price information:

www.adfweb.com?Price=HD674-A004

Benefits and Main Features:

Very easy to configure

Wide supply input range

Electrical isolation

Industrial temperature range:

-40°C / 105°C (-40°F / 221°F)

User Manual

ADFweb.com Srl – IT31010 – Mareno – Treviso

Axis Solutions Pvt Ltd is the Authorized Distributor of

www.axisindia.in | info@axisindia.in

User Manual EtherNet/IP / Modbus Master

Document code: MN674-A004_ENG

Page 1 of 39

For others Gateways / Bridges:

J1939 to Modbus

Need help?

Do you have a question about the AXIS HD674-A004 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADF Web AXIS HD674-A004

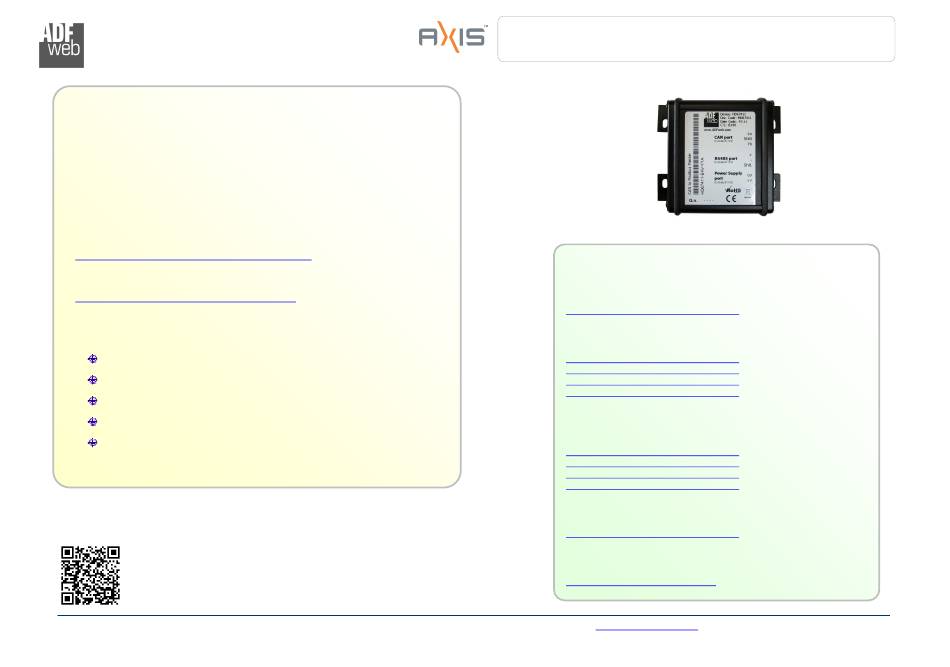

Page 1 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 1 of 39 Page 1 of 39 Industrial Electronic Devices User Manual Revision 1.001 English EtherNet/IP / Modbus Master – Converter (Order Code: HD674-A004) For Website information: www.adfweb.com?Product=HD674-A004 For others Gateways / Bridges: For Price information: J1939 to Modbus...
Page 2: Updated Documentation
User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 2 of 39 Page 2 of 39 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated...
Page 3: Security Alert
User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 3 of 39 Page 3 of 39 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.
Page 4: Example Of Connection
User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 4 of 39 Page 4 of 39 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 5: Connection Scheme
User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 5 of 39 Page 5 of 39 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD674-A004-2-E4x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 6 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 6 of 39 Page 6 of 39 Industrial Electronic Devices Figure 1b: Connection scheme for HD674-A004-2-E7x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 7 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 7 of 39 Page 7 of 39 Industrial Electronic Devices Figure 1c: Connection scheme for HD674-A004-4-E4x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 8 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 8 of 39 Page 8 of 39 Industrial Electronic Devices Figure 1d: Connection scheme for HD674-A004-4-E7x-xx ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 9 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 9 of 39 Page 9 of 39 Industrial Electronic Devices CHARACTERISTICS: The “HD674-A004” series are rugged devices used to interface Modbus devices with EtherNet/IP network. With its particular enclosure, equipped with four fixing lugs, makes available the mounting of the device in any plane surface (horizontal, vertical, oblique).
Page 10: Power Supply
User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 10 of 39 Page 10 of 39 Industrial Electronic Devices POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below.
Page 11 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 11 of 39 Page 11 of 39 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...
Page 12 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 12 of 39 Page 12 of 39 Industrial Electronic Devices RS232: The connection of the RS232 in the HD674-A004-2-E4x-xx device must be made with a 3way MiniFit Female connector. The pinout of Male MiniFit connector of the board is at right side of the page.
Page 13 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 13 of 39 Page 13 of 39 Industrial Electronic Devices RS485: The connection of the RS485 in the HD674-A004-4-E4x-xx device must be made with a 3way MiniFit Female connector. The pinout of Male MiniFit connector of the board is at right side of the page. The connection of the RS485 in the HD67-A004-4-E7x-xx device must be made with a AMP SuperSeal 1.5 Male connector.
Page 14 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 14 of 39 Page 14 of 39 Industrial Electronic Devices ETHERNET: The connection of Ethernet in the HD674-A004 device must be made with at least a Category 5E cable. The maximum length of the cable should not exceed 100m.
Page 15 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 15 of 39 Page 15 of 39 Industrial Electronic Devices USE OF COMPOSITOR SW674-A004: To configure the Converter, use the available software that runs with Windows called SW674-A004. It is downloadable on the site www.adfweb.com and its operation is described in this document.
Page 16: New Configuration / Open Configuration
User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 16 of 39 Page 16 of 39 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “EtherNet/IP / Modbus Master - Converter”...
Page 17: Software Options
User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 17 of 39 Page 17 of 39 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
Page 18 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 18 of 39 Page 18 of 39 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
Page 19: Set Communication
User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 19 of 39 Page 19 of 39 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, Modbus and EtherNet/IP. By Pressing the “Set Communication”...
Page 20: Set Access
User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 20 of 39 Page 20 of 39 Industrial Electronic Devices SET ACCESS: By pressing the “Set Access” button from the main window for SW674-A004 (Fig. 2) the window “Set Access” appears. This window is divided in two parts, the "Modbus Read"...
Page 21 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 21 of 39 Page 21 of 39 Industrial Electronic Devices ODBUS RITE The means of the fields are: In the field “Slave ID” the address of the Modbus device to write is defined; In the field “Type”...
Page 22: Update Device
User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 22 of 39 Page 22 of 39 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device;...
Page 23 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 23 of 39 Page 23 of 39 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD674-A004 device. Warning: If Fig.
Page 24 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 24 of 39 Page 24 of 39 Industrial Electronic Devices MODBUS DIAGNOSTIC OVER ETHERNET/IP: It is possible to save the Modbus Diagnostic on EtherNet/IP array using the field “Diagnostic” of the section “Set Communication”. In this case, the status of each Modbus request defined in the section “Set Access”...
Page 25: Advanced Functions
User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 25 of 39 Page 25 of 39 Industrial Electronic Devices ADVANCED FUNCTIONS: In the HD674-A004 are implemented some advanced commands that allow to check the functioning of the converter and send some Modbus commands directly from Ethernet side.
Page 26 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 26 of 39 Page 26 of 39 Industrial Electronic Devices (B2) RROR UMBER Figure 8: “Advanced Functions Error Poll Number” window These section of the software allows to read number of errors received (timeout or exception) for each Modbus request defined. ADFweb.com Srl –...
Page 27 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 27 of 39 Page 27 of 39 Industrial Electronic Devices (B3/B4) RANSPARENT Figure 9: “Advanced Functions Transparent Mode” window These section of the software allows to enable/disable the Transparent Mode of the converter. This Mode is used to send/received some serial messages directly from UDP messages.
Page 28 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 28 of 39 Page 28 of 39 Industrial Electronic Devices (B5/B6) THER OMMANDS Figure 10: “Advanced Functions Other Commands” window These section of the software allows to enable/disable the Modbus polling for a specific slave (ID) and/or a single poll of the Modbus tables defined in the section “Set Access”...
Page 29: Plc Configuration
User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 29 of 39 Page 29 of 39 Industrial Electronic Devices PLC CONFIGURATION: The configuration and commissioning of the EtherNet/IP Converter as described on the following pages was accomplished with the help of the “RSLogix 5000”...
Page 30 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 30 of 39 Page 30 of 39 Industrial Electronic Devices 2) Edit the settings of the new Generic Ethernet Module. As shown in the screen shot below, the module was named “HD674-A004” and the IP-address assigned is 192.168.0.5.
Page 31 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 31 of 39 Page 31 of 39 Industrial Electronic Devices 4) After the configuration is completed, the controller tags are created. ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 32 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 32 of 39 Page 32 of 39 Industrial Electronic Devices 5) With “RSLinks Classic Lite”, after have done a network scan (RSWho), and finding the EtherNet/IP device, it is possible to load the EDS file for the device in order to have the “Module Info”...
Page 33: Mechanical Dimensions
User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 33 of 39 Page 33 of 39 Industrial Electronic Devices MECHANICAL DIMENSIONS: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 34 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 34 of 39 Page 34 of 39 Industrial Electronic Devices Type A ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 35 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 35 of 39 Page 35 of 39 Industrial Electronic Devices Type B ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 36 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 36 of 39 Page 36 of 39 Industrial Electronic Devices Type C ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 37: Ordering Informations
User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 37 of 39 Page 37 of 39 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD674-A004 – E y z – s f Fixing lugs A: Type A B: Type B...
Page 38 User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 38 of 39 Page 38 of 39 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
Page 39: Warranties And Technical Support
User Manual EtherNet/IP / Modbus Master Document code: MN674-A004_ENG Revision 1.001 Page 39 of 39 Page 39 of 39 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
