ID5000 Series Smart Code Reader
Chapter 1 Appearance

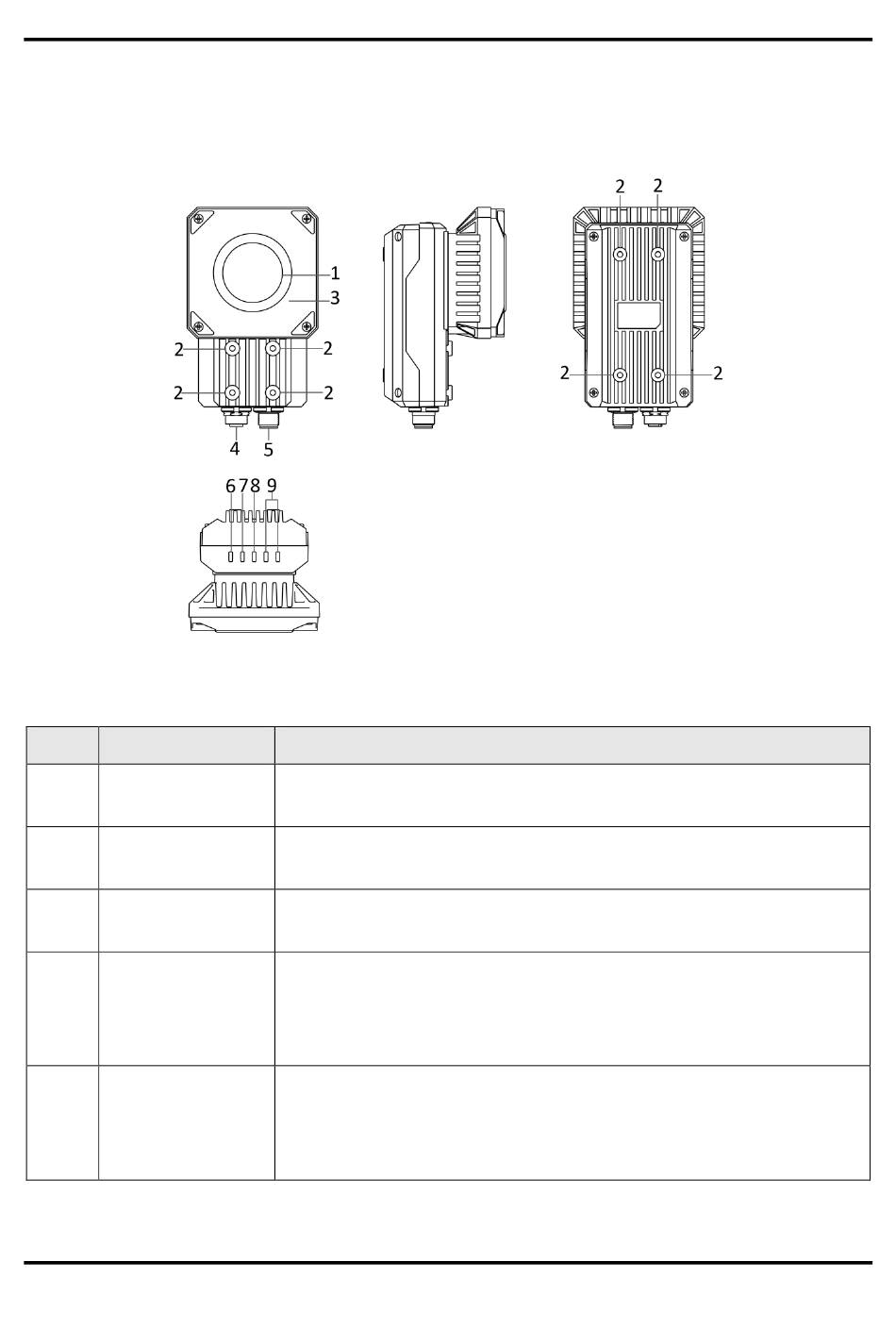

Figure 1-1 Appearance
Table 1-1 Description
It can be replaced with other lens cap. Polarization lens cap is
optional.
It is used to fix the device to installation position. It is
recommended to use M4 screw.
The device has 8 LED lamps providing light. Red or blue lamp is
optional.
It refers to gigabit Ethernet interface for transmitting data. The
interface is designed with screw threads to tighten connection
between the device and cable, and thus avoiding influence caused
by vibration.
It provides power, input/output, and serial port signal. The
interface is designed with screw threads to tighten connection
between the device and cable, and thus avoiding influence caused
by vibration.
Description
