ID5000 Series Smart Code Reader
Set Trigger Delay, Udp Trigger Port, and Udp Start Trigger Text according to actual demands.

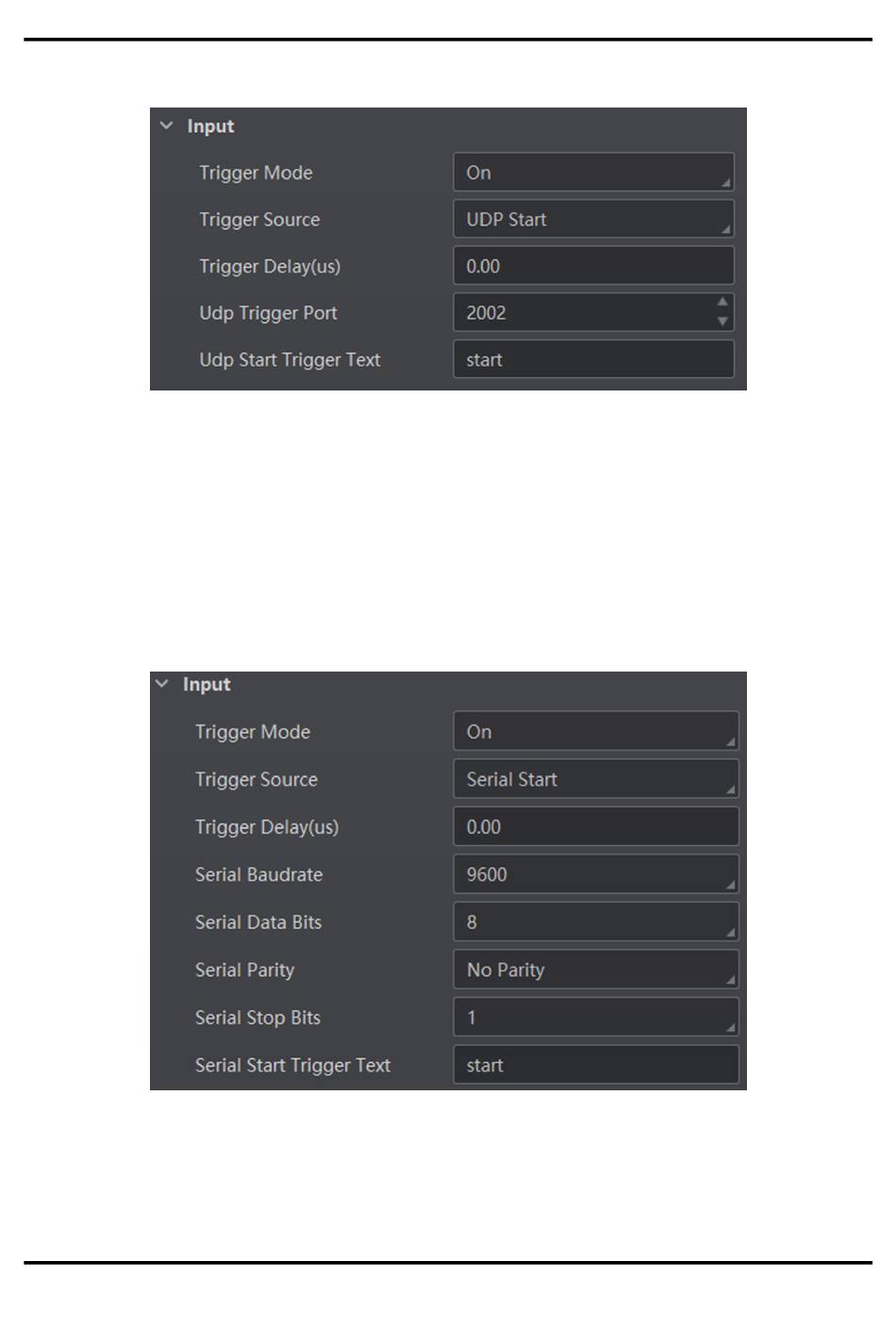

Figure 7-17 Set and Execute UDP Trigger Mode
Set and Execute Serial Port Trigger Mode
Serial start specifies the serial port as the source for the trigger signal. When the serial port
receives the specified string text, the trigger signal will be outputted.
Click I/O Control Settings → Input → Trigger Mode, select On as Trigger Mode and select Serial
Start as Trigger Source.
Set Trigger Delay, Serial Baudrate, Serial Data Bits, Serial Parity, Serial Stop Bits, and Serial Start
Trigger Text according to actual demands.
Figure 7-18 Set and Execute Serial Port Trigger Mode
35
