Chapter 2 Interface and Indicator

2.1 12-Pin Interface

Read the following section to get definitions of 12-pin interface.
No. Signal
1 DC-PWR
2 GND
3 OPTO_OUT0
4 OPTO_OUT1
5 OPTO_OUT2
6 OUT_COM
7 OPTO_IN0
8 OPTO_IN1
9 OPTO_IN2
10 IN_COM
11 RS232_R
12 RS232_T
ID5000 Series Smart Code Reader

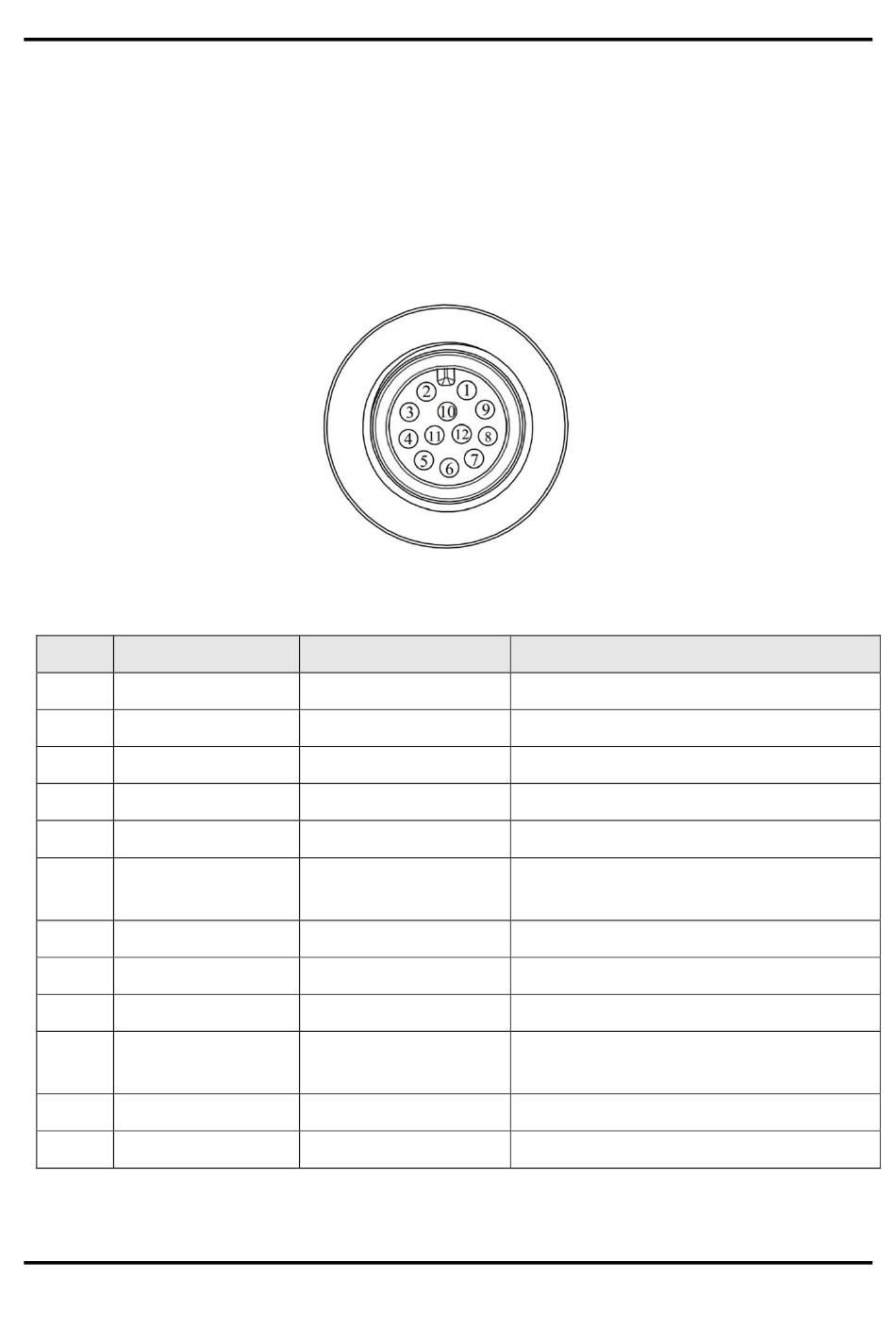

Figure 2-1 12-Pin Interface
Table 2-1 Pin Definitions
I/O Signal Source
--
--
LineOut0 signal line
LineOut1 signal line
LineOut2 signal line
LineOut0/1/2 signal
ground
LineIn0 signal line
LineIn1 signal line
LineIn2 signal line
LineIn0/1/2 signal
ground
--
--
3
Description
Direct current power supply positive
Power supply ground
Opto-isolated output 0
Opto-isolated output 1
Opto-isolated output 2
Common-ended output
Opto-isolated input 0
Opto-isolated input 1
Opto-isolated input 2
Common-ended input
RS232 serial port input
RS232 serial port output
