7.5.4 Stop Trigger

Stop trigger settings configure the source and condition to stop trigger. You can stop device trigger
via TCP, UDP, I/O and serial port.
TCP Stop Trigger
When the TCP server receives the specified string text, the trigger will be stopped.
Click I/O Control Settings → Stop Trigger, enable Tcp Stop Trigger Enable, set Tcp Trigger Port and
Tcp Stop Trigger Text according to actual demands.

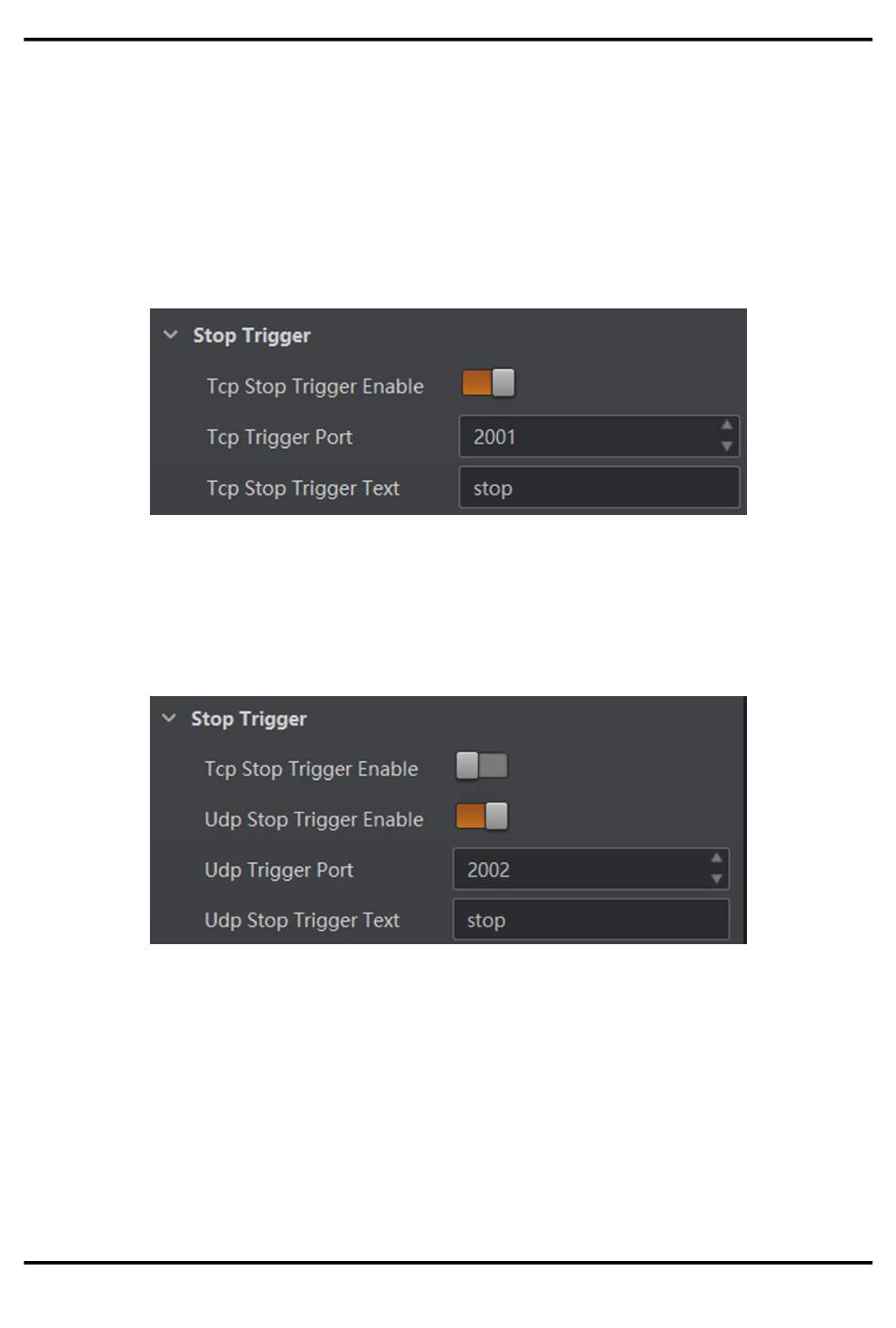

Figure 7-19 TCP Stop Trigger
UDP Stop Trigger
When the UDP server receives the specified string text, the trigger will be stopped.
Click I/O Control Settings → Stop Trigger, enable Udp Stop Trigger Enable, set Udp Trigger Port
and Udp Stop Trigger Text according to actual demands.
Figure 7-20 UDP Stop Trigger
IO Stop Trigger
You can select the physical line or software from IO Stop Trigger Selector as the source to stop
trigger, and set the Rising Edge or Falling Edge as the condition to stop trigger.
Click I/O Control Settings → Stop Trigger, enable IO Stop Trigger Enable, and set LineIn 0, LineIn
1, LineIn 2 or SoftwareTriggerEnd as IO Stop Trigger Selector.
You can set Rising Edge or Falling Edge as Stop Trigger In Polarity to stop trigger when selecting
physical line as IO Stop Trigger Selector.
