Note
You should refer to the table above and the label attached to the power and I/O cable to wire the
device.
The device supports RS-232 serial port output, and you can set serial port parameters in client
software. The solution result will be transmitted to the PC via the serial port.

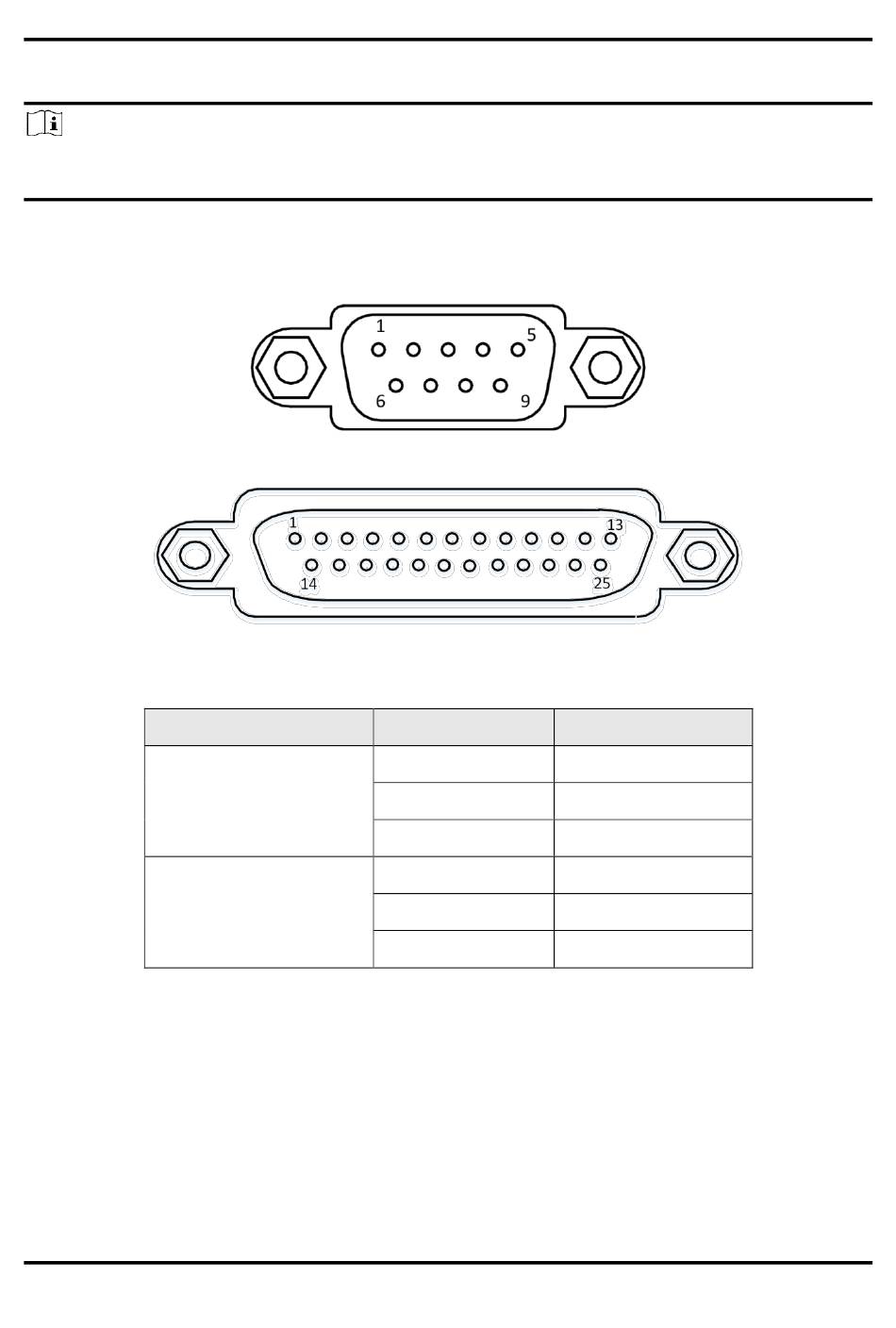

Serial Port Type
9-Pin Interface
25-Pin Interface
ID5000 Series Smart Code Reader
Figure 2-2 9-Pin Interface
Figure 2-3 25-Pin Interface
Table 2-2 RS-232 Interface Description
Pin No.
2
3
5
2
3
7
4
Name
RX
TX
GND
TX
RX
GND
