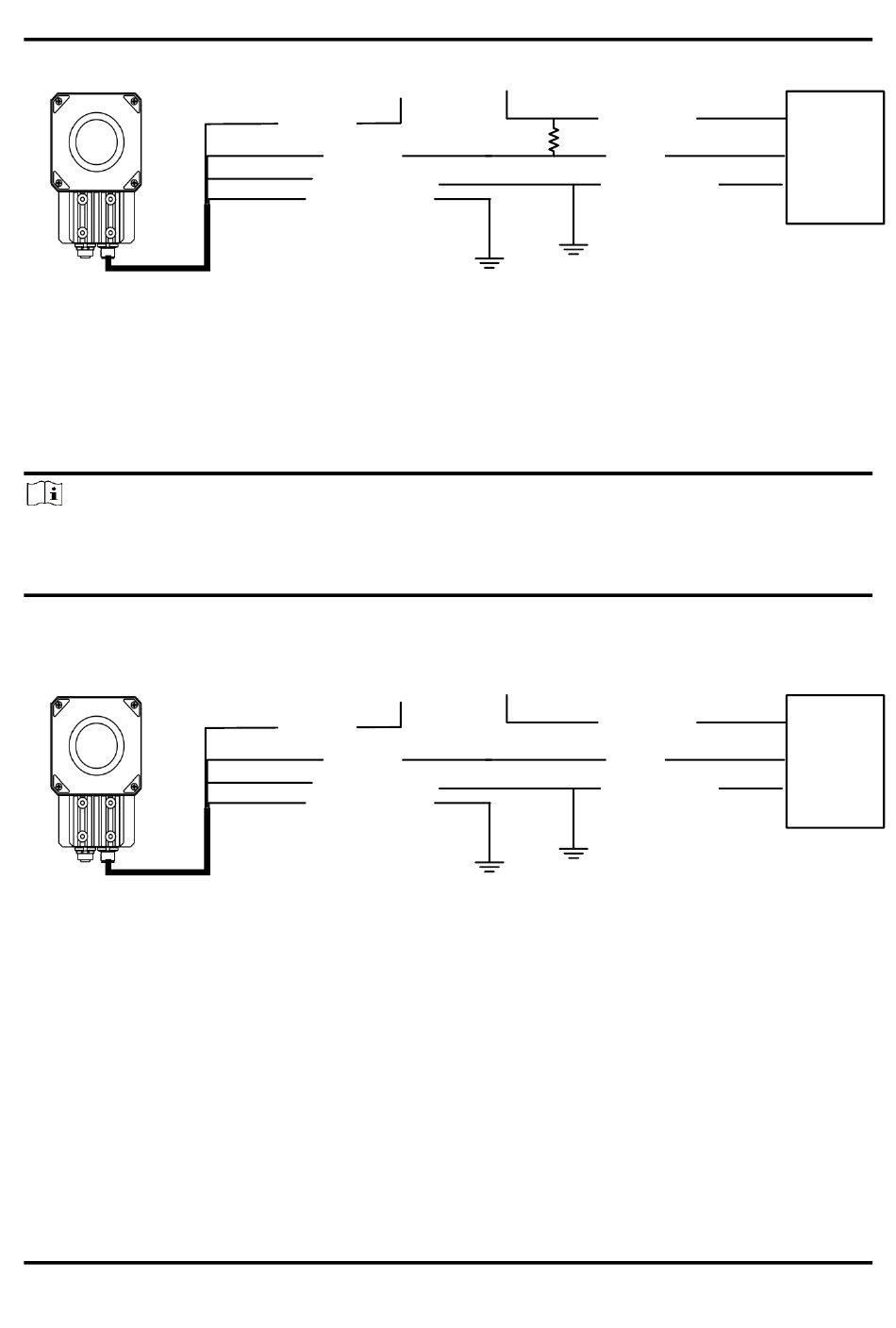

Figure 3-5 Input Signal Connecting to NPN Device with Pull-Up Resistor

3.4 Output Signal Wiring

The device can output signal to external device via I/O interface, and here we take LineOut 0 as an
example to introduce output signal wiring.
Note
● Output signal wiring may differ with different types of external devices.
● The voltage of VCC should not higher than that of PWR. Otherwise, the device's output signal
may have exception.
PNP Device
NPN Device
If the VCC of NPN device is 12 VDC or 24 VDC and pull-up resistor is not used, its wiring is as
follows.
ID5000 Series Smart Code Reader
PWR
Device Power
Opto-Isolated
Input
Input Signal Ground
Device Power Ground
GND of PWR
PWR
Device Power
Opto-Isolated
Output
Output Signal Ground
Device Power Ground
GND of PWR
Figure 3-6 Output Signal Connecting to PNP Device
VCC
NPN Device Power
Signal Line
NPN Power Ground
GND of VCC
VCC
PNP Device Power
Signal Line
PNP Power Ground
GND of VCC
8
NPN
Device
PNP
Device
