Ftp File Name Contain Barcode Number Enable
If this parameter is enabled, the name of the file uploaded to FTP server will contain the
number of the barcode.
Ftp File Name Contain FtpTimeStamp Type
It selects a format type from the drop-down list for the time stamp contained in the file name.
Take YYYYMMDD_HHMMSSFFF as an example, (from the left to the right) YYYY represents year,
MM represents month, DD represents date, HH represents hour, MM represents minute, SS
represents second, and FFF represents millisecond.
HTTP Data Processing
When the communication protocol is HTTP, you need to set following parameter in the Data
Processing.
NoRead Image Index
It sets the specific image that is outputted when no barcode information is read. For example, if
you set this parameter as 5, and the 5th image will be output.
TCP Server Data Processing
When the communication protocol is TCP Server, you need to set following parameters in the
ID5000 Series Smart Code Reader

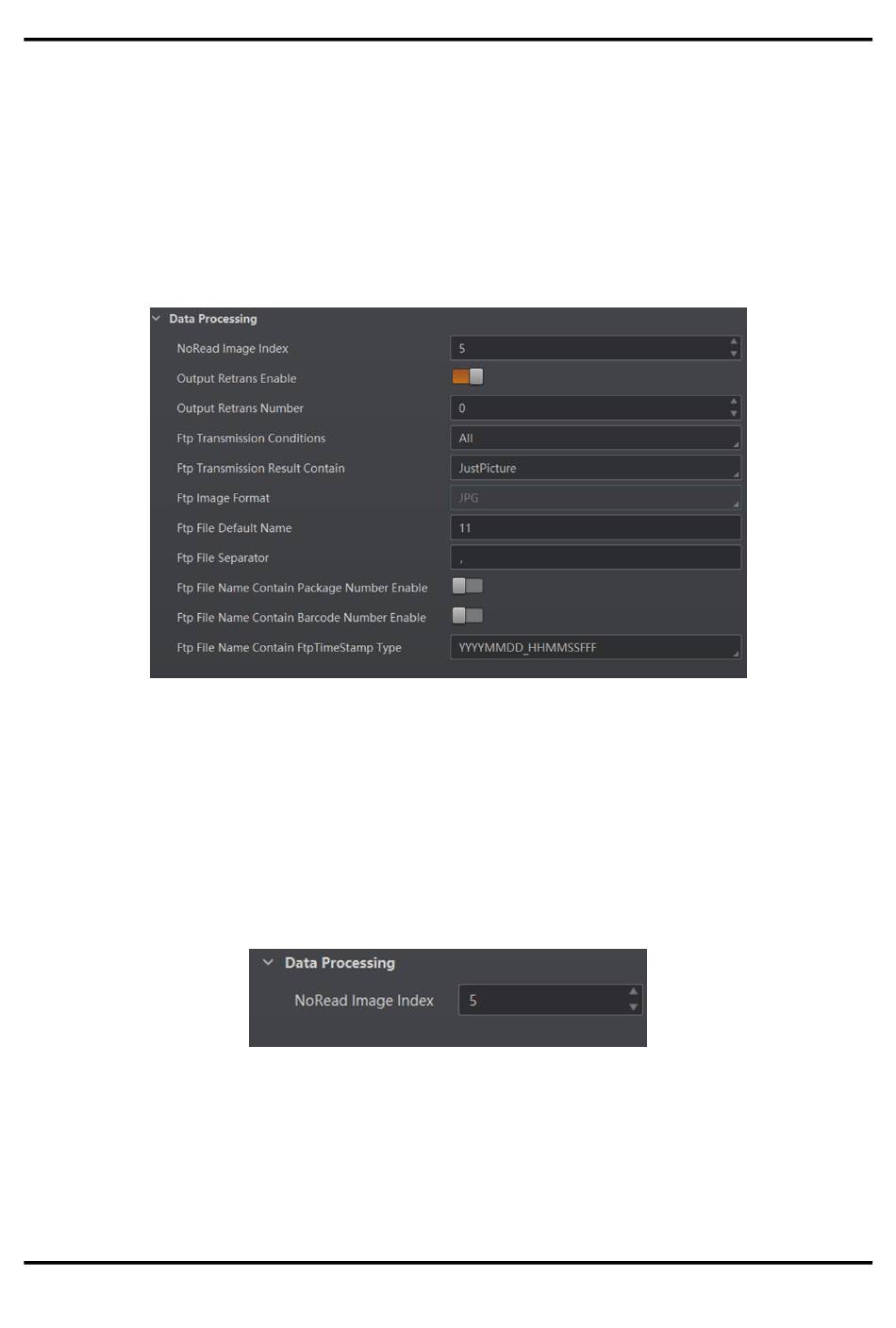

Figure 7-40 FTP Data Processing
Figure 7-41 HTTP Data Processing
