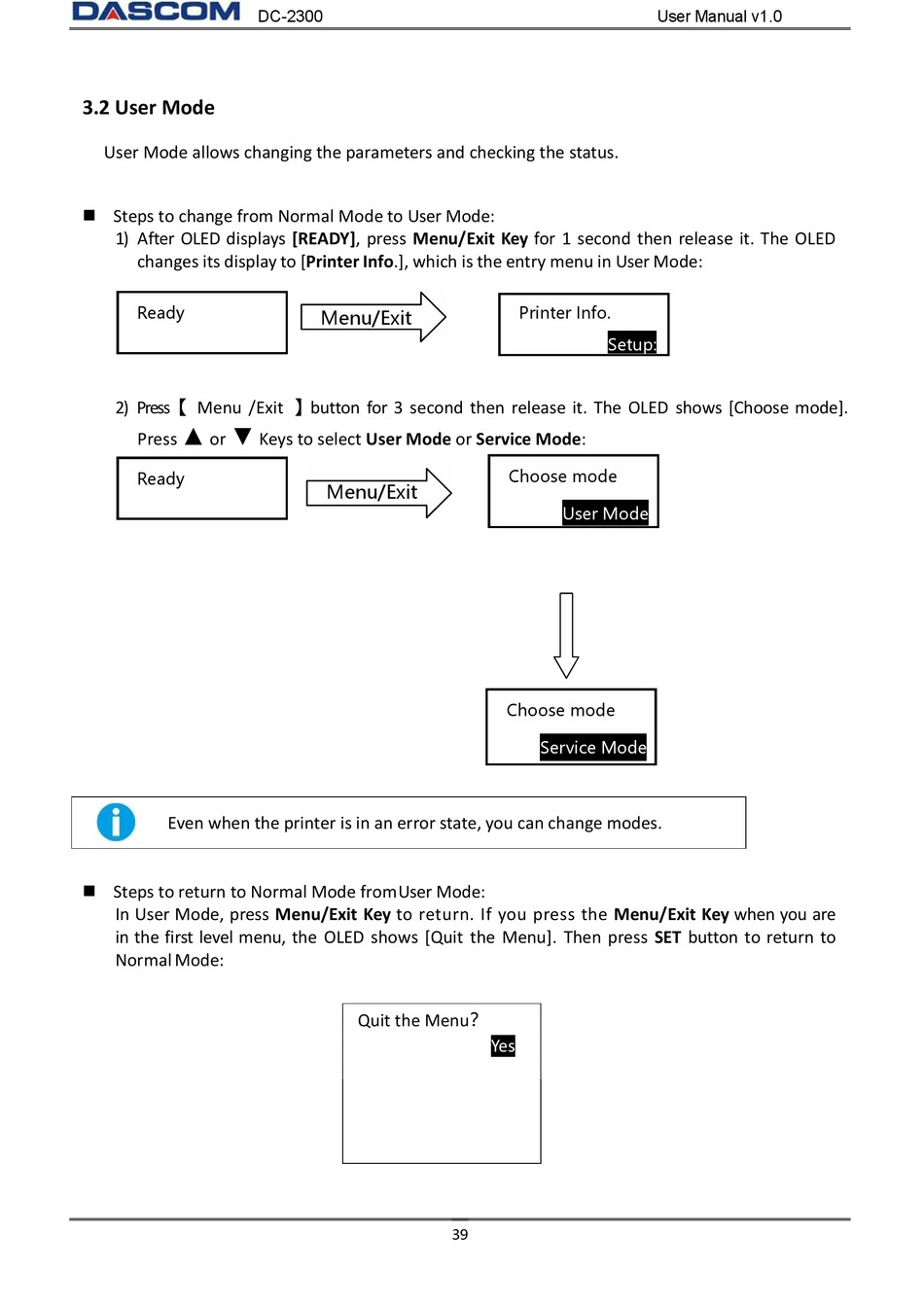

3.2 User Mode

User Mode allows changing the parameters and checking the status.
 Steps to change from Normal Mode to User Mode:
1) After OLED displays [READY], press Menu/Exit Key for 1 second then release it. The OLED
changes its display to [Printer Info.], which is the entry menu in User Mode:
Ready
2) Press【 Menu /Exit 】 button for 3 second then release it. The OLED shows [Choose mode].
▲ ▼
Press or
Ready
Even when the printer is in an error state, you can change modes.
 Steps to return to Normal Mode from User Mode:
In User Mode, press Menu/Exit Key to return. If you press the Menu/Exit Key when you are
in the first level menu, the OLED shows [Quit the Menu]. Then press SET button to return to
Normal Mode:
DC-2300
Menu/Exit
Keys to select User Mode or Service Mode:
Menu/Exit
Quit the Menu？
Printer Info.
Setup:
Choose mode
User Mode
Choose mode
Service Mode
Yes
39
