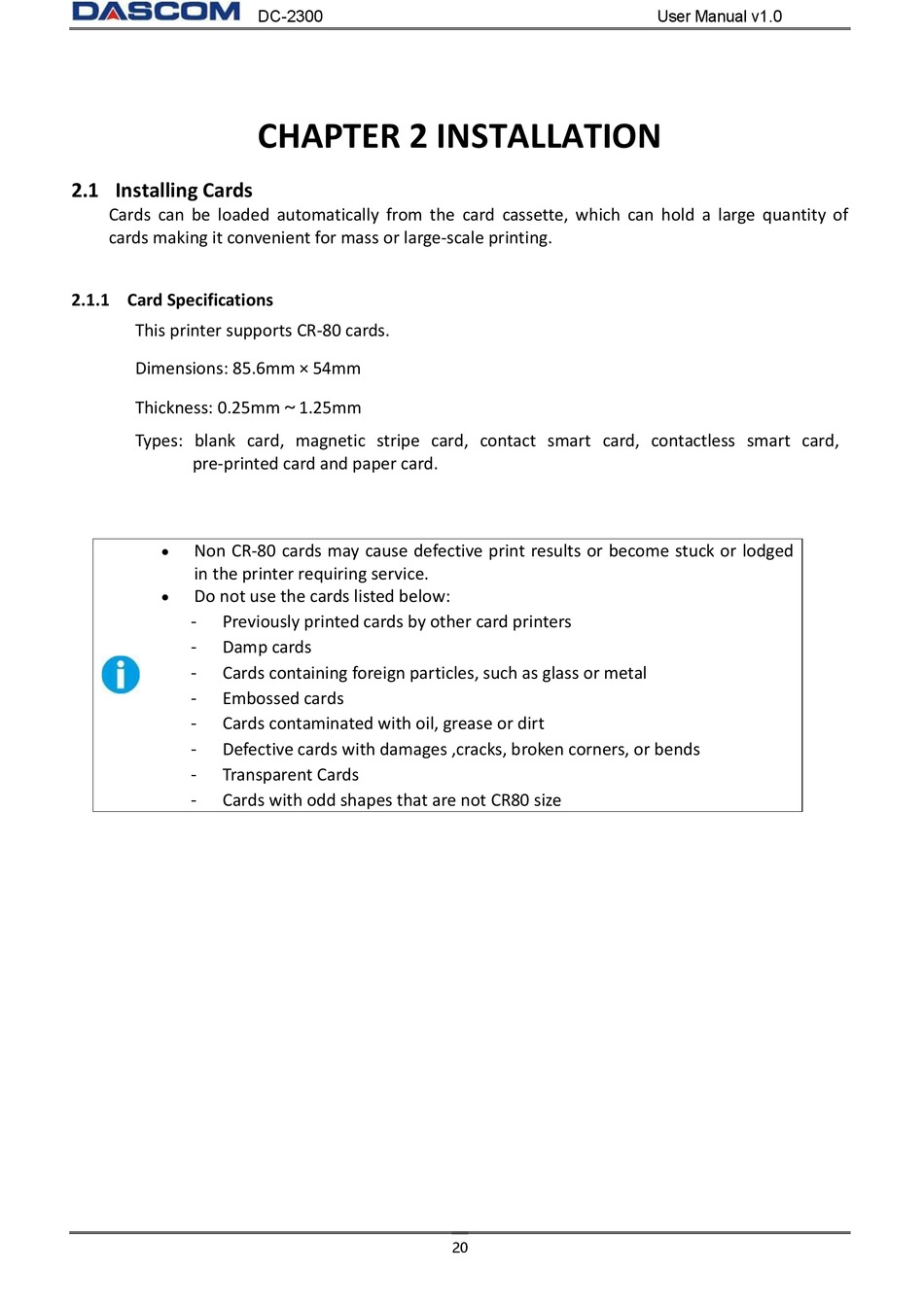

2.1 Installing Cards

Cards can be loaded automatically from the card cassette, which can hold a large quantity of
cards making it convenient for mass or large-scale printing.

2.1.1 Card Specifications

This printer supports CR-80 cards.
Dimensions: 85.6mm × 54mm
Thickness: 0.25mm～1.25mm
Types: blank card, magnetic stripe card, contact smart card, contactless smart card,
pre-printed card and paper card.
Non CR-80 cards may cause defective print results or become stuck or lodged

in the printer requiring service.
Do not use the cards listed below:

- Previously printed cards by other card printers
Damp cards
-
Cards containing foreign particles, such as glass or metal
-
- Embossed cards
- Cards contaminated with oil, grease or dirt
- Defective cards with damages ,cracks, broken corners, or bends
Transparent Cards
-
Cards with odd shapes that are not CR80 size
-
