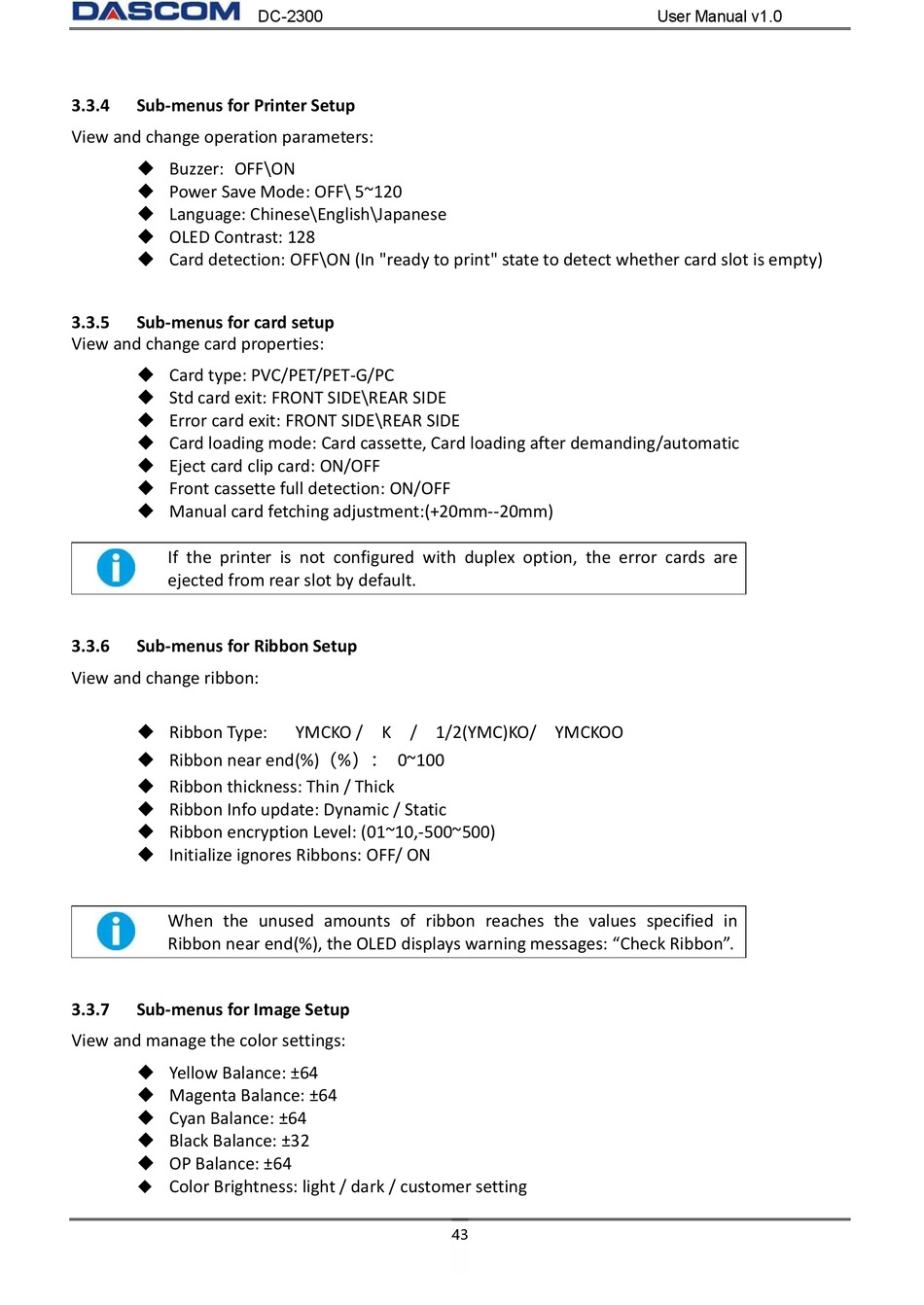

Sub-Menus For Printer Setup; Sub-Menus For Card Setup; Sub-Menus For Ribbon Setup; Sub-Menus For Image Setup - Dascom DC-2300 User Manual

3.3.4

Sub-menus for Printer Setup

View and change operation parameters:
 Buzzer: OFF\ON
 Power Save Mode: OFF\ 5~120
 Language: Chinese\English\Japanese
 OLED Contrast: 128
 Card detection: OFF\ON (In "ready to print" state to detect whether card slot is empty)
3.3.5

Sub-menus for card setup

View and change card properties:
 Card type: PVC/PET/PET-G/PC
 Std card exit: FRONT SIDE\REAR SIDE
 Error card exit: FRONT SIDE\REAR SIDE
 Card loading mode: Card cassette, Card loading after demanding/automatic
 Eject card clip card: ON/OFF
 Front cassette full detection: ON/OFF
 Manual card fetching adjustment:(+20mm--20mm)
If the printer is not configured with duplex option, the error cards are
ejected from rear slot by default.
3.3.6

Sub-menus for Ribbon Setup

View and change ribbon:
 Ribbon Type:
 Ribbon near end(%)（%）： 0~100
 Ribbon thickness: Thin / Thick
 Ribbon Info update: Dynamic / Static
 Ribbon encryption Level: (01~10,-500~500)
 Initialize ignores Ribbons: OFF/ ON
When the unused amounts of ribbon reaches the values specified in
Ribbon near end(%), the OLED displays warning messages: "Check Ribbon".
3.3.7

Sub-menus for Image Setup

View and manage the color settings:
 Yellow Balance: ±64
 Magenta Balance: ±64
 Cyan Balance: ±64
 Black Balance: ±32
 OP Balance: ±64
Color Brightness: light / dark / customer setting

DC-2300
YMCKO / K / 1/2(YMC)KO/ YMCKOO
43
User Manual v1.0
