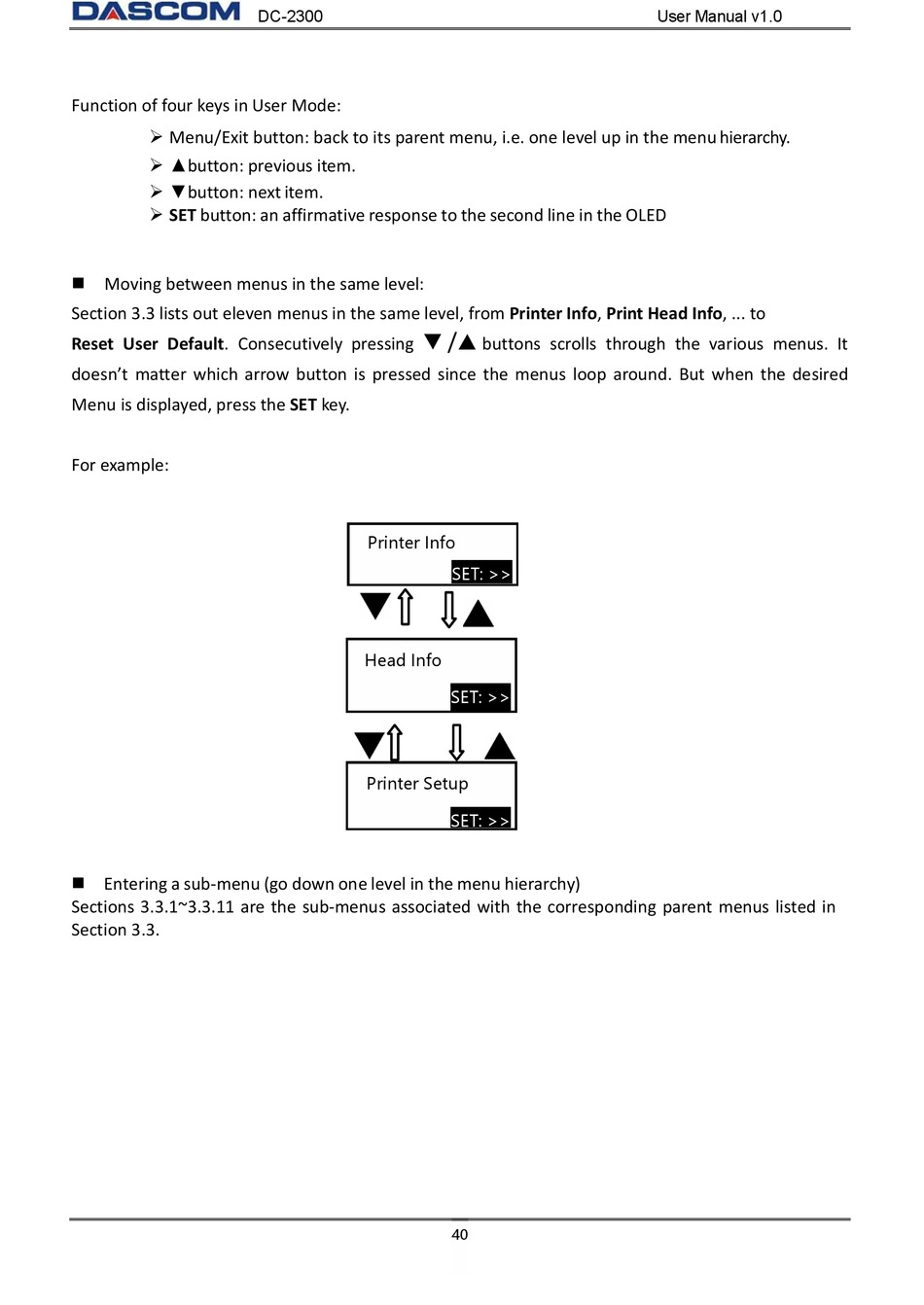

Function of four keys in User Mode:
 Menu/Exit button: back to its parent menu, i.e. one level up in the menu hierarchy.
 ▲button: previous item.
 ▼button: next item.
 SET button: an affirmative response to the second line in the OLED
 Moving between menus in the same level:
Section 3.3 lists out eleven menus in the same level, from Printer Info, Print Head Info, ... to
Reset User Default. Consecutively pressing
doesn't matter which arrow button is pressed since the menus loop around. But when the desired
Menu is displayed, press the SET key.
For example:
 Entering a sub-menu (go down one level in the menu hierarchy)
Sections 3.3.1~3.3.11 are the sub-menus associated with the corresponding parent menus listed in
Section 3.3.
DC-2300
▼ ▲
Printer Info
Head Info
Printer Setup
/
buttons scrolls through the various menus. It
SET: >>
SET: >>
SET: >>
40
User Manual v1.0
