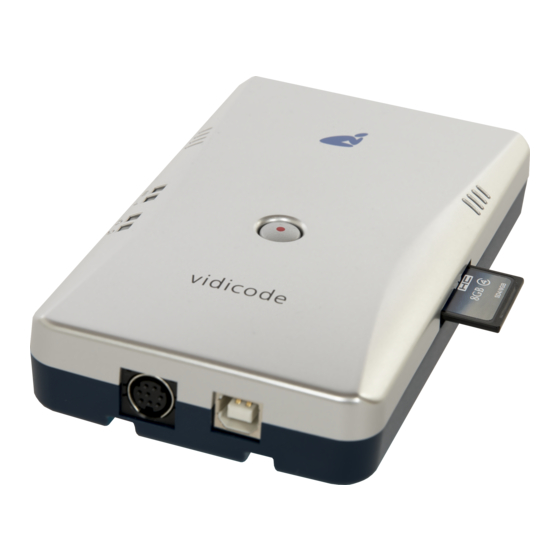

The V-Tap VoIP is a device that captures VoIP telephony from a network and

stores this data onto an SD card and/or sends this data to a server, which can be

an Apresa recorder or the Call Recorder VoIP software.

The V-Tap VoIP unit itself must hold as many channel licenses as the number of

VoIP telephones that needs to be recorded

NOTE:

The SD card must be formatted with the FAT32 file system. Cards above 32 GB (up to 2 TB)

are not tested and must be formatted as FAT32 first, before inserting them into the V-Tap.

• V-Tap VoIP unit

• USB adapter

• USB cable

• LAN cable

• SD card

• CD with manual and Call Recorder VoIP software for the PC

• 1 year Support & Update license (S&U)

• This Quick Guide

V1.6

Quick Guide for the V-Tap VoIP

BOX CONTENT

Table of Contents

Do you have a question about the V-Tap VoIP and is the answer not in the manual?

Page 1 SD card and/or sends this data to a server, which can be an Apresa recorder or the Call Recorder VoIP software. The V-Tap VoIP unit itself must hold as many channel licenses as the number of VoIP telephones that needs to be recorded NOTE: The SD card must be formatted with the FAT32 file system.
Page 2 Quick Guide for the V-Tap VoIP HARDWARE INSTALLATION • Connect one or more VoIP phones to any network port on the V-Tap VoIP. • Connect the LAN coming from the wall/switch to a free network port. • Connect the USB of the V-Tap to the adapter for power.
Page 3: Software Installation
Windows Vista/7/8/10 , Intel Pentium >2GHz , 4GByte RAM , >100 MB free disk space. CALL RECORDER VOIP SOFTWARE INSTALLATION 1. Connect the V-Tap VoIP to a free USB port on your PC. NOTE: The V-Tap VoIP must be connected to the same PC, otherwise the installer will not continue. 2. Software installation •...
