Hardware and layout
The 32L152CDISCOVERY is designed around one STM32L152RCT6 packaged in an
LQFP64.
Figure 2
illustrates the connections between the STM32L152RCT6 microcontroller and its
peripherals (ST-LINK/V2, pushbuttons, LEDs, LCD, linear touch sensor, touchkeys, and
connectors). These connections are the same for the STM32L-DISCOVERY.
Figure 3
and
Figure 4
allow to locate these features on the board.

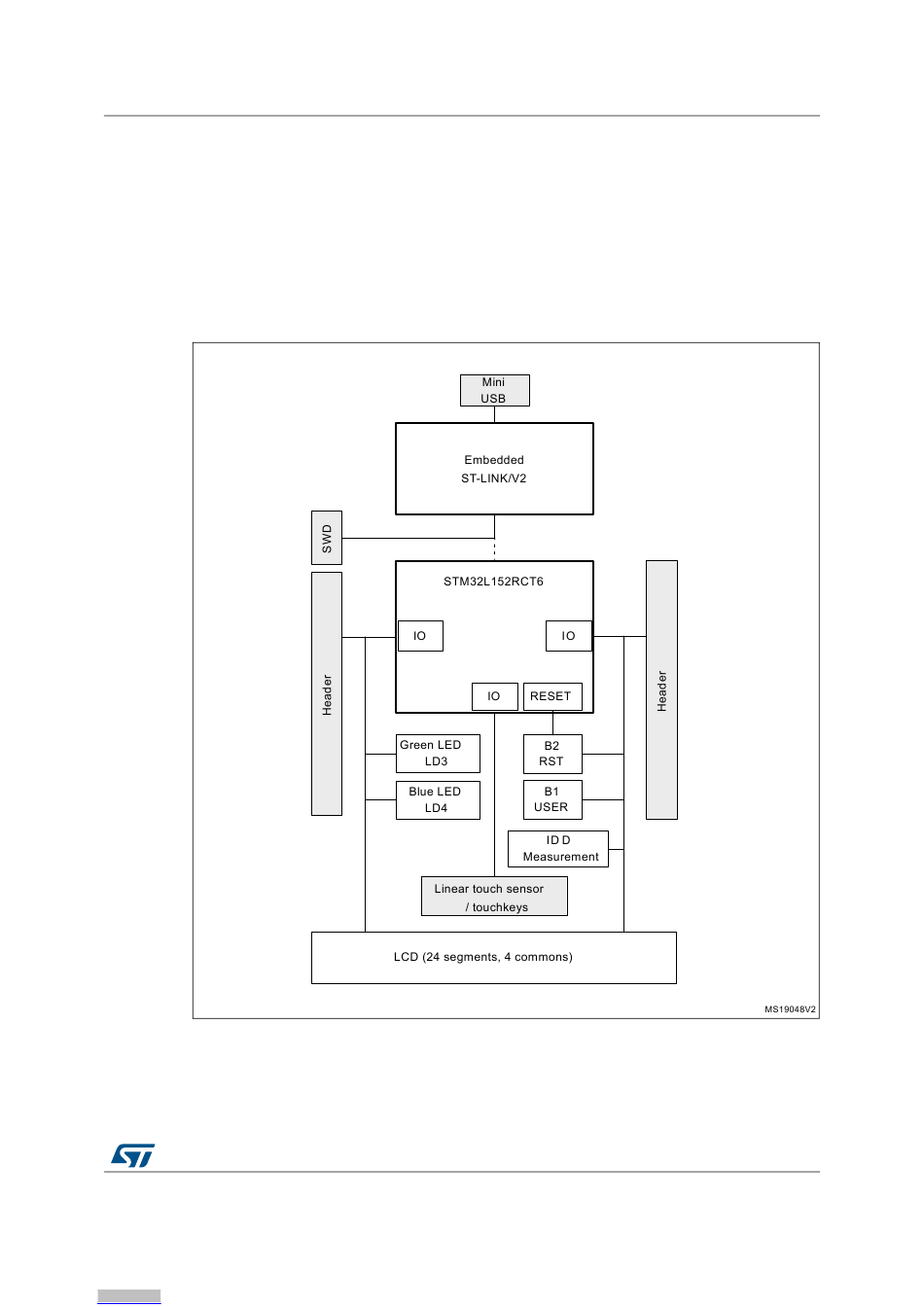

Figure 2. Hardware block diagram
DocID018789 Rev 4
Hardware and layout
9/38
