1. Pin 1 of CN1, CN2, P1 and P2 connectors are identified by a square.
STM32L152RCT6 microcontroller
The STM32L152RCT6 features 256 Kbytes of Flash memory, 32 Kbytes of RAM and
8 Kbytes data of EEPROM.
This microcontroller embeds RTC, LCD, timers, USART, I2C, SPI, ADC, DAC, and
comparators.

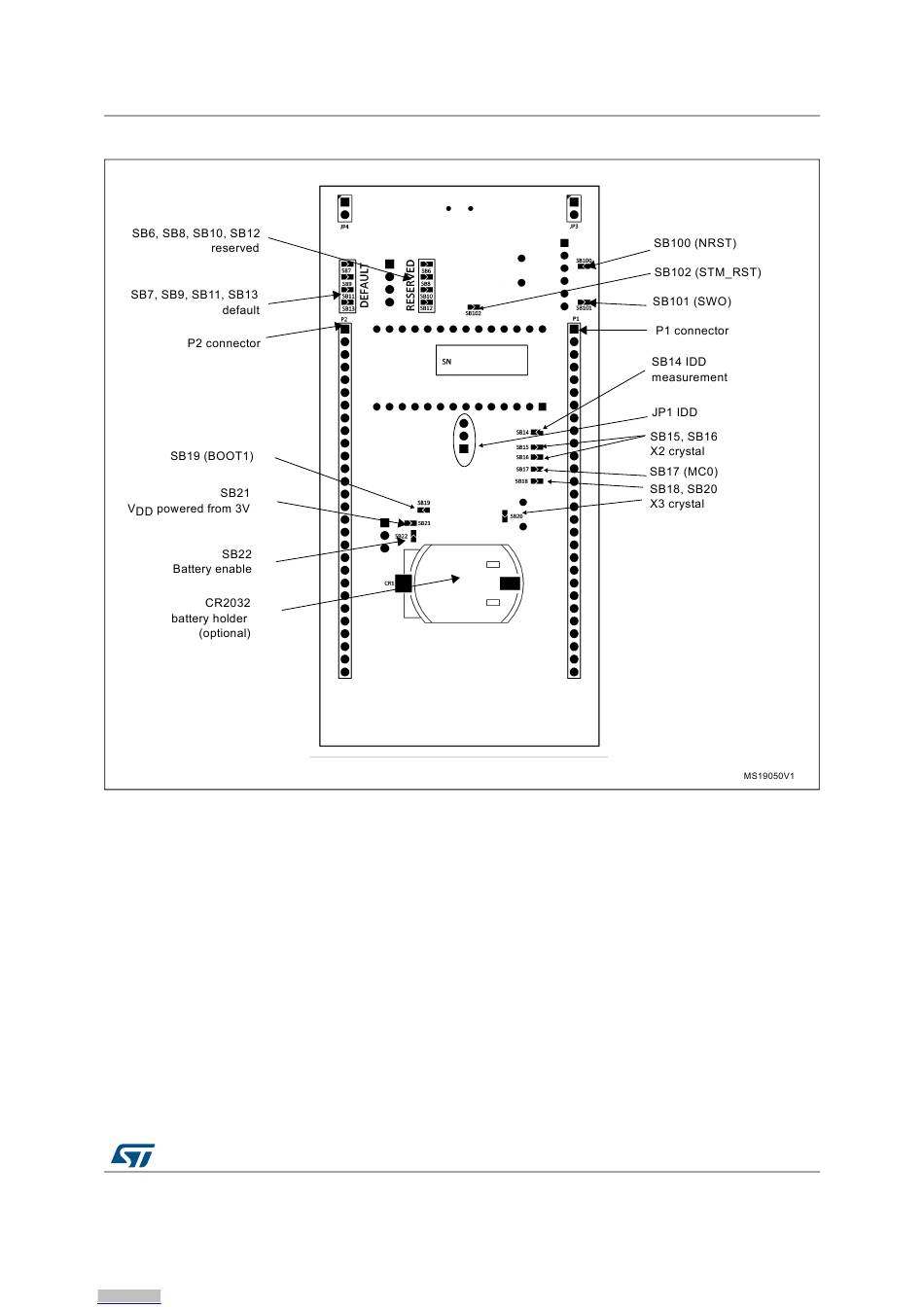

Figure 4. Bottom layout
DocID018789 Rev 4
Hardware and layout
11/38
37
