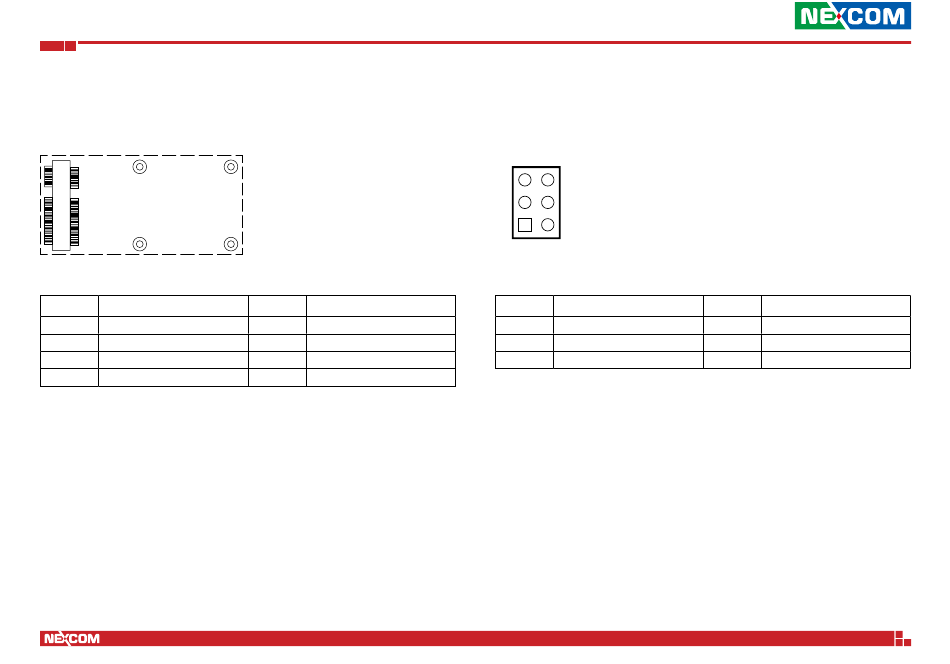

Chapter 2: Jumpers and Connectors

Mini PCIe Slot

Connector location: CN2
1
2
51
52
Pin
Definition
11
PCIE_CLK3_DN
23
WIFI_RXN
31
WIFI_TXN
36
USB2_P2_DN
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
13
PCIE_CLK3_DP
25
WIFI_RXP
33
WIFI_TXP
38
USB2_P2_DP

Power and Reset

Connector location: SW1
2
5
3
4
1
6
Pin
Definition
1
GND
3
GND
5
SYS_RESET_N_R
12
Pin
Definition
2
GND
4
FP_PWRBTN_N_R
6
GND
