Chapter 3: System Setup

Installing a Wi-Fi Module (Mini-PCIe Slot)

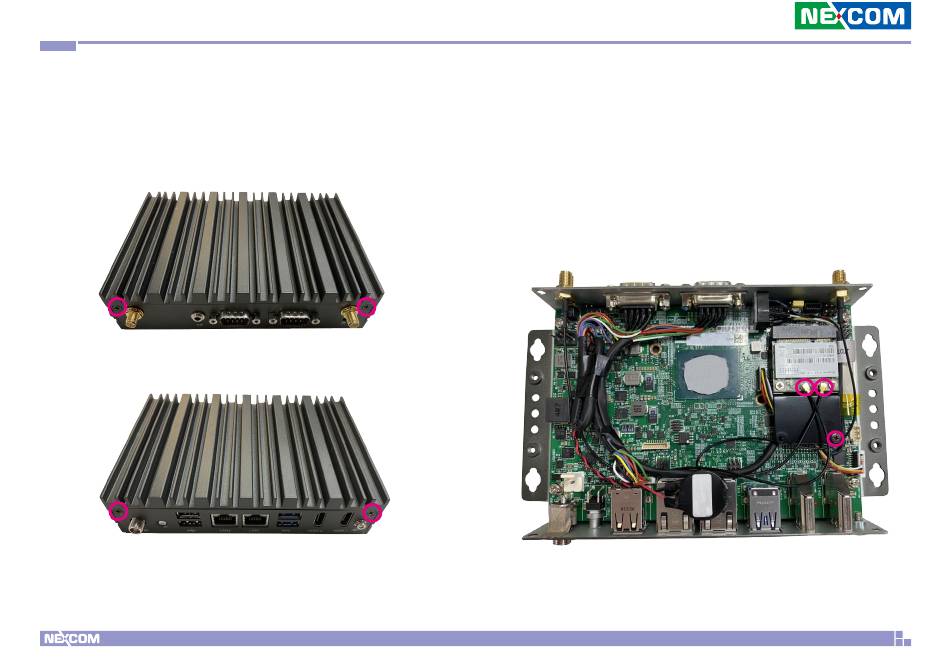

1. Remove the 4 screws from the bottom cover.
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
2. With the chassis cover removed, locate the mini-PCIe slot on the board.
Insert the Wi-Fi module into the slot at a 45 degree angle until the gold-
plated connector on the edge of the module completely disappears inside
the slot. Tighten a screw into the mounting hole on the module to secure
it. Attach the RF cables onto the Wi-Fi module and insert the antenna
jack end of the cables through the antenna holes.
