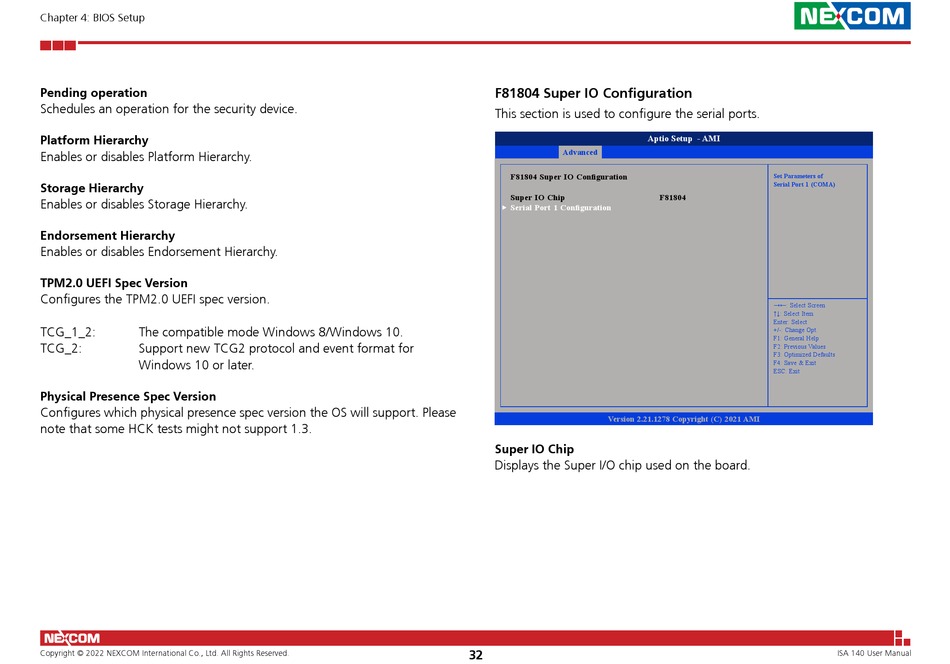

Nexcom ISA 140 User Manual page 46

Chapter 4: BIOS Setup
Pending operation
Schedules an operation for the security device.
Platform Hierarchy
Enables or disables Platform Hierarchy.
Storage Hierarchy
Enables or disables Storage Hierarchy.
Endorsement Hierarchy
Enables or disables Endorsement Hierarchy.
TPM2.0 UEFI Spec Version
Configures the TPM2.0 UEFI spec version.
TCG_1_2: The compatible mode Windows 8/Windows 10.
TCG_2: Support new TCG2 protocol and event format for
Windows 10 or later.
Physical Presence Spec Version
Configures which physical presence spec version the OS will support. Please
note that some HCK tests might not support 1.3.
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
F81804 Super IO Configuration
This section is used to configure the serial ports.
Aptio Setup - AMI
Advanced
F81804 Super IO Configuration
Super IO Chip
Serial Port 1 Configuration

Version 2.21.1278 Copyright (C) 2021 AMI
Super IO Chip
Displays the Super I/O chip used on the board.
32
Set Parameters of
Serial Port 1 (COMA)
F81804
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
ISA 140 User Manual
