Industrial Electronic Devices

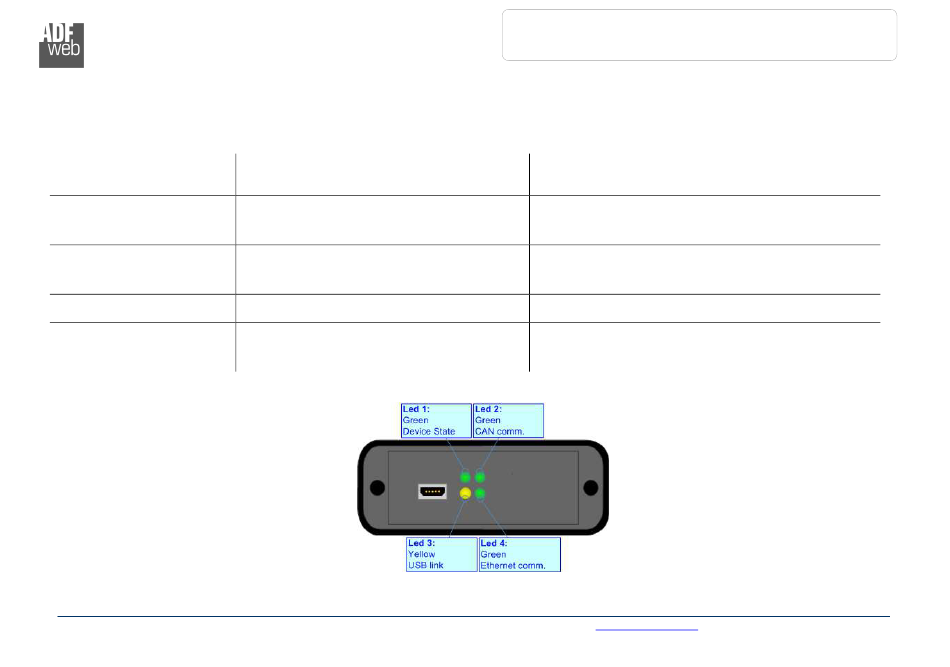

LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device state (green)
2: CAN Communication
(green)
3: USB link (yellow)
4: Ethernet communication
(green)
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
Blinks slowly (~1Hz)
Blinks when NMEA 2000 frames are received
OFF
Blinks when the EtherNet/IP communication is
working
User Manual NMEA 2000 / EtherNet/IP - Converter
Document code: MN67458_ENG
Boot Mode
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
INFO:
www.adfweb.com
Revision 1.000
Page 9 of 31
Phone +39.0438.30.91.31
