Industrial Electronic Devices
User Manual
Revision 1.001
English
NMEA 2000 / Ethernet - Converter
(Order Code: HD67223-A1 – HD67223-B2)
for Website information:
www.adfweb.com?Product=HD67223-A1
www.adfweb.com?Product=HD67223-B2
for Price information:
www.adfweb.com?Price=HD67223-A1
www.adfweb.com?Price=HD67223-B2
Benefits and Main Features:
Mountable on Rail DIN
TCP/UDP protocols changeable with software
Easy to use software configuration
Industrial temperature range:
-40°C / 85°C (-40°F / 185°F)
ADFweb.com Srl – IT31010 – Mareno – Treviso
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
User Manual NMEA 2000 / Ethernet
Document code: MN67223_ENG
HD67223-A1
Similiar
For others Converter / Adapter:
Products
RS232 / RS485
See also the following link:
www.adfweb.com?Product=HD67118
USB / RS485
See also the following link:
www.adfweb.com?Product=HD67119
Do you have an your customer protocol?
See the following link:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
in India
in India
in India
in India
Revision 1.001
Page 1 of 17
HD67223-B2
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67223-A1
Summary of Contents for ADF Web HD67223-A1

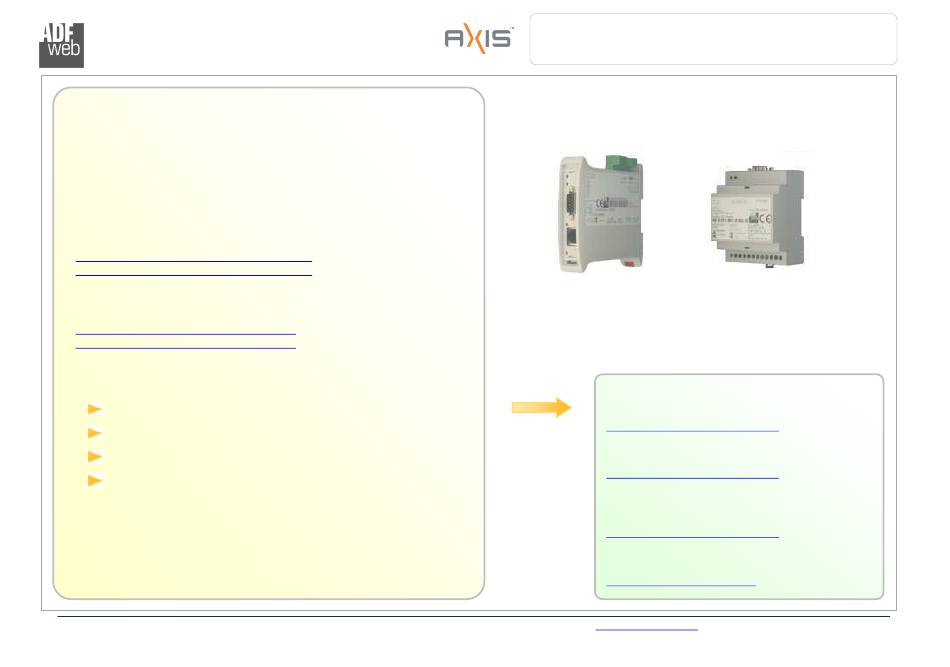

- Page 1 Document code: MN67223_ENG Revision 1.001 Page 1 of 17 Industrial Electronic Devices User Manual Revision 1.001 English NMEA 2000 / Ethernet - Converter (Order Code: HD67223-A1 – HD67223-B2) for Website information: www.adfweb.com?Product=HD67223-A1 www.adfweb.com?Product=HD67223-B2 HD67223-B2 HD67223-A1 for Price information: www.adfweb.com?Price=HD67223-A1 www.adfweb.com?Price=HD67223-B2...
-
