Industrial Electronic Devices
TRANSMIT NMEA 2000 FRAMES

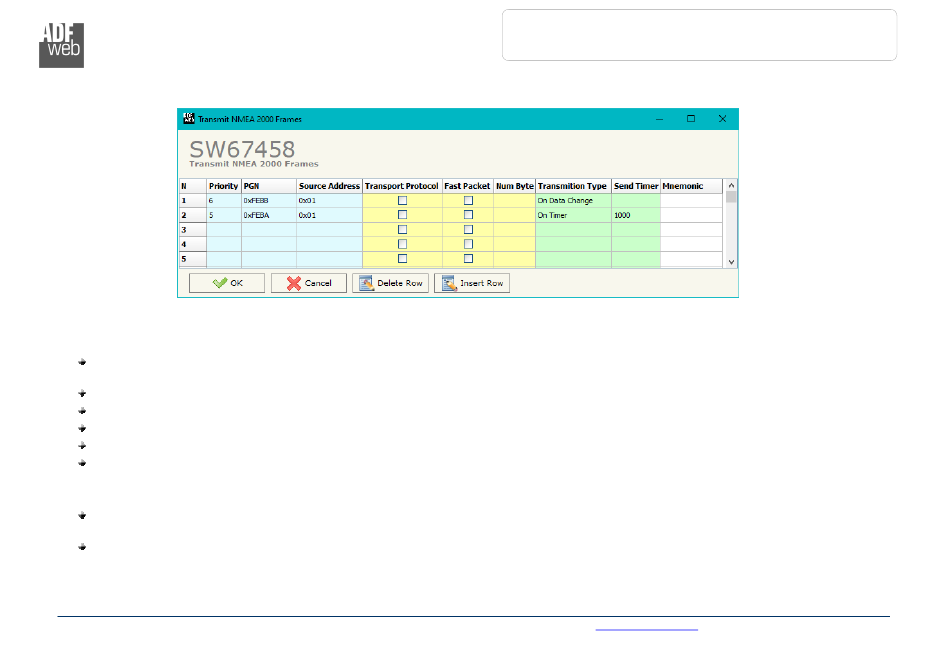

Figure 5: "Send Frames" window
The means of the fields are:
In the field "Priority" the priority of the NMEA 2000 message is defined. In NMEA 2000 protocol, the priority is a number between 0
and 7. '0' is the highest priority and '7' is the lowest;
In the field "PGN" the PGN of the NMEA 2000 message to send is defined (in NMEA 2000 protocol the PGN is an identifier);
In the field
"Source
Address" the address of the device that sends the frame is defined;
If the field
"Fast
Packet" is checked, the frame will use the Fast Packet functions;
In the field
"Num
Byte" the number of bytes of the NMEA 2000 message is defined;
In the field
"Transmition
On Data Change: NMEA 2000 message is sent only when the data from EtherNet/IP are changed;
o
On Timer: NMEA 2000 message is sent cyclically;
o
In the field
"Send
Timer" the delay (in milliseconds) with which sending the NMEA 2000 message is defined (for "On Timer"
transmission type);
In the field "Mnemonic" a description for the frame is defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Type" the transmission type is defined:
User Manual NMEA 2000 / EtherNet/IP - Converter
Document code: MN67458_ENG
INFO:
www.adfweb.com
Revision 1.000
Page 18 of 31
Phone +39.0438.30.91.31
