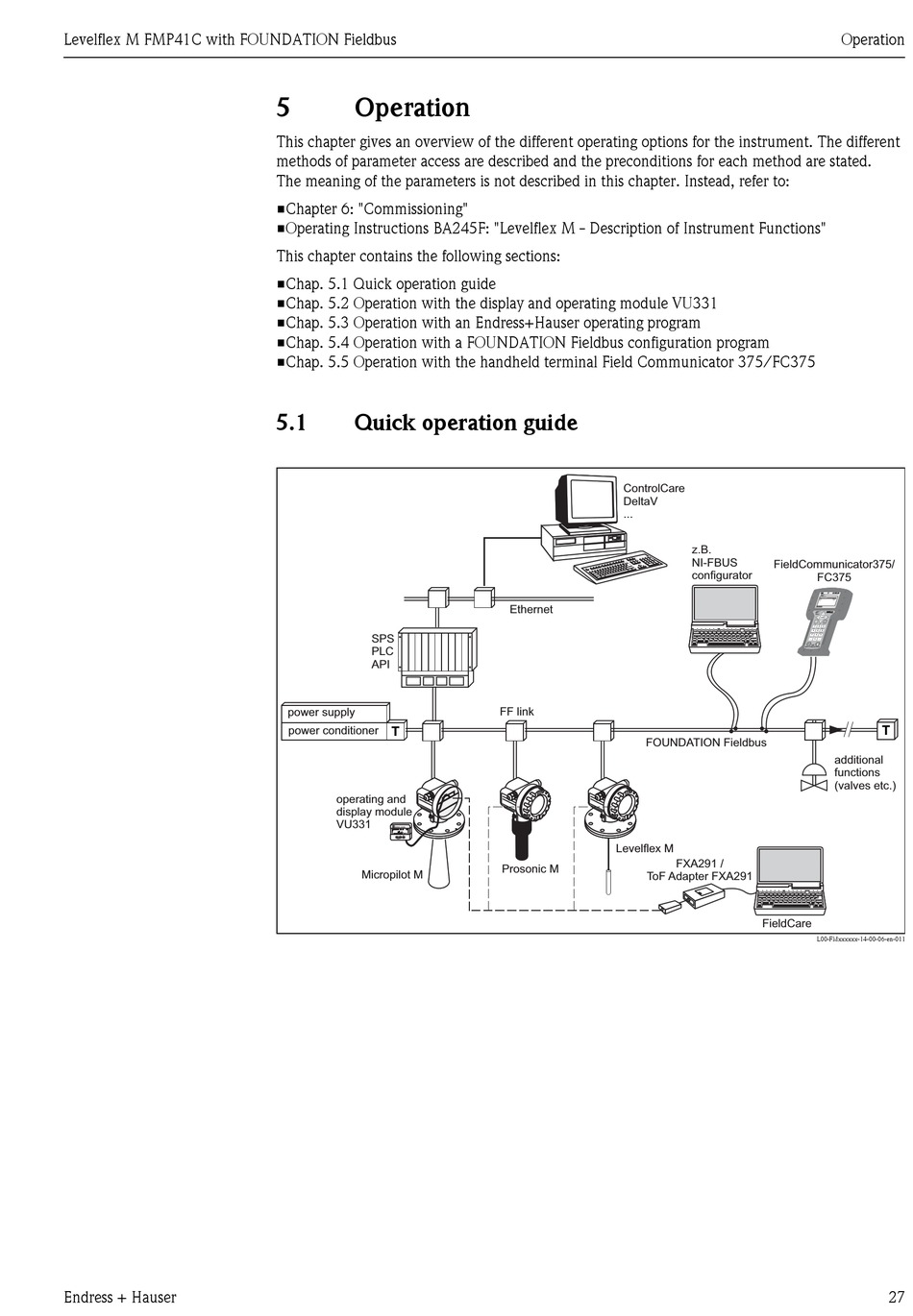

Operation

This chapter gives an overview of the different operating options for the instrument. The different
methods of parameter access are described and the preconditions for each method are stated.
The meaning of the parameters is not described in this chapter. Instead, refer to:
•Chapter 6: "Commissioning"
•Operating Instructions BA245F: "Levelflex M - Description of Instrument Functions"
This chapter contains the following sections:
•Chap. 5.1 Quick operation guide
•Chap. 5.2 Operation with the display and operating module VU331
•Chap. 5.3 Operation with an Endress+Hauser operating program
•Chap. 5.4 Operation with a FOUNDATION Fieldbus configuration program
•Chap. 5.5 Operation with the handheld terminal Field Communicator 375/FC375
5.1

Quick operation guide

SPS
PLC
API
power supply
power conditioner T
operating and
display module
VU331
ENDRESS + HAUSER
%
– +
E
Micropilot M
ControlCare
DeltaV
...
Ethernet
FF link
FOUNDATION Fieldbus
Levelflex M
Prosonic M
ToF Adapter FXA291
Operation
z.B.
NI-FBUS
FieldCommunicator375/
configurator
FC375
df das. asdas fa asas la. dsdmdm asas la. asdas fa df das. dsdmdm
DELTABAR: * * * * * * * * DELTABAR: * * * * * * * *
ONLINE ONLINE
1 QUICK SETUP 1 QUICK SETUP
2 OPERATING MENU 2 OPERATING MENU
3 PV 3 PV 352 mbar 352 mbar
4 SV 4 SV 0 °C 0 °C
HELP HELP SAVE SAVE
9 9 6 6
Page Page
Up Up
Bksp Bksp Delete Delete
Page Page
On On
# % & # % & A B C A B C D E F D E F
1 1 2 2 3 3
Copy Copy Paste Paste Hot Key Hot Key
G H I G H I J K L J K L M N O M N O
4 4 5 5 6 6
Insert Insert + Hot Key + Hot Key
P Q R S P Q R S T U V T U V W X Y Z W X Y Z
7 7 8 8 9 9
, ( ) ' , ( ) ' _ < > _ < > + * / + * /
. . 0 0 - -
375 375
FIELD COMMUNICATOR FIELD COMMUNICATOR
additional
functions
(valves etc.)
FXA291 /
FieldCare
L00-FMxxxxxx-14-00-06-en-011
