Installation
dairy coupling
reference point of
measurement
14
Levelflex M FMP41C - process connection, probe type
Housing dimensions → ä 13
F12 / T12 / F23 housing
4 x Ø 8,5
1 ½"/2"/3"
Clamp
DN 50
rope probe
rope:
Ø 4 mm/0.20"
Ø 22/0.87" (incl. insulation)

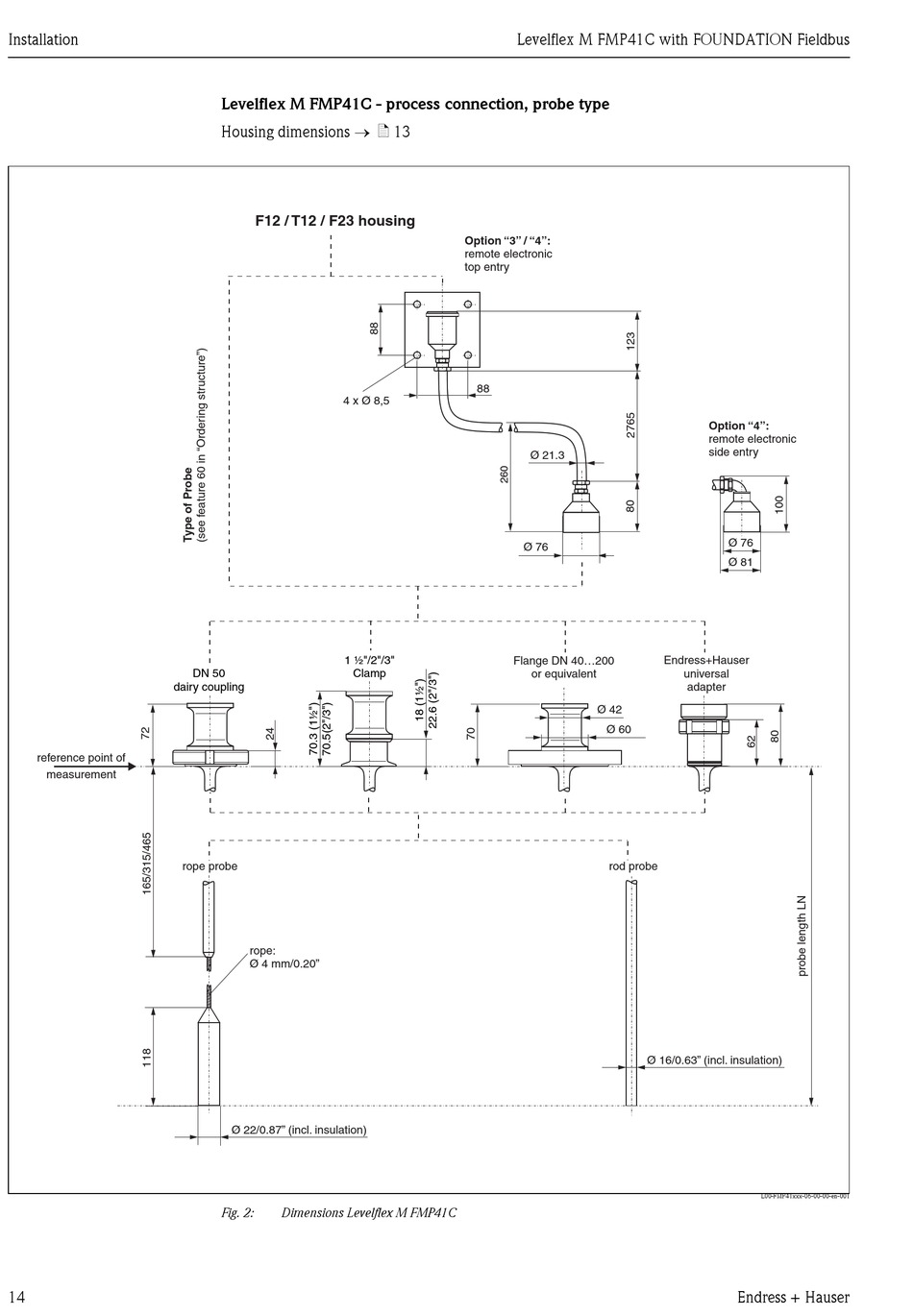

Fig. 2:
Dimensions Levelflex M FMP41C
Levelflex M FMP41C with FOUNDATION Fieldbus
Option "3"
/ "4"
:
remote electronic
top entry
88
Ø 21.3
Ø 76
Flange DN 40...200
or equivalent
Ø 42
Ø 60
rod probe
Option "4":
remote electronic
side entry
Ø 76
Ø 81
Endress+Hauser
universal
adapter
Ø 16/0.63" (incl. insulation)
L00-FMP41xxx-06-00-00-en-001
