Operation
ENDRESS + HAUSER
– +
E
F
basic setup
O
safety settings
length calibr.
linearisation
S
...
32
Navigation within the menu
X
X
2 x
X
F
tank shape
O
Standard
aluminium tank
plastic tank
bypass / pipe
S
coax probe
concrete wall

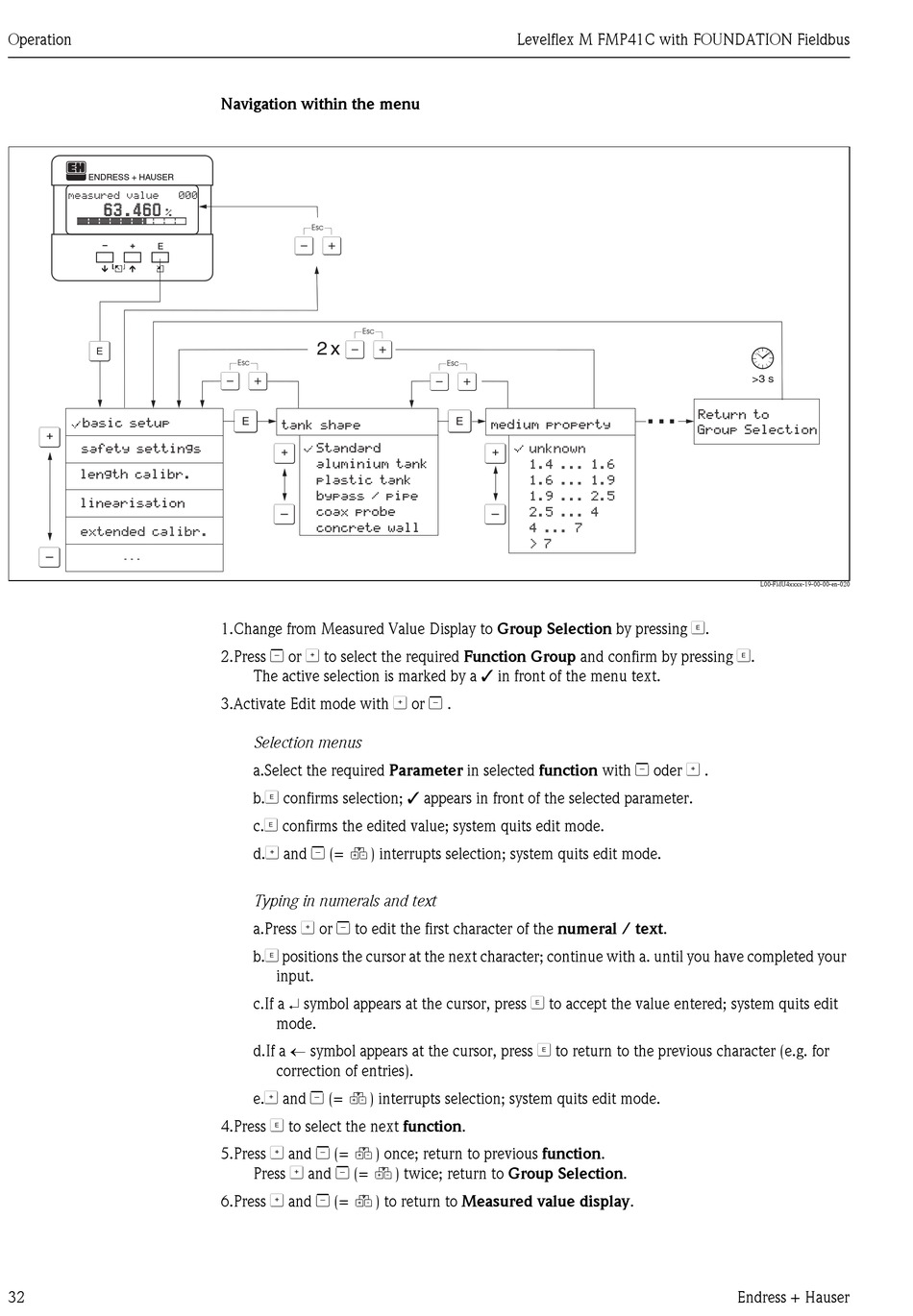

1.Change from Measured Value Display to Group Selection by pressing F.
2.Press S or O to select the required Function Group and confirm by pressing F.
The active selection is marked by a  in front of the menu text.
3.Activate Edit mode with O or S .
Selection menus
a.Select the required Parameter in selected function with S oder O .
b.F confirms selection; Â appears in front of the selected parameter.
c.F confirms the edited value; system quits edit mode.
d.O and S (= Q) interrupts selection; system quits edit mode.
Typing in numerals and text
a.Press O or S to edit the first character of the numeral / text.
b.F positions the cursor at the next character; continue with a. until you have completed your
input.
c.If a ↵ symbol appears at the cursor, press F to accept the value entered; system quits edit
mode.
d.If a ← symbol appears at the cursor, press F to return to the previous character (e.g. for
correction of entries).
e.O and S (= Q) interrupts selection; system quits edit mode.
4.Press F to select the next function.
5.Press O and S (= Q) once; return to previous function.
Press O and S (= Q) twice; return to Group Selection.
6.Press O and S (= Q) to return to Measured value display.
Levelflex M FMP41C with FOUNDATION Fieldbus
X
F
medium property
O
S
>3 s
...
Return to
Group Selection
