Getting Started

This chapter describes how to set up and install the ROScube-I
Series.

4.1 Attaching the DC Power Connector

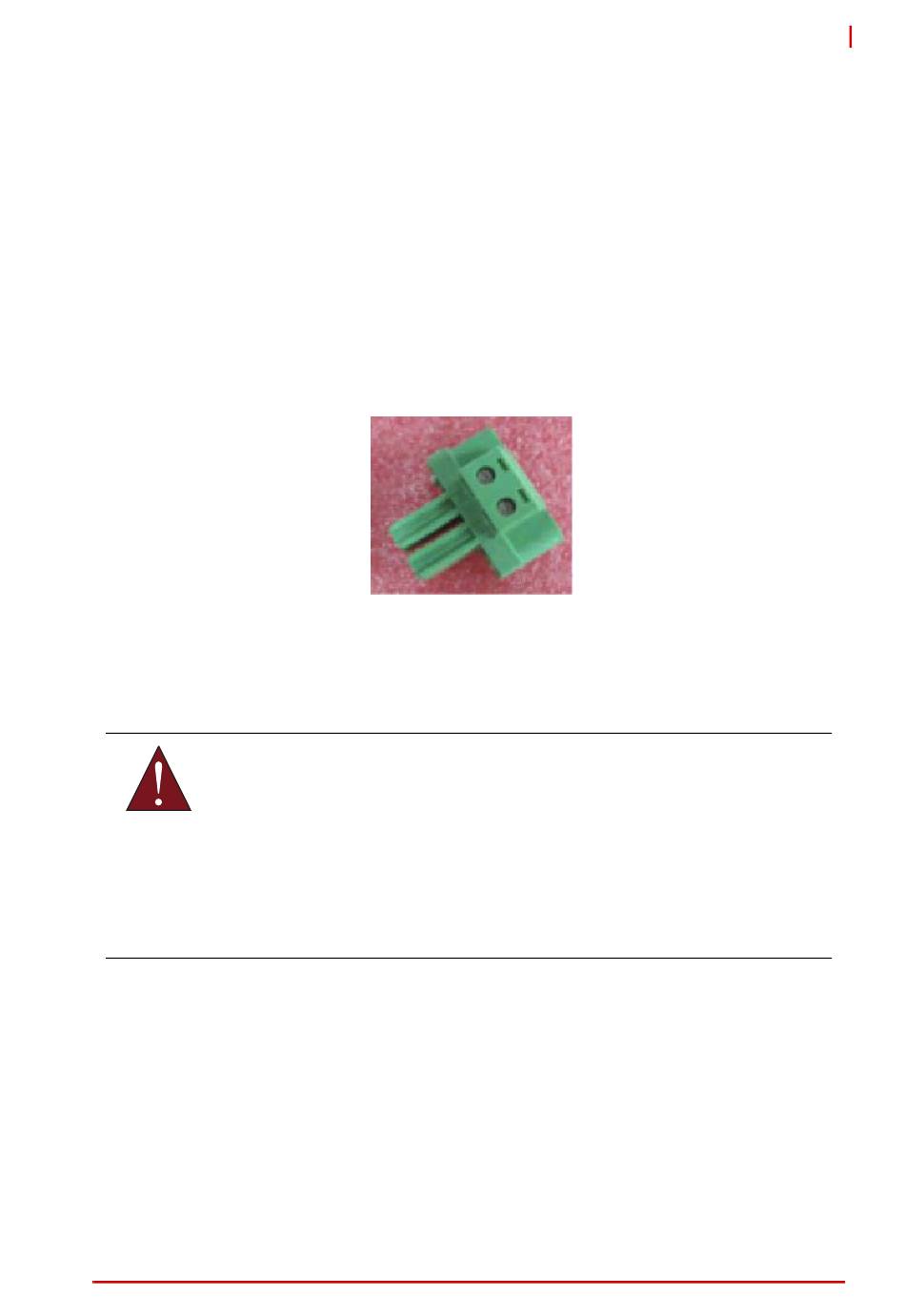

Locate the DC power connector shown below that is included in
the accessory box. Insert the power connector into DC power
input "A" shown in Figure 3-1 on page 15 and secure it to the
chassis using the captive screws.
Connect a DC power source as described in Section 3.1.10: DC
Power Input on page 25 to the inputs of the DC power connector,
making sure to use the correct input voltage andpolarity.
Before providing DC power, ensure the voltage and polarity pro-
vided are compatible with the DC input. Improper input voltage
and/or polarity can be responsible for system damage.
WARNING:
AVERTISSEMENT: Avant de connecter à une source de courant
continu, veuillez vous assurer de la polarité de la tension confor-
mément à l'entrée CC du PC. Une tension et/ou une polarité
incorrectes peuvent causer des dommages irréversibles sur le
système.
