7.2. Top and Bottom Views of the Module
NOTE
Images above are for illustration purpose only and may differ from the actual module. For authentic
appearance and label, please refer to the module received from Quectel.
RM500Q-AE&RM502Q-AE_Hardware_Design
Top View

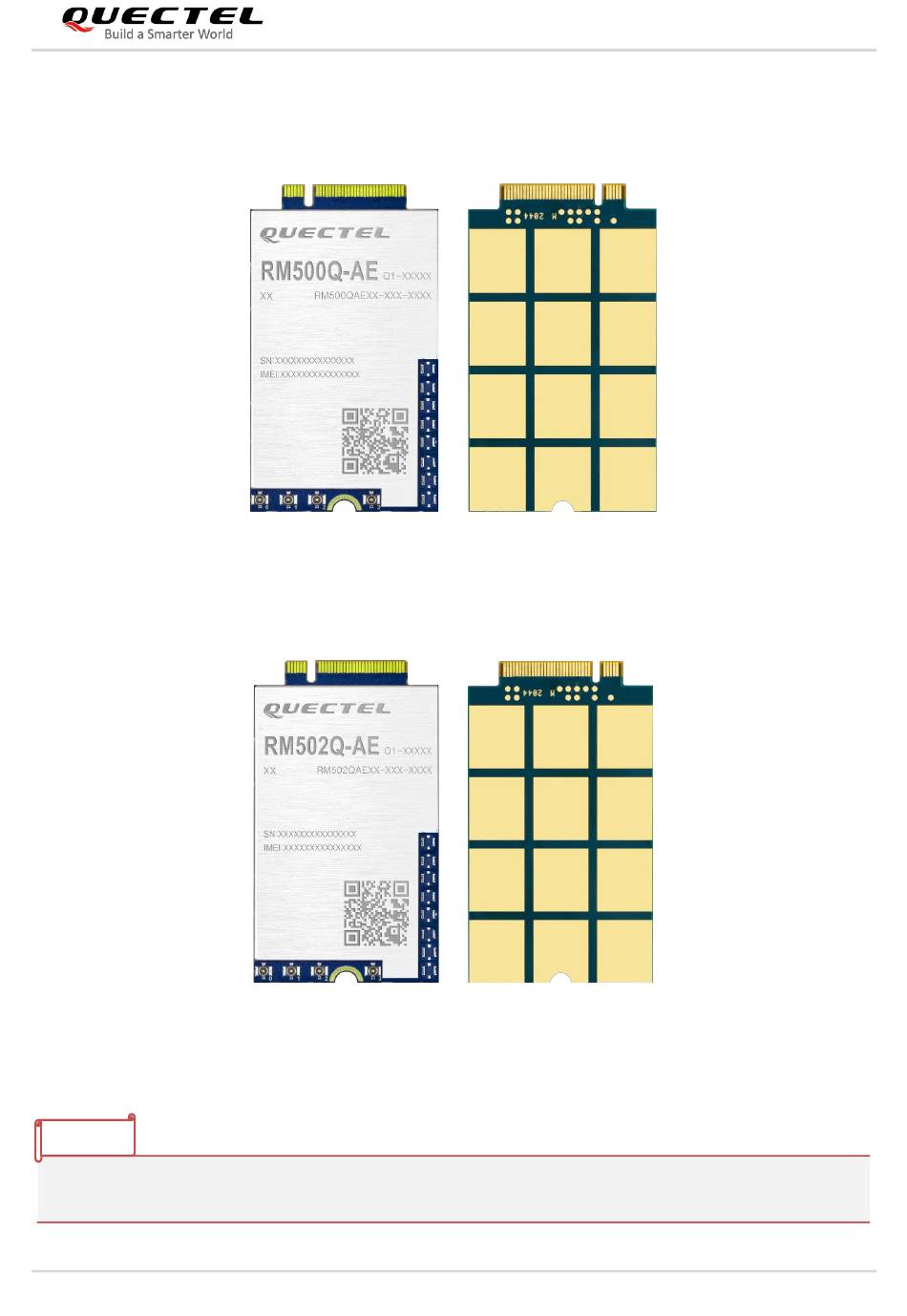

Figure 39: RM500Q-AE Top View and Bottom View
Top View
Figure 40: RM502Q-AE Top View and Bottom View
RM500Q-AE&RM502Q-AE Hardware Design
Bottom View
Bottom View
5G Module Series
81 / 86
