Table 37: Major Specifications of the RF Connector
Item
Nominal Frequency Range
Nominal Impedance
Temperature Rating
Voltage Standing Wave Ratio (VSWR)

5.3.3. Antenna Connector Installation

The receptacle RF connector used in conjunction with the module will accept two types of mating plugs
that will meet a maximum height of 1.2 mm using a Ø 0.81 mm coaxial cable or a maximum height of 1.45
mm utilizing a Ø 1.13 mm coaxial cable.

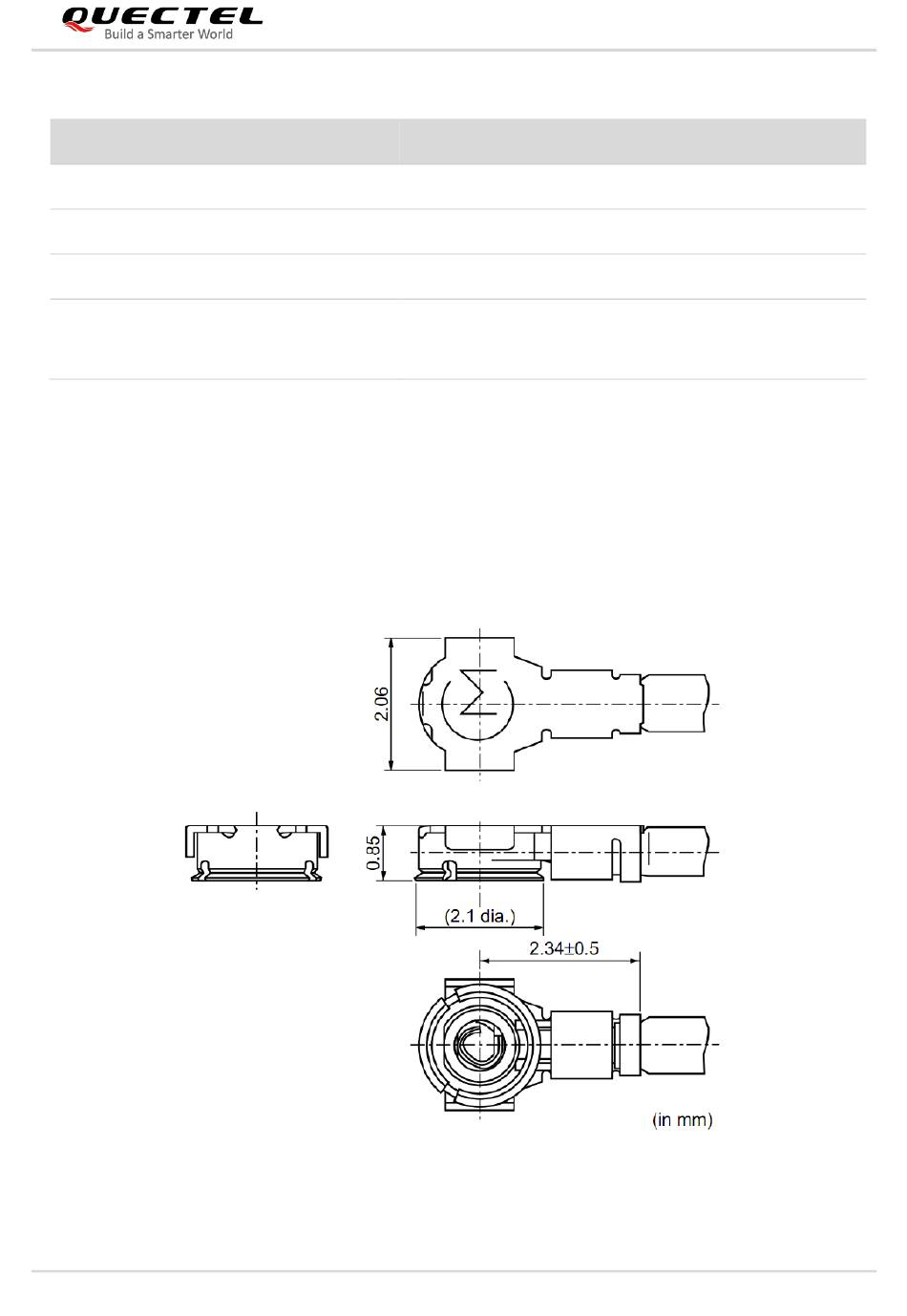

The following figure shows the specifications of mating plugs using Ø 0.81 mm coaxial cables.
Figure 31: Specifications of Mating Plugs Using Ø 0.81 mm Coaxial Cables
RM500Q-AE&RM502Q-AE_Hardware_Design
RM500Q-AE&RM502Q-AE Hardware Design
Specification
DC to 6 GHz
50 Ω
-40 ° C to +85 ° C
Meet the requirements of:
Max 1.3 (DC–3 GHz)
Max 1.4 (3–6 GHz)
