5G Module Series
RM500Q-AE&RM502Q-AE Hardware Design

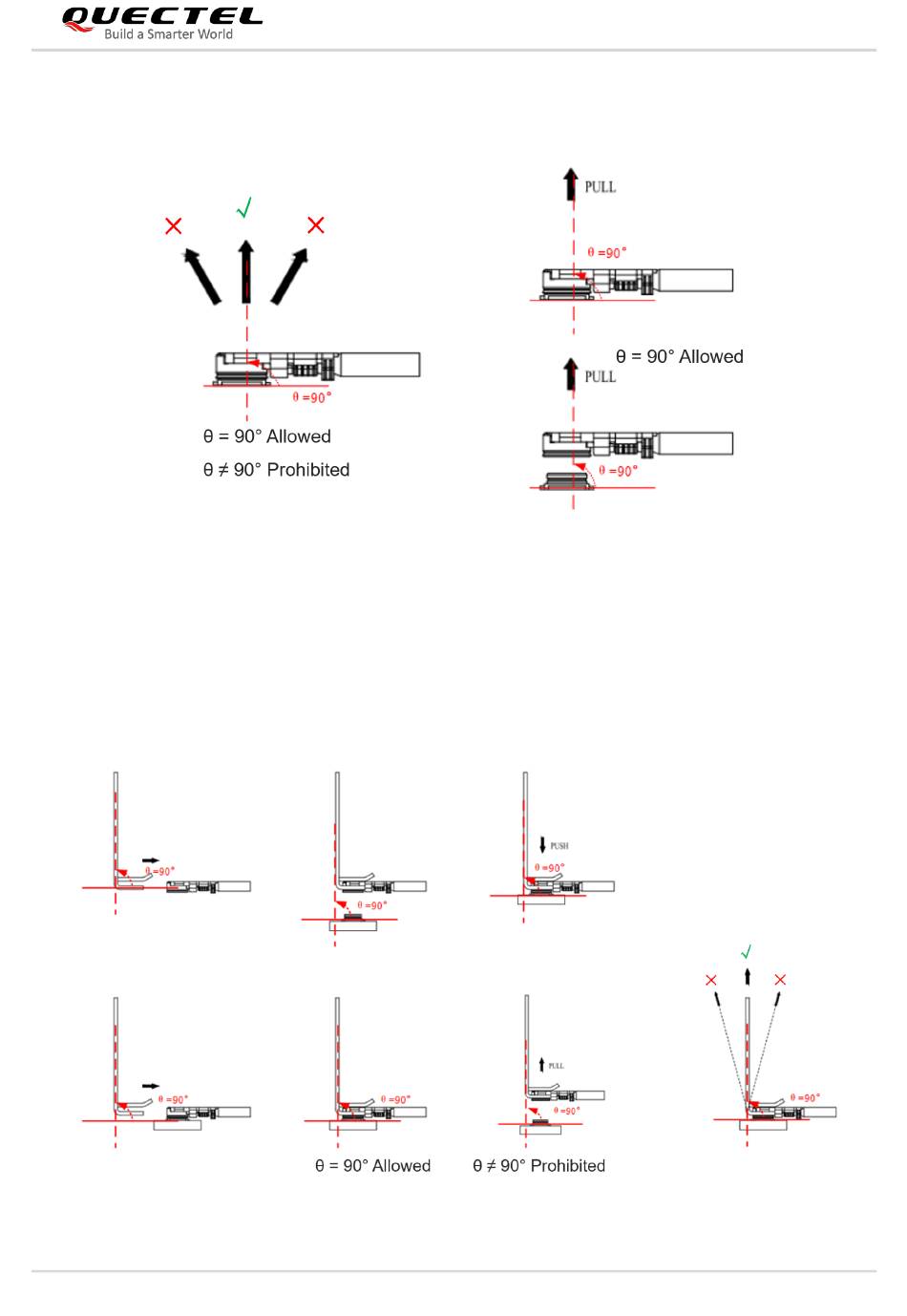

The illustration of pulling out the coaxial cable plug is shown below, θ = 90° is acceptable, while θ ≠ 90° is
not.
Figure 35: Pull out a Coaxial Cable Plug
5.3.4.2. Assemble Coaxial Cable Plug with Jig
The pictures of installing the coaxial cable plug with a jig is shown below, θ = 90° is acceptable, while θ ≠
90° is not.
Figure 36: Install the Coaxial Cable Plug with A Jig
RM500Q-AE&RM502Q-AE_Hardware_Design
68 / 86
