RM500Q-AE&RM502Q-AE Hardware Design
ANT0 ANT1 ANT2
ANT3_GNSSL1

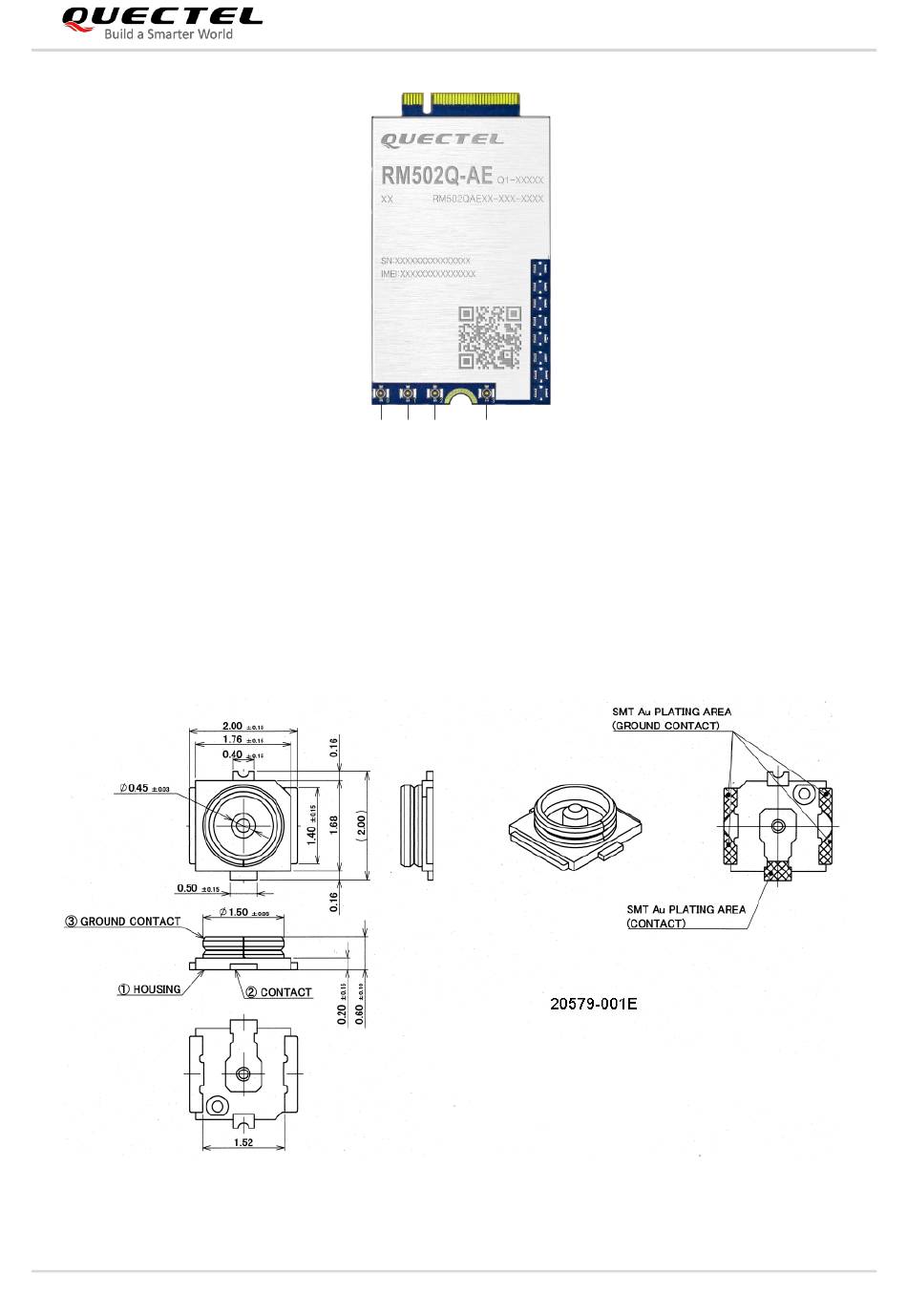

Figure 29: RM502Q-AE Antenna Connectors
5.3.2. Antenna Connector Size
RM500Q-AE and RM502Q-AE are mounted with standard 2 mm × 2 mm receptacle antenna connectors
for convenient antenna connection. The antenna connector's PN is IPEX 20579-001E, and the connector
dimensions are illustrated as below:
Figure 30: RF Connector Dimensions (Unit: mm)
RM500Q-AE&RM502Q-AE_Hardware_Design
64 / 86
