Specifications; Physical Specifications; Mechanical Specifications - ADLINK Technology LEC-BTS Technical Reference

1.4

Specifications

1.4.1

Physical Specifications

Table 1-3 lists the physical dimensions of the module.
Item
Weight 0.02 kg (0.05 lb)
Height (overall) 2.50 mm (0.098 inches)
Board thickness 1.27 mm (0.05 inches)
Width 50.00 mm (1.97 inches)
Length 82.00 mm (3.23 inches)
1.4.2

Mechanical Specifications

NOTE: All dimensions are given in millimeters.
6
Table 1-3: Weight and Footprint Dimensions
Overall height is measured from the upper board
Dimension
surface to the top of the highest permanent
component (CN1 connector) on the upper board
surface. This measurement does not include the
cooling solution, which can vary. The cooling solution
will probably increase this dimension.

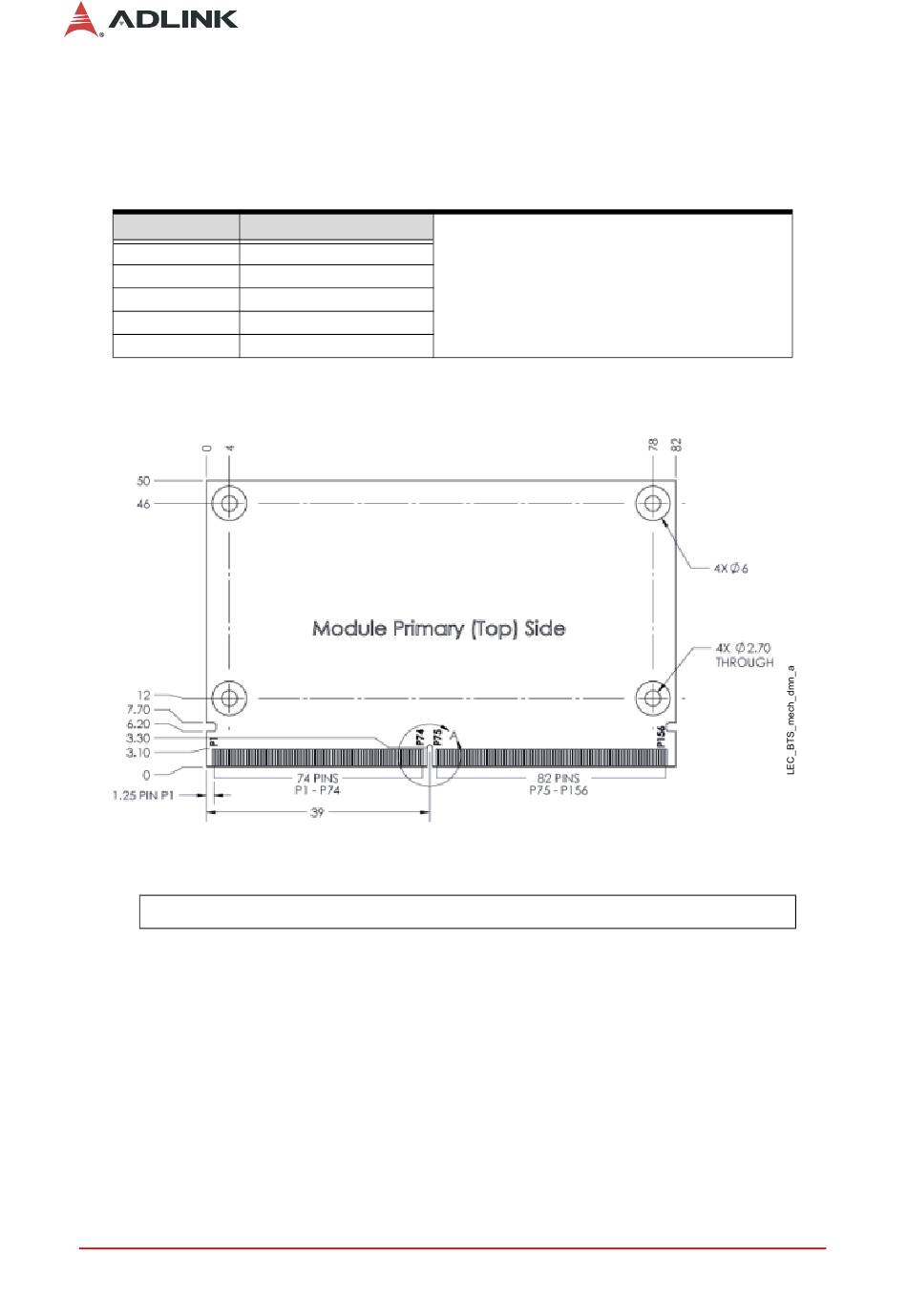

Figure 1-5: Mechanical Dimensions (Top Side)
