Connectors, Switches, And Leds - ADLINK Technology LEC-BTS Technical Reference

Key:
U9 - GbE Controller
U24 - DDR3L SDRAM
U27 - DDR3L SDRAM
1.3

Connectors, Switches, and LEDs

Table 1-2 describes the connectors, switches, and LEDs shown in Figure 1-4.
Reference
GF1 – SMARC P-S
CN1
SW1
SW2
SW3
Overview
S158

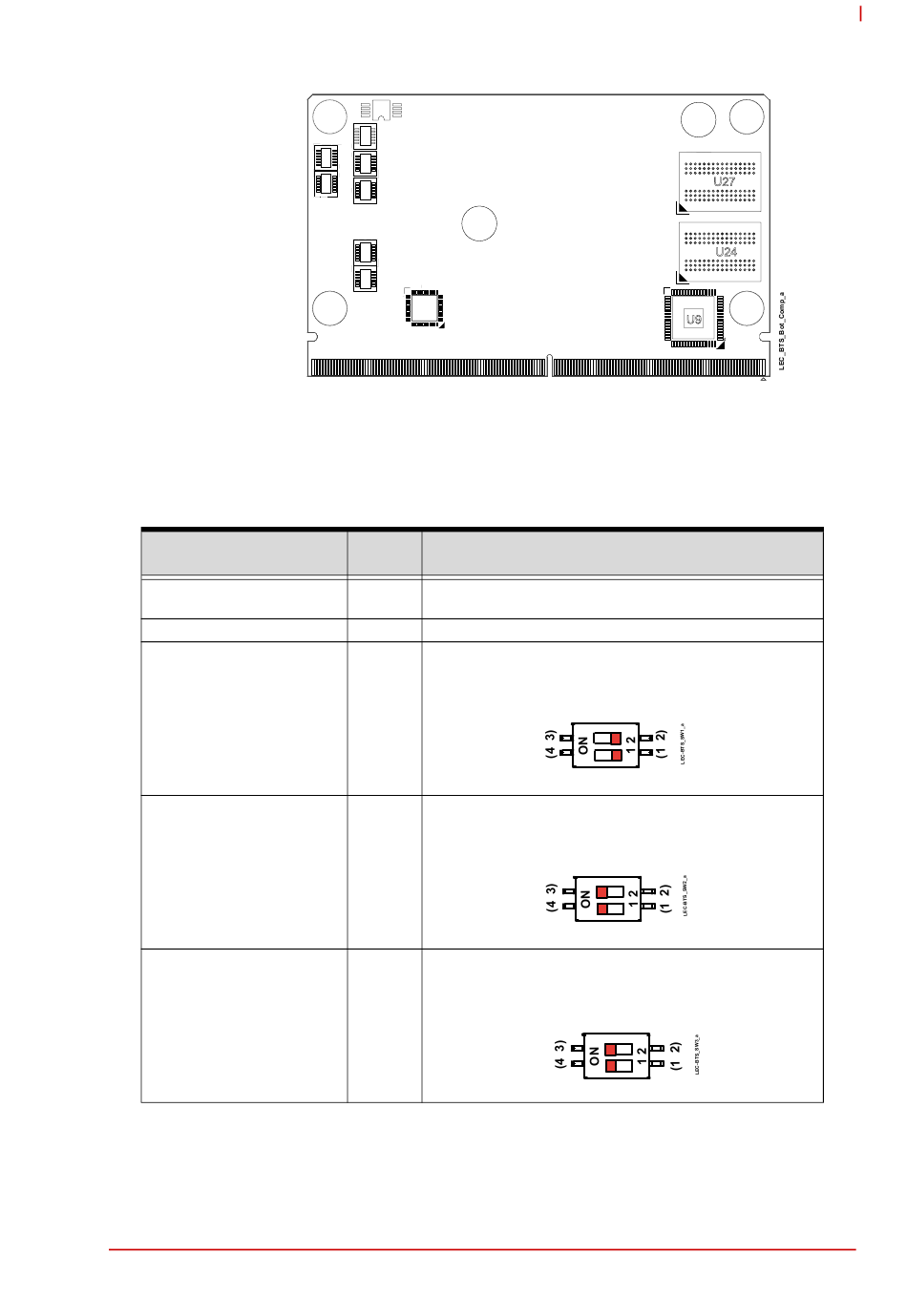

Figure 1-3: Component Locations (Bottom Side)
Table 1-2: Module Connector Description
Board
Access
Top/Botto 314-pin, MXM edge connector for routing camera, graphics,
m and I/O signals from the module to the baseboard.
Top 40-pin, DB40 connector for debug card
Top 4-pin dip switch for selecting CSI1 camera, 4L, Data1
configuration [default=off]
Top 4-pin dip switch for selecting CSI1 camera, 4L, Data2
configuration [default=on]
Top 4-pin dip switch for selecting CSI1 camera, 4L, Data3
configuration [default=on]
U27
U24
U9
S75
Description
Switch Default Setting
Switch Default Setting
Switch Default Setting
