ADLINK Technology LEC-BTS Technical Reference page 10

Reference
SW1, SW2, SW3 Configurations:
• Camera with 1 MIPI-CSI lane = SW1-SW3 switches all set to ON
• Camera with 2 MIPI-CSI lanes = SW1 (both OFF); SW2 (both ON); SW3 (both ON)
• Camera with 3 MIPI-CSI lanes = SW1 (both OFF); SW2 (both OFF); SW3 (both ON)
• Camera with 4 MIPI-CSI lanes = SW1-SW3 switches all set to OFF
SW4
SW5
LED1
LED2
LED3
4

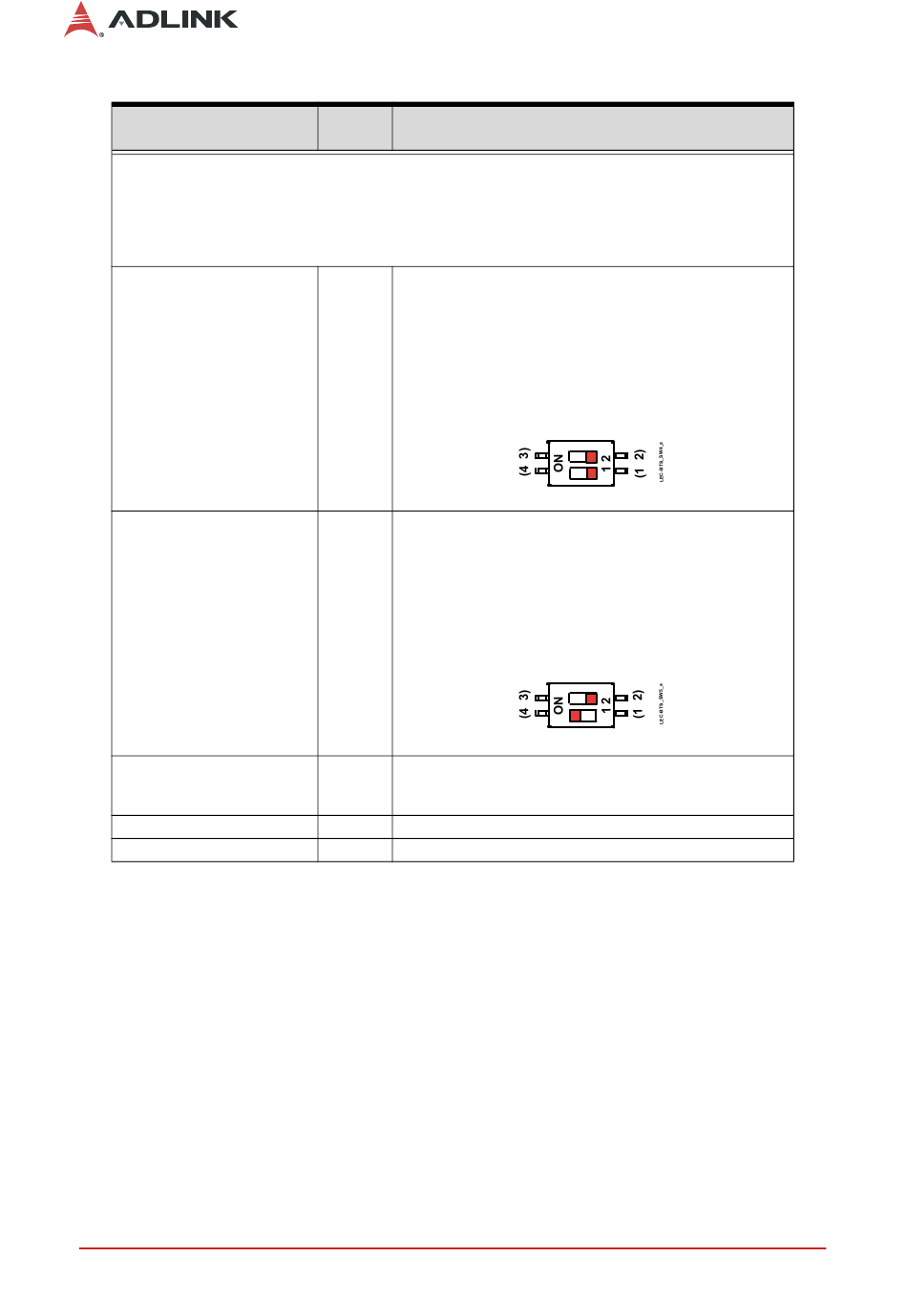

Table 1-2: Module Connector Description (Continued)
Board
Access
Top 4-pin dip switch for selecting LVDS color depth (18bit or
24bit) and loading BIOS setup defaults at Boot Up:
1 = LVDS 18bit [default]
4 = LVDS 24bit
2 = BIOS setup defaults off [default]
3 = BIOS setup defaults on
Top 4-pin dip switch for BIOS_SELECT:
1 = BIOS 2 [blue LED blinks fast]
4 = BIOS 1 and WDT Disable [default]
2 = BMC switches to BIOS 2 when BIOS 1 not detected
[default]
3 = Disables BIOS Detection Watchdog
Top Blue LED indicating system status activities for HW Reset,
SW Reset, Power Up, Power Down, Reset Button, and
Power Button
Top Green LED for Power On
Top Red LED for Watchdog Activity
Description
Switch Default Setting
Switch Default Setting
Overview
