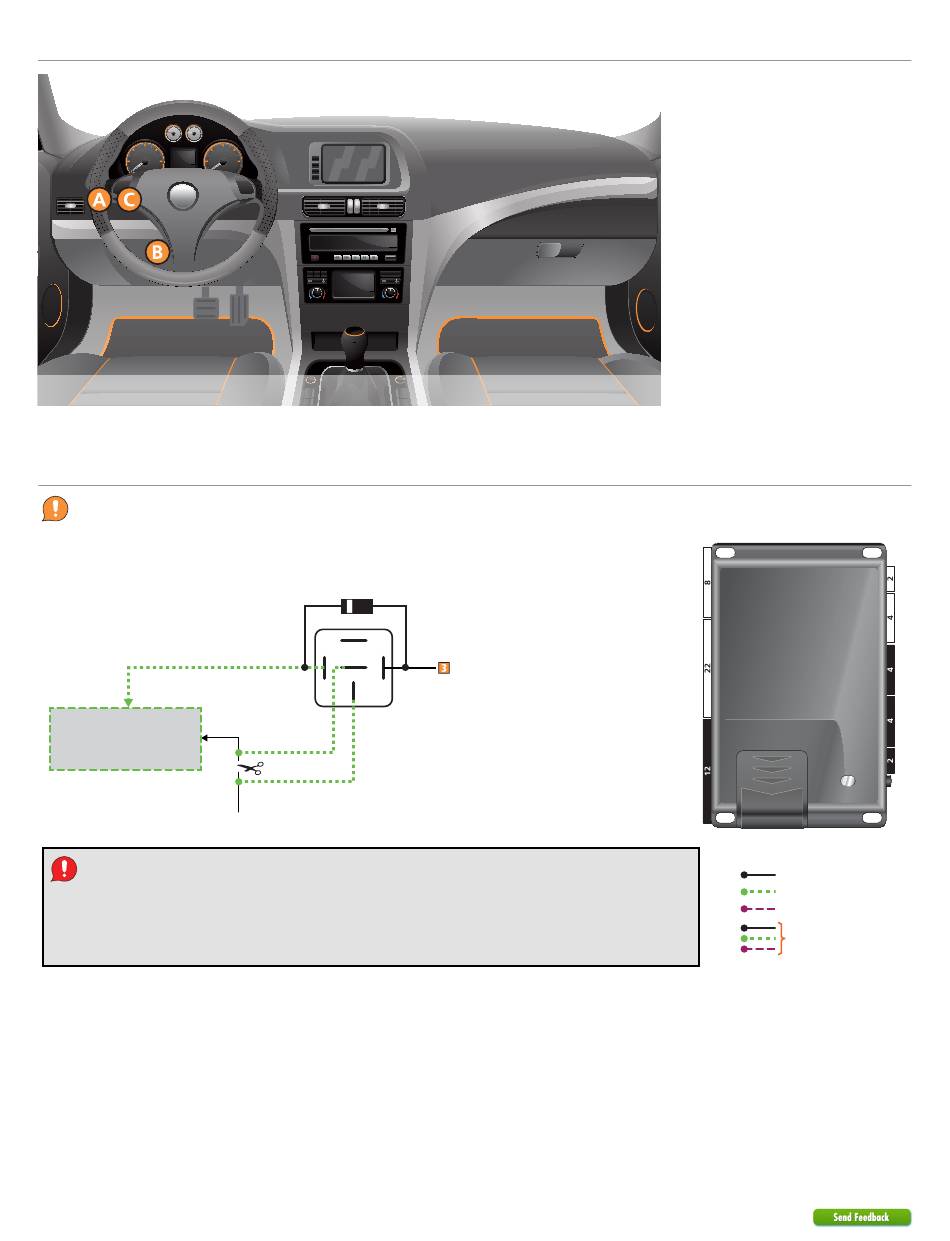

Locating components in the vehicle

Optional starter disable connection
When using an external relay, use a 1N4002 diode or larger.
Refer to the
Vehicle connections
section for wire and
connector details.
Important: When flashing your module for Security Only, the Ground When Armed (GWA)
function is pre-configured. When flashing your module for Remote Start & Security, you must
manually assign the designated output to Anti Grind (AG) Starter Kill.
(Applicable to CORE 194+.)
11
933.FORD11 2.07.198.12 2013 Ford Fusion
©2023 Directed. All rights
1A diode [1N4002+ ]
87
(+) Ignition
87a
86 85
30
Starter (conn. side)
Cut
Starter (veh. side)
(-) Ground When Armed (GWA) Output: Blue/White: 2
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
