Gas Bottle Connection Kit (Option) - Binder APT.line C 150 Operating Manual

Remove the rubber cover (b) by pulling it off.
(a)
(b)
Now fit the hose nozzle (c) in the quick acting closure socket. To remove the connection, pull the hose
nozzle off the quick acting closure socket.

4.4.3 Gas bottle connection kit (option)

C 150 (E2) 06/2011

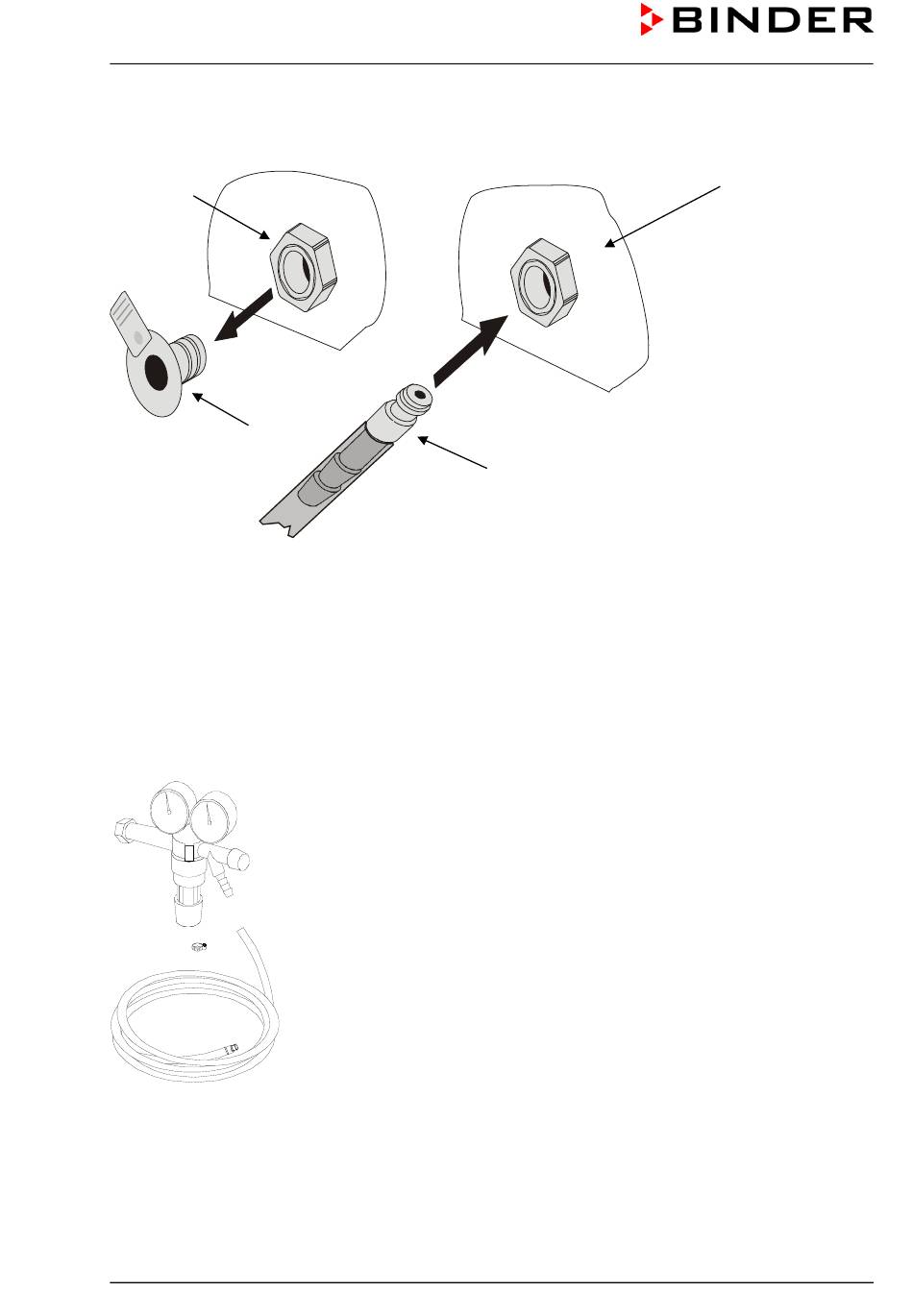

Figure 15: Connection of the hose lead to the gas bottle
The following parts for connecting one bottle with the input connectors of the
incubator are included.
• Pressure reducer with manometers for bottle pressure and outlet
pressure
• 5 m pressure hose with pre-assembled hose nozzle
• 1 hose clamp
The pressure reducer is also available as an individual accessory.
Figure 16: Gas bottle connection kit
(c)
Unit rear
