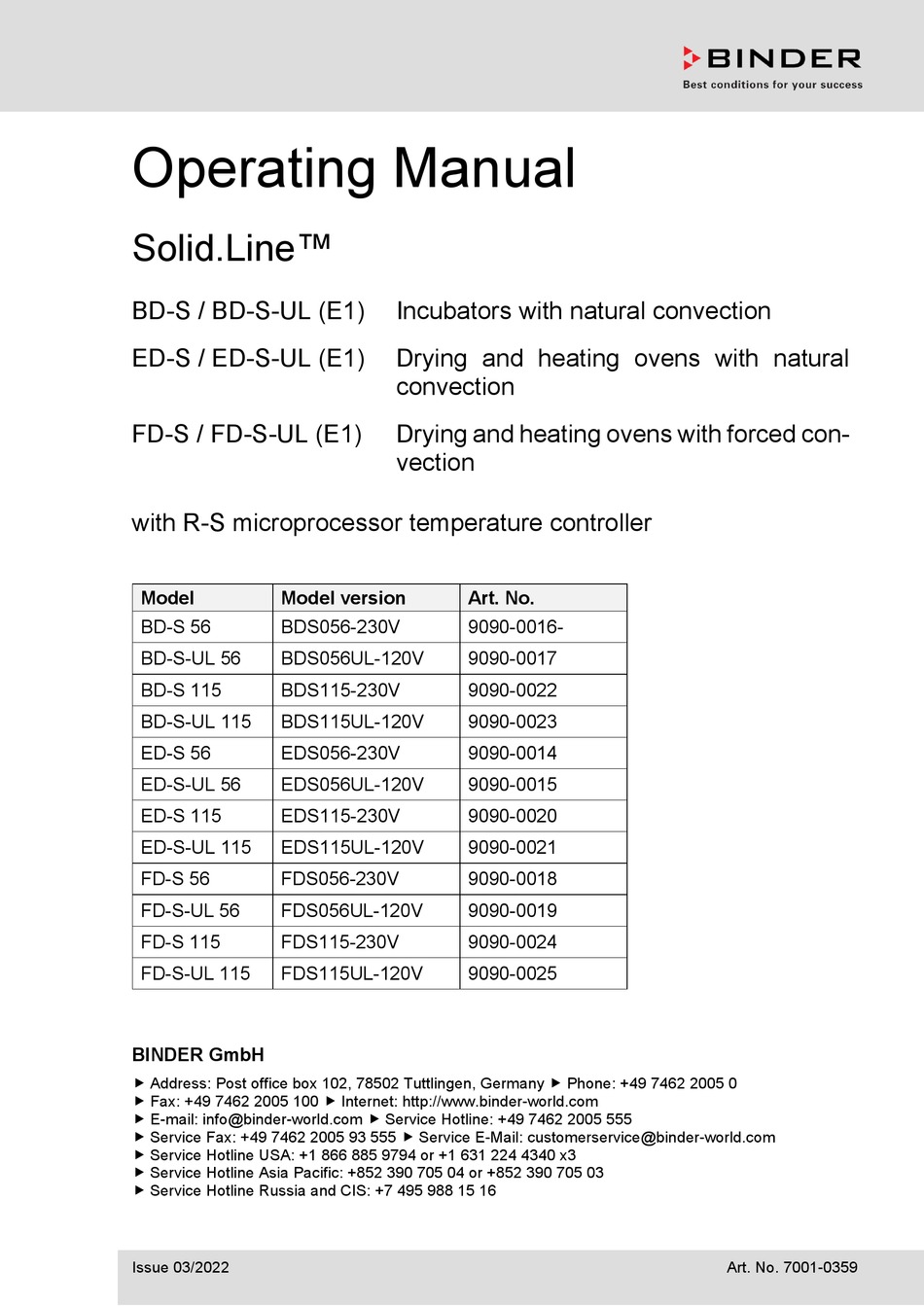

Operating Manual
Solid.Line™
BD-S / BD-S-UL (E1)
ED-S / ED-S-UL (E1)
FD-S / FD-S-UL (E1)
with R-S microprocessor temperature controller
Model
Model version
BD-S 56
BDS056-230V
BD-S-UL 56
BDS056UL-120V
BD-S 115
BDS115-230V
BD-S-UL 115
BDS115UL-120V
ED-S 56
EDS056-230V
ED-S-UL 56
EDS056UL-120V
ED-S 115
EDS115-230V
ED-S-UL 115
EDS115UL-120V
FD-S 56
FDS056-230V
FD-S-UL 56
FDS056UL-120V
FD-S 115
FDS115-230V
FD-S-UL 115
FDS115UL-120V
BINDER GmbH
Address: Post office box 102, 78502 Tuttlingen, Germany Phone: +49 7462 2005 0
Fax: +49 7462 2005 100 Internet: http://www.binder-world.com
E-mail: info@binder-world.com Service Hotline: +49 7462 2005 555
Service Fax: +49 7462 2005 93 555 Service E-Mail: customerservice@binder-world.com
Service Hotline USA: +1 866 885 9794 or +1 631 224 4340 x3
Service Hotline Asia Pacific: +852 390 705 04 or +852 390 705 03
Service Hotline Russia and CIS: +7 495 988 15 16
Issue 03/2022
Incubators with natural convection
Drying and heating ovens with natural
convection
Drying and heating ovens with forced con-
vection
Art. No.
9090-0016-
9090-0017
9090-0022
9090-0023
9090-0014
9090-0015
9090-0020
9090-0021
9090-0018
9090-0019
9090-0024
9090-0025
Art. No. 7001-0359
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Binder Solid.Line BD-S 56
Summary of Contents for Binder Solid.Line BD-S 56
- Page 1 Fax: +49 7462 2005 100 Internet: http://www.binder-world.com E-mail: info@binder-world.com Service Hotline: +49 7462 2005 555 Service Fax: +49 7462 2005 93 555 Service E-Mail: customerservice@binder-world.com Service Hotline USA: +1 866 885 9794 or +1 631 224 4340 x3 ...
-
Page 2: Table Of Contents
Content SAFETY ........................4 Personnel Qualification ........................4 Operating manual ..........................4 Legal considerations ........................... 4 1.3.1 Intellectual property ........................5 Structure of the safety instructions ...................... 5 1.4.1 Signal word panel ........................5 1.4.2 Safety alert symbol ........................6 1.4.3 Pictograms .......................... - Page 3 12.1 General information, personnel qualification..................28 12.2 Maintenance intervals, service ......................29 12.3 Simple troubleshooting ........................29 12.4 Sending the chamber back to BINDER GmbH ................. 31 13. DISPOSAL......................31 13.1 Disposal of the transport packing ...................... 31 13.2 Decommissioning ..........................31 13.3 Disposal of the chamber in the Federal Republic of Germany ............
-
Page 4: Safety
In no event shall BINDER be held liable for any damages, direct or incidental arising out of or related to the use of this manual. -
Page 5: Intellectual Property
All obligations on the part of BINDER derive from the respective purchase contract, which also contains the entire and exclusively valid statement of warranty administration and the general terms and conditions, as well as the legal regu- lations valid at the time the contract is concluded. -
Page 6: Safety Alert Symbol
1.4.2 Safety alert symbol Use of the safety alert symbol indicates a risk of injury. Observe all measures that are marked with the safety alert symbol in order to avoid death or injury. 1.4.3 Pictograms Warning signs Electrical hazard Hot surface Explosive atmosphere Stability hazard Lifting hazard... -
Page 7: Word Message Panel Structure
Figure 1: Position of labels on the chamber front (examples) Keep safety labels complete and legible. Replace safety labels that are no longer legible. Contact BINDER Service for these replacements. BD-S / BD-S-UL, ED-S / ED-S-UL, FD-S / FD-S-UL (E1) 03/2022... -
Page 8: Type Plate
Figure 2: Type plate (example BD-S 115-230V regular chamber) Indications of the type plate (example) Indication Information BINDER Manufacturer: BINDER GmbH BD-S 115 Model designation Incubator Chamber name: Incubator Drying and heating oven Chamber name: Drying and heating oven Serial No. -
Page 9: General Safety Instructions On Installing And Operating The Chambers
(for Germany: DGUV guidelines 213-850 on safe working in laborato- ries, issued by the employers’ liability insurance association). BINDER GmbH is only responsible for the safety features of the chamber provided skilled electricians or qualified personnel authorized by BINDER perform all maintenance and repair, and if components relating to chamber safety are replaced in the event of failure with original spare parts. -
Page 10: Intended Use
The charging material shall not contain any corrosive ingredients that may damage the machine compo- nents. Such ingredients include in particular acids and halides. Any corrosive damage caused by such ingredients is excluded from liability by BINDER GmbH. BD-S / BD-S-UL, ED-S / ED-S-UL, FD-S / FD-S-UL (E1) 03/2022... - Page 11 The requirements described in the Operating Manual for installation site and ambient conditions (chap. 3.4) must be met. WARNING: If customer should use a BINDER chamber running in non-supervised continu- ous operation, we strongly recommend in case of inclusion of irrecoverable specimen or samples to split such specimen or samples and store them in at least two chambers, if this is feasible.
-
Page 12: Foreseeable Misuse
Foreseeable Misuse Other applications than those described in chap. 1.8 are not approved. This expressly includes the following misuses (the list is not exhaustive), which pose risks despite the inherently safe construction and existing technical safety equipment: • Non-observance of Operating Manual •... - Page 13 • Absence of a plausibility check to rule out erroneous inscription of electrical components • Performance of repair work by untrained/insufficiently qualified personnel • Inappropriate repairs which do not meet the quality standard specified by BINDER • Use of replacement parts other than BINDER original replacement parts •...
-
Page 14: Chamber Description

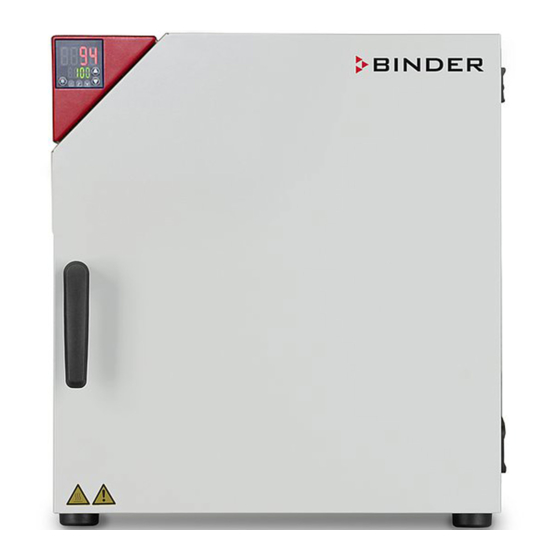

Chamber description BINDER incubators BD-S / BD-S-UL and drying and heating ovens ED-S / ED-S-UL and FD-S / FD-S-UL are equipped with an electronic PID-controller with digital display. The incubators BD-S / BD-S-UL indicate the temperature with an accuracy of a tenth of a degree. -
