Binder 9040-0078 Operating Manual

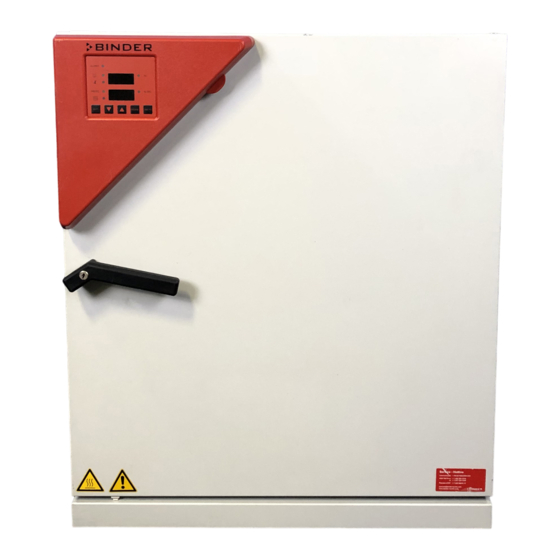

Co2 incubators with fpi-sensor system and display controller rp1
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operating Manual
APT.line™ C 150 (E2)
CO
Incubators
2
with FPI-sensor system
and display controller RP1
Model
Art. No.
C150
9040-0078, 9140-0078
C150
9040-0081, 9140-0081
C150-UL
9040-0079, 9140-0079
C150-UL
9040-0082, 9140-0082
C150
9040-0080, 9140-0080
C150
9040-0083, 9140-0083
BINDER GmbH
Address
Tel.
Fax
Internet
E-mail
Service Hotline
Service Fax
Service E-Mail
Service Hotline USA
Service Hotline Asia Pacific
Service Hotline Russia and CIS +7 495 98815 17
Issue 12/2012
Door hinges
right
left
right
left
right
left
Post office box 102
D-78502 Tuttlingen
+49 7462 2005 0
+49 7462 2005 100
http://www.binder-world.com
info@binder-world.com
+49 7462 2005 555
+49 7462 2005 93 555
service@binder-world.com
+1 866 885 9794 or +1 631 224 4340 x3
+852 39070500 or +852 39070503
Voltage
230 V
230 V
115 V
115 V
100 V
100 V
Art. No. 7001-0172

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9040-0078 and is the answer not in the manual?

Questions and answers

Related Manuals for Binder 9040-0078

Summary of Contents for Binder 9040-0078

  • Page 1 Operating Manual APT.line™ C 150 (E2) Incubators with FPI-sensor system and display controller RP1 Model Art. No. Door hinges Voltage C150 9040-0078, 9140-0078 right 230 V C150 9040-0081, 9140-0081 left 230 V C150-UL 9040-0079, 9140-0079 right 115 V C150-UL 9040-0082, 9140-0082...

  • Page 2: Ec - Declaration Of Conformity

    EC – declaration of conformity EG – KONFORMITÄTSERKLÄRUNG EC - DECLARATION OF CONFORMITY CE - DECLARATION DE CONFORMITE Anbieter / Supplier / Fournisseur: BINDER GmbH Anschrift / Address / Adresse: Im Mittleren Ösch 5, D-78532 Tuttlingen Produkt / Product / Produit: -Inkubator Incubator Incubateur à...
  • Page 3 Die oben beschriebenen Produkte sind konform mit folgenden harmonisierten Normen: The products described above are in conformity with the following harmonized standards: Les produits décrits ci-dessus sont conformes aux normes harmonisées suivantes: Sicherheit / safety / sécurité: EN 61010-1:2010 Sicherheitsbestimmungen für elektrische Mess-, Steuer-, Regel- und Laborgeräte –...
  • Page 4 D-78532 Tuttlingen, 21.08.2012 BINDER GmbH P. M. Binder B. Hofmann Geschäftsführender Gesellschafter Leiter F & E Managing Director Director R & D Directeur général Chef de service R&D 3 / 3 C 150 (E2) 12/2012 page 4/90...

  • Page 5: Product Registration

    Product registration C 150 (E2) 12/2012 page 5/90...

  • Page 6: Table Of Contents

    Contents EC – declaration of conformity ........................2 Product registration ............................5 SAFETY ........................9 Legal considerations ........................... 9 Structure of the safety instructions ...................... 9 1.2.1 Signal word panel ........................9 1.2.2 Safety alert symbol ......................... 10 1.2.3 Pictograms ..........................10 1.2.4 Word message panel structure ....................
  • Page 7 CONTROLLER RP1 SETTINGS ................41 Altitude of the installation site above sea level ................. 41 Entering the set points of temperature and CO ................43 TEMPERATURE SAFETY DEVICES ..............44 Over temperature protective device (class 1) ................... 44 Safety controller (temperature safety device class 3.1) ..............44 9.2.1 Setting the safety controller set point type ................
  • Page 8 16.1 Maintenance intervals, service ......................71 16.2 Checking the air jacket heating fan ....................71 16.3 Gas inlet fine filter ..........................71 16.4 Sending the unit back to BINDER GmbH ..................72 17. DISPOSAL......................72 17.1 Disposal of the transport packing ...................... 72 17.1.1...

  • Page 9: Safety

    Understanding and observing the instructions in this operating manual are prerequisites for hazard-free use and safety during operation and maintenance. In no event shall BINDER be held liable for any dam- ages, direct or incidental arising out of or related to the use of this manual.

  • Page 10: Safety Alert Symbol

    WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious (irreversible) injury CAUTION Indicates a potentially hazardous situation which, if not avoided, may result in moderate or minor (reversible) injury CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result in damage to the product and/or its functions or to property in its proximity.

  • Page 11: Word Message Panel Structure

    Prohibition signs Do NOT touch Do NOT spray with Do NOT climb water Information to be observed in order to ensure optimum function of the product. 1.2.4 Word message panel structure Type / cause of hazard. Possible consequences. Instruction on how to avoid the hazard: prohibition ...

  • Page 12: Type Plate

    C 150-UL (door hinged right) C 150-UL (door hinged left) Keep safety labels complete and legible. Replace safety labels that are no longer legible. Contact BINDER Service for these replacements. Type plate Figure 5: Position of type plate C 150 (E2) 12/2012...
  • Page 13 DIN 12880 Temperature safety device acc. to standard DIN 12880 Class Temperature safety device, class 3.1 Art. No. 9040-0078 Art. No. 9040-0078 Project No. (Special application acc. to project no.) 1,40 kW Nominal power 1.40 kW 230 V 1 N ~...

  • Page 14: General Safety Instructions On Installing And Operating The Co Incubator

    (for Germany). BINDER GmbH is only responsible for the safety features of the unit provided skilled electricians or quali- fied personnel authorized by BINDER perform all maintenance and repair, and if components relating to chamber safety are replaced in the event of failure with original spare parts.

  • Page 15: Precautions When Working With Co Gas

    The CO incubators were produced in accordance with VDE regulations and were routinely tested in ac- cordance to VDE 0411-1 (IEC 61010-1). CAUTION The glass door and the inner chamber will become hot during operation. Danger of burning. Do NOT touch the glass door, the inner surfaces or the charging material during opera- tion.

  • Page 16: Precautions When Handling Gas Cylinders

    (chap. 16) is part of the intended use. Other applications are not approved. WARNING: If customer should use a BINDER chamber running in non-supervised continu- ous operation, we strongly recommend in case of inclusion of irrecoverable specimen or samples to split such specimen or samples and store them in at least two chambers, if this is feasible.

  • Page 17: Unit Description

    A highly precise, drift-free CO infrared measuring system in combination with the permanent mixture of gas through a special proprietary gas mixing head developed by BINDER allows precise and con- stant CO concentrations for long periods. This creates optimum growth conditions for cultures. The CO sensor can be removed from the inner chamber by hand and cleaned with suitable detergents if needed.

  • Page 18: Unit Overview

    Unit overview (10) Figure 7: CO incubator C 150 (door hinged right) Triangle instrument panel with RP1 controller for temperature and CO and main power switch (2) Gas mixing head CO sensor Pt 100 temperature sensor Shelves Lower housing cover Silicone measuring port Inner glass door (10)

  • Page 19: Connection Panel At The Rear Of The Unit

    2.3 Connection panel at the rear of the unit (11) (12) (13) (14) (15) Figure 8: Rear connection panel C 150 (11) Power cable (12) Miniature fuse (13) Connection socket for zero-voltage relay alarm contact (14) Quick acting closure socket for CO gas cylinder (15) Ethernet interface for computer communication (option)

  • Page 20: Unit Doors

    Second-hand units are units that were used for a short time for tests or exhibitions. They are thoroughly tested before resale. BINDER ensures that the chamber is technically sound and will work flawlessly. Second-hand units are marked with a sticker on the unit door. Please remove the sticker before commis- sioning the unit.

  • Page 21: Guidelines For Safe Lifting And Transportation

    Figure 10: Lift the unit with the aid of 4 people Permissible ambient temperature range for transport: -10 °C / 14°F to +60 °C / 140°F. You can order transport packing and rolling pallets for transportation purposes from BINDER Service. C 150 (E2) 12/2012...

  • Page 22: Storage

    Storage Intermediate storage of the unit is possible in a closed and dry room. Observe the guidelines for tempo- rary decommissioning (chap. 17.2). Permissible ambient temperature range for storage: -10 °C / 14°F to +60 °C / 140°F. Permissible ambient humidity: max. 70% r.H., non-condensing When after storage in a cold location you transfer the unit to its warmer installation site, condensation may form in the inner chamber, on the housing or in the sensor compartment of the CO measurement.

  • Page 23: Installation And Connections

    Avoid direct solar radiation on the unit. Permissible ambient humidity: 70% r.H. max., non-condensing. Installation height: max. 2000 m / 6561.7 ft above sea level. After the incubator has been turned on for the first time, enter the altitude of the site above sea level into the RP1 controller (chap. 8.1). Wall distances: rear 100 mm / 3.94 in, sides 50 mm / 1.97 in.

  • Page 24: Co 2 Sensor

    sensor 4.2.1 General notes Connect or remove the CO sensor without rotating and only when the incubator is turned off. Remove the CO sensor before removing or replacing its filter cap. The PTFE filter of the CO sensor prevents dirt and humidity from intruding into the measuring cell.

  • Page 25: Water Pan

    Water pan The water pan permits high humidity without condensation on the inner walls of the incubator. Place the positioning frame on the two marks at the bot- tom of the inner chamber. Then put the water pan in the positioning frame. Make sure that the water pan has firm contact with the inner chamber bottom and rests...

  • Page 26: Connecting The Co Gas Cylinder

    The valve of the gas cylinder always must be closed before screwing on or unscrewing the gas hose. WARNING Opening the cylinder valve when the cylinder is not connected. Sudden release of the stored pressure energy. Risk of injury.  Close the gas cylinder valve before connecting or removing the gas hose. After connecting the gas cylinder, check all gas connections for leaks (e.g.
  • Page 27 The following steps are required: Ensuring the correct CO output pressure A gas supply pressure above 2.5 bar / 36 psi will result in unit damage. Use a pressure reducer and make sure to avoid any excessive outlet pressure when connecting the gas hose to the incubator.
  • Page 28 Only use the supplied hose nozzle to connect to the quick acting closure socket. Otherwise, the quick acting closure socket may leak, and/or it may become impossible to con- nect the original hose nozzle. In this case, please contact BINDER Service. Remove the rubber cover (b) by pulling it off.

  • Page 29: Gas Cylinder Connection Kit (Option)

    4.4.3 Gas cylinder connection kit (option) The gas cylinder connection kit for CO (Art. no. 8012-0014) includes the following parts for connecting a gas cylinder to the CO incubator: Pressure reducer with manometers for cylinder pressure (high pressure gauge) and outlet pressure (low pressure gauge) 5 m pressure hose with pre-assembled hose nozzle for quick acting clo- sure socket 1 hose clamp to connect the gas hose to the pressure reducer...

  • Page 30: Electrical Connection

    Electrical connection The CO incubator C 150 has a fixed power supply connection cable 1800 mm / 70.87 inches in length and a shock-proof plug. Voltage 230 V (1N~) +/- 10%, 50/60 Hz Prior to connection and start-up, check the power supply voltage. Compare the values to the specified data located on the unit’s type plate (centrally located at the bottom of the left-hand side of the unit, see chap.

  • Page 31: Start Up

    Start up After connecting the supply lines, turn on the unit by the main power switch (2). After turning on the incubator for the first time, enter the altitude of the site above sea level into the con- troller RP1 (chap. 8.1). Warming chambers may release odors in the first few days after commissioning.

  • Page 32: Preset Factory Parameters

    C 150 was last used for, for hygiene purposes you should clean and disinfect or sterilize the interior (chap. 15). WARNING: If customer should use a BINDER chamber running in non-supervised continu- ous operation, we strongly recommend in case of inclusion of irrecoverable specimen or samples to split such specimen or samples and store them in at least two chambers, if this is feasible.

  • Page 33: Controller Rp1 Operating Modes

    Open the CO supply's pressure reducer valve and set a CO primary pressure of 2.0 bar / 29 psi. Set the main power switch (2) to position I. The pilot lamp shows the unit is ready for operation. There is a subsequent brief startup phase in which the display items at the edges of the upper controller display light up successively.

  • Page 34: Selecting And Setting The Operating Functions

    Selecting and setting the operating functions The controller's lower display always shows the operating function (e.g. “SP” = temperature set point) and the upper display shows the associated value (e.g. 37.0). When the value in the upper display shows the temperature in °C or a CO concentration in % CO , the corresponding yellow LED to the right of the display will light up.
  • Page 35 Operating functions that can be set in operating mode HAND Display Setting range Operating function Temperature set point Must be at least 7 °C / 12.6°F above the ambient temperature in order to 0.0 °C to 50.0 °C ensure a stable temperature inside the C 150. set point 0.0 vol.-% to 20.0 Common value: 5.0 vol.-% (factory setting), or depending on the NaHCO...

  • Page 36: Operating Mode User: Advanced Settings

    Operating mode USER: Advanced settings In Normal display, press “MODE” and “EXIT” simultaneously for 3 seconds to access the options for selecting the C 150's operating modes. Figure 21: Selecting the operating mode Press “▲”until the value “OP.U” (operating mode USER) appears in the upper display. Press “MODE”.
  • Page 37 Operating functions in operating mode USER Display Setting range Operating function Temperature set point Must be at least 7 °C / 12.6 °F above the ambient temperature in order to 0.0 °C to 50.0 °C ensure a stable temperature inside the C 150. set point 0.0 vol.-% to 20.0 Common value: 5.0 vol.-% (factory setting), or depending on the NaHCO...
  • Page 38 Display Setting range Operating function Safety controller set point when set point type is “Limit” (Lit) Limit value, i.e., maximum permitted absolute temperature value. When exceeded, the safety controller triggers an alarm. For technical reasons, 0.0 °C to 60.0 °C the limit value should exceed the temperature set point by at least 2 °C.
  • Page 39 Display Setting range Operating function Firmware revision of main controller for service / maintenance pur- poses. Firmware revision of safety controller for service / maintenance pur- poses. Data record (year) for service / maintenance purposes. Data record (month) for service / maintenance purposes. Data record (day) for service / maintenance purposes.

  • Page 40: Operating Mode Lock: Locking/Unlocking Of The Operating Functions' Settings By Operating Mode Hand

    Operating mode LOCK: Locking/unlocking of the operating functions’ set- tings by operating mode HAND To avoid operating functions being changed by unauthorized persons, you can lock the operating func- tions’ settings. In operating mode HAND, define a 3-digit numeric password in operating function “PA.H”. Locking the operating functions of operating mode HAND: In Normal display, press “EXIT”...

  • Page 41: Performance During And After Power Failures And Shut Down

    Enter the password using the “▲” and “▼”buttons. Confirm the entry with “MODE”. The controller returns to Normal display. If you have selected any password other than zero, operating mode HAND is temporarily unlocked. Changing the operating functions in operating mode HAND is now possible until a period of 30 sec. has passed with no activity.
  • Page 42 Toggle to operating mode USER Operating mode HAND Operating mode USER If operating mode HAND appears, toggle to operating mode USER with the arrow keys. Password request Password entry (factory setting: “1”). Entry of altitude Entry of the current altitude [km] above sea level with arrow keys. After 30 seconds the controller reverts to Normal Display automatically.

  • Page 43: Entering The Set Points Of Temperature And Co

    Entering the set points of temperature and CO Normal Display Entry of temperature set point Entry of temperature set point with arrow keys. Entry of CO set point Entry of CO set point with arrow keys. After 30 seconds the controller reverts to Normal Display automatically. When setting a lower temperature set point, in order to save time, we recommend cooling down the unit by turning it off and opening both doors of the unit.

  • Page 44: Temperature Safety Devices

    If one of the over temperature protective devices permanently turns off the unit, the user cannot restart the device again. The protective cut-off devices are located internally. Only a service specialist can re- place them. Therefore, please contact an authorized service provider or BINDER Service. Safety controller (temperature safety device class 3.1) The incubator is equipped with an over temperature safety device class 3.1 acc.

  • Page 45: Setting The Safety Controller Set Point Type

    The settings of the safety controller are inactive during sterilization (chap. 15.4). They become functional again following abortion of the sterilization and/or the restart of the unit at the main power switch. 9.2.1 Setting the safety controller set point type Select the safety controller set point type in operating mode USER (chap.

  • Page 46: Setting The Safety Controller Set Point

    12 x Selecting the set point type Selecting set point type “Limit” Selecting set point type “Offset” Change using the arrow keys Select the desired set point type. After 30 seconds the controller reverts to Normal Display automatically. 9.2.2 Setting the safety controller set point You can check and set the safety controller set point in operating modes HAND (chap.
  • Page 47 Toggle to operating mode USER Operating mode HAND Operating mode USER If operating mode HAND appears, toggle to operating mode USER with the arrow keys. Password request Password entry (factory setting: “1”). 10 x Depending on the selected set point type (chap. 9.2.1) a different display appears: Entry of limit value or offset value With set point type Limit: With set point type Offset:...

  • Page 48: Alarm Functions

    Alarm functions 10.1 Alarm functions overview When operational faults occur, the controller triggers visual and audible alarm signals. The LED “ALARM” always flashes when an alarm signal is emitted. A zero-voltage relay alarm output (13) (chap. 10.3) permits transmission of the alarm e.g., to a central monitoring system.

  • Page 49: Zero-Voltage Relay Alarm Output

    10.3 Zero-voltage relay alarm output Collective alarm output via the zero-voltage relay alarm contact The CO incubator is equipped at the rear with a zero-voltage relay output (13) for the temperature and , which permits the transmission of alarms to an external monitoring system in order to monitor and record the alarm signals.

  • Page 50: Safety Controller Temperature Alarm

    C 150 has cooled down. If points 1 to 4 do not reveal the source of the fault, it may be that the unit is faulty. Please contact BINDER Service. 10.5 Temperature tolerance range alarm (high and low temperature) Main controller temperature alarm: The temperature has risen above or fallen below the temperature alarm threshold.

  • Page 51: Door Open

    Turn on the unit again. You can restart normal operation as soon as the requested values have equilibrated. If the same alarm recurs, please contact BINDER Service. 10.6 Door open The open and closed position of the unit door is controlled via the door contact switch. If the door is open, the temperature and CO controls turn off.

  • Page 52: Co Tolerance Range Alarm (Co Over/Under Concentration)

    Open both unit doors for approx. 30 seconds. Respect the precautions when working with CO (chap. 1.6). Normal operation can be restarted, as soon as the requested values have been readjusted. If the same alarm recurs, please contact BINDER Service. 10.8 CO pressure too low The CO primary pressure at the intake valve is less than 0.3 bar / 4.4 psi below the ambient air pressure.

  • Page 53: Temperature Sensor Failure

    Audible alarm: buzzer (intermittent sound) Switching the zero-voltage relay alarm output Actions: Turn off the C 150. If necessary, clean and disinfect the C 150. Automatic sterilization is not possible with this fault. Please contact BINDER Service. C 150 (E2) 12/2012 page 53/90...

  • Page 54: Failure Of Co Sensor

    Replace the power plug. Turn the C 150 on with the main power switch. If the fault shows again, the unit could be faulty. Please contact BINDER Service. Repair must only be performed by qualified service personnel authorized by BINDER.

  • Page 55: Reference Measurements

    You need only use an accurate pH indicator or a pH-measuring electrode, which are standard equipment in cell culture laboratories. This method is not suitable for calibrating the BINDER FPI sensor system. This method is based on the acid base equilibrium of the buffer system in the culture media.

  • Page 56: Measuring Co Directly Via Chemical Indicator Tubes

    All the necessary equipment must be supplied by one manufacturer only and in a defined test system. Note: These test systems are not very accurate. A typical accuracy is around 10% of the full-scale value. These test systems are not suitable for calibrating the BINDER FPI sensor system. Figure 28: Example of chemical indicator...

  • Page 57: Temperature Reference Measurement

    CO incubators. The CTM 01 is suitable both for reference measurements in certified laboratories, and for service purposes. Please contact the BINDER INDIVIDUAL team. 12.2 Temperature reference measurement When performing a temperature reference measurement using an electronic measuring, and temperature display device, it is important to use a device traceable to an acknowledged standards/calibration institu- tion (DKD, PTB for Germany) with valid calibration certificate.

  • Page 58: Base On Castors (Option)

    This could happen e.g. while opening or closing the door, cleaning, loading and unloading the unit. BINDER offers a stacking adapter for direct thermal de- coupled stacking of two incubators.

  • Page 59: Avoiding Microbial Contamination

    Avoiding microbial contamination The main types of microbial contaminants in cell and tissue culture are bacteria, fungi, yeast, mycoplas- ma, and viruses. This chapter gives an overview of potential sources of contamination and precautions and measures to eliminate them. 14.1 Cells and media Primary cultures from the original tissue Cells/cell lines from unknown sources or from cell banks: Use only cells of known and tested origin.

  • Page 60: Chamber Design And Equipment Of The Co Incubator C 150

    Condensation in the inner chamber represents a particular risk of contamination. The humidifying sys- tem with water pan with integrated condensation point developed by BINDER is an effective and easy way to ensure high humidity (95 ± 2% r.H.) inside the incubator without any condensation forming on the inner surfaces.

  • Page 61: Handling The Co Incubator C 150

    14.5 Handling the CO incubator C 150 Any manipulation of the CO incubator involves some contamination risks, from installation to opening of the doors and regular cleaning. Installation away from sources of contamination Do not place the CO incubator on the floor or close to windows and doors. Use the optional stand, if appropriate.

  • Page 62: Cleaning, Decontamination / Disinfection, And Sterilization

    We recommend using the neutral cleaning agent Art. No. Art. Nr. 1002-0016 for a thorough cleaning. Any corrosive damage that may arise following use of other cleaning agents is excluded from liability by BINDER GmbH. CAUTION Danger of corrosion. Damage to the unit.

  • Page 63: Decontamination / Chemical Disinfection Of The Co

    For chemical disinfection, we recommend the disinfectant spray Art. No. 1002-0022. Any corrosive damage that may arise following use of other disinfectants is excluded from liability by BINDER GmbH. With every decontamination / disinfection method, always use adequate personal safety con- trols.

  • Page 64: Disinfection Of The Co Sensor

    15.3 Disinfection of the CO sensor To ensure complete disinfection and proper function of the sensor, BINDER recommends a wipe disinfec- tion of the sensor head with pure alcohol or non-corrosive alcohol-based surface disinfectants. The disin- fectant must be non-corrosive and free of chlorine or any acid. We recommend using the disinfectant Art.

  • Page 65: Hot-Air Sterilization At 180 °C / 356 °F

    Recommended procedure: Turn off the unit Pull out the sensor Spray the sensor head with alcohol or wipe it clean with a soaked cloth. Observe the reaction time of the disinfectant used. Before reinserting the CO sensor, it must be completely dry. The filter in the front of the sensor only needs replacing when damaged or dirty.

  • Page 66: Procedure For Hot-Air Sterilization

    The precise duration of the entire sterilization cycle depends on the ambient temperature at the installa- tion site and can thus vary. At an ambient temperature of 25 °C / 77 °F, the total duration is approx. 12 hours. You can shorten the cooling-down time by aborting the sterilization cycle (chap. 15.5) during the cooling-down phase, i.e.
  • Page 67 Figure 33: Initial sterilization display No sterilization can be started if the CO sensor is still plugged-in. You cannot start the sterilization if the operating mode HAND is locked. This is displayed by an error message. If this happens, unlock the operating mode HAND (chap. 7.4).

  • Page 68: Aborting The Hot-Air Sterilization

    CAUTION The glass door and inner chamber become hot during sterilization. Danger of burning. Do NOT touch the glass door and inner surfaces during sterilization. CAUTION Interruption of the temperature reaction time. Ineffective sterilization. Do NOT open the unit doors during sterilization. The sterilization cycle ends after approx.

  • Page 69: Aborting The Hot-Air Sterilization Manually

    CAUTION Glass door and inner chamber become hot during sterilization. Danger of burning. Do NOT touch the glass door and inner surfaces for approx. 4 hours after aborting steri- lization. Aborting sterilization after less than 6 hours When aborting the sterilization prematurely, it may be that the cells/pathogens inside the unit have not all been killed.

  • Page 70: Aborting The Hot-Air Sterilization By Opening The Outer Door

    After a manual abortion, the C 150 reverts to its standard operational status. The indication “ - - - “ in the lower display shows that the CO sensor is disconnected. As long as the interior temperature remains above the temperature set to trigger the temperature alarm, the C 150 will trigger alarm signals.

  • Page 71: Maintenance, And Service

    Service personnel authorized by BINDER will check this filter for pollution at each maintenance interval and replace it, if appropriate, but at least once a year.

  • Page 72: Sending The Unit Back To Binder Gmbh

    16.4 Sending the unit back to BINDER GmbH If you return a BINDER product to us for repair or any other reason, we will only accept the product upon presentation of an authorization number that has previously been issued to you. An authorization number will be issued after receiving your complaint either in writing or by telephone prior to your sending the BINDER product back to us.

  • Page 73: Packing Inside The Unit, Equipment

    In this case, clean and dry the incubator running at 37 °C / 98.6 °F with doors open for at least one hour before loading it with samples. BINDER recom- mends performing a hot air sterilization of the unit before commissioning.

  • Page 74: Disposal Of The Unit In The Member States Of The Ec Except For The Federal Republic Of Germany

    Elektronikgerätegesetz, ElektroG) from 23 March 2005, BGBl. I p. 762.  Instruct BINDER Service to dispose of the device. The general terms of payment and delivery of BINDER GmbH apply, which were valid at the time of purchasing the unit.

  • Page 75: Disposal Of The Unit In Non-Member States Of The Ec

     If your distributor is not able to take back and dispose of the unit, please contact BINDER Service. Certified companies disassemble waste (used) BINDER equipment in primary substances for recycling according to directive 2002/96/EC. The devices must be free from toxic, infectious or radioactive sub- stances in order to eliminate any health hazards to the employees of the recycling companies.

  • Page 76: Troubleshooting

    115V / 208 - 240 V / 230V. Nominal temperature exceeded by 10 °C due to unit failure. Over Unit without function. Contact BINDER service. temperature protective device (class 1) responds (chap. 9.1). The miniature fuse for overcur- Check unit fuse and replace it if rent protection has triggered appropriate.
  • Page 77 Check the tube system for dirt alarm). Gas hose is dirty or obstructed. accumulation or obstruction, clean or replace it. Pressure sensor system defective Contact BINDER service. Doors not closed. Close door properly. Door gaskets defective. Replace door gaskets. cylinder is not connected Correctly connect the gas cylinder.
  • Page 78 Pull the CO sensor and remove it the CO sensor still plugged-in. from the incubator. Only qualified service personnel authorized by BINDER must perform repair. Repaired units must comply with the BINDER quality standards. C 150 (E2) 12/2012 page 78/90...

  • Page 79: Technical Description

    December 1996 by TÜV CERT). All test equipment used is subject to the administration of measurement and test equipment that is also a constituent part of the BINDER QM DIN EN ISO 9001 systems. They are controlled and calibrated to a DKD-Standard at regular intervals.

  • Page 80: C 150 Technical Data

    19.4 C 150 technical data Exterior dimensions mm / inch 680 / 26.77 Width Height (incl. feet) mm / inch 819/ 32.24 Depth mm / inch 815 / 32.09 Depth plus door handle, I-triangle mm / inch 54 / 2.13 Depth plus power supply connection and gas connec- mm / inch 60 / 2.36...

  • Page 81: Important Conversion Data For Non-Si Units

    +25 °C / 77°F and a power supply voltage fluctuation of ±10. The temperature data is determined in ac- cordance to BINDER factory standard following DIN 12880, observing the recommended wall clearances of 10% of the height, width and depth of the inner chamber.

  • Page 82: Equipment And Options C 150

    19.7 Equipment and options C 150 To operate the CO incubator, use only original BINDER accessories or accessories / compo- nents from third-party suppliers authorized by BINDER. The user is responsible for any risk arising from using unauthorized accessories. Regular equipment...

  • Page 83: Accessories And Spare Parts

    19.8 Accessories and spare parts BINDER GmbH is responsible for the safety features of the unit only, provided skilled electri- cians or qualified personnel authorized by BINDER perform all maintenance and repair, and if components relating to chamber safety are replaced in the event of failure with original spare parts.

  • Page 84: Dimensions C 150

    19.9 Dimensions C 150 C 150 (E2) 12/2012 page 84/90...

  • Page 85: Contamination Clearance Certificate

    Contamination clearance certificate Unbedenklichkeitsbescheinigung 20.1 For units located outside North America and Central America Declaration regarding safety and health Erklärung zur Sicherheit and gesundheitlichen Unbedenklichkeit The German Ordinance on Hazardous Substances (GefStofV), and the regulations regarding safety at the workplace require that this form be filled out for all products that are returned to us, so that the safety and the health of our employees can be guaranteed.
  • Page 86 Kind of transport / transporter / Transportweg/Spediteur: Transport by (means and name of transport company, etc.) Versendung durch (Name Spediteur o.ä.) __________________________________________________________________________________ Date of dispatch to BINDER GmbH / Tag der Absendung an BINDER GmbH ___________________________________________________________________________________ C 150 (E2) 12/2012 page 86/90...
  • Page 87 We are aware that, in accordance with Article 823 of the German Civil Code (BGB), we are directly liable with regard to third parties, in this instance especially the employees of BINDER GmbH, who have been Es ist uns bekannt, dass wir gegenüber Dritten –...

  • Page 88: For Units In North America And Central America

    Please complete this form and the Customer Decontamination Declaration (next 2 pages) and attach the required pictures. E-mail to: IDL_SalesOrderProcessing_USA@binder-world.com After we have received and reviewed the complete information we will decide on the issue of a RMA number. Please be aware that size specifications, voltage specifications as well as performance specifi- cations are available on the internet at www.binder-world.us...
  • Page 89 Customer (End User) Decontamination Declaration Health and Hazard Safety declaration To protect the health of our employees and the safety at the workplace, we require that this form is com- pleted by the user for all products and parts that are returned to us. (Distributors or Service Organizations cannot sign this form) NO RMA number will be issued without a completed form.
  • Page 90 4.5 Shipping laws and regulations have not been violated. I hereby commit and guarantee that we will indemnify BINDER Inc for all damages that are a con- sequence of incomplete or incorrect information provided by us, and that we will indemnify and hold harmless BINDER Inc.
