1
.
2
K
e
y
F
e
1
.
2
K
e
y
F
e

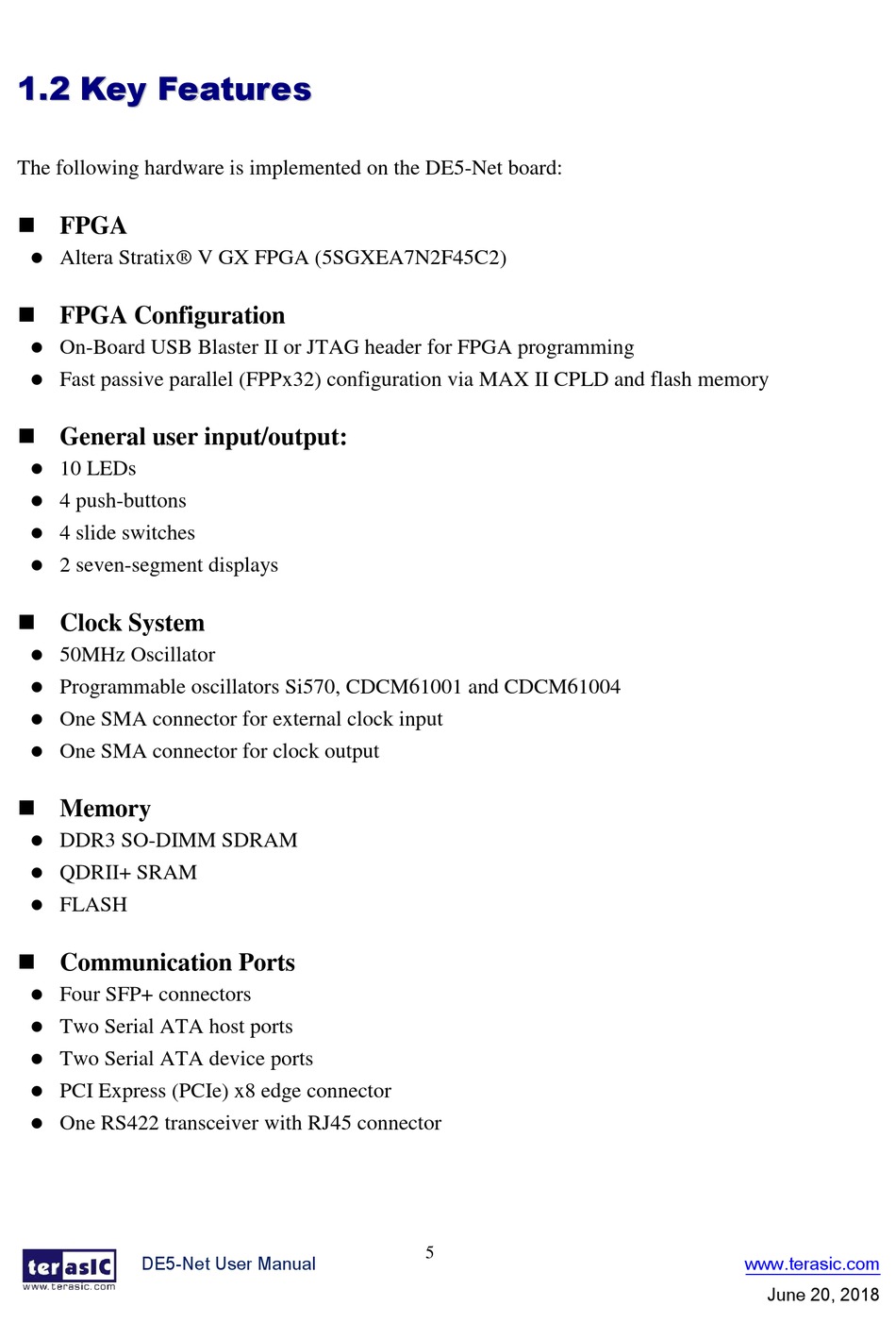

The following hardware is implemented on the DE5-Net board:
 FPGA
Altera Stratix® V GX FPGA (5SGXEA7N2F45C2)
 FPGA Configuration
On-Board USB Blaster II or JTAG header for FPGA programming
Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory
 General user input/output:
10 LEDs
4 push-buttons
4 slide switches
2 seven-segment displays
 Clock System
50MHz Oscillator
Programmable oscillators Si570, CDCM61001 and CDCM61004
One SMA connector for external clock input
One SMA connector for clock output
 Memory
DDR3 SO-DIMM SDRAM
QDRII+ SRAM
FLASH
 Communication Ports
Four SFP+ connectors
Two Serial ATA host ports
Two Serial ATA device ports
PCI Express (PCIe) x8 edge connector
One RS422 transceiver with RJ45 connector
DE5-Net User Manual
a
t
u
r
e
s
a
t
u
r
e
s
5
www.terasic.com
June 20, 2018
