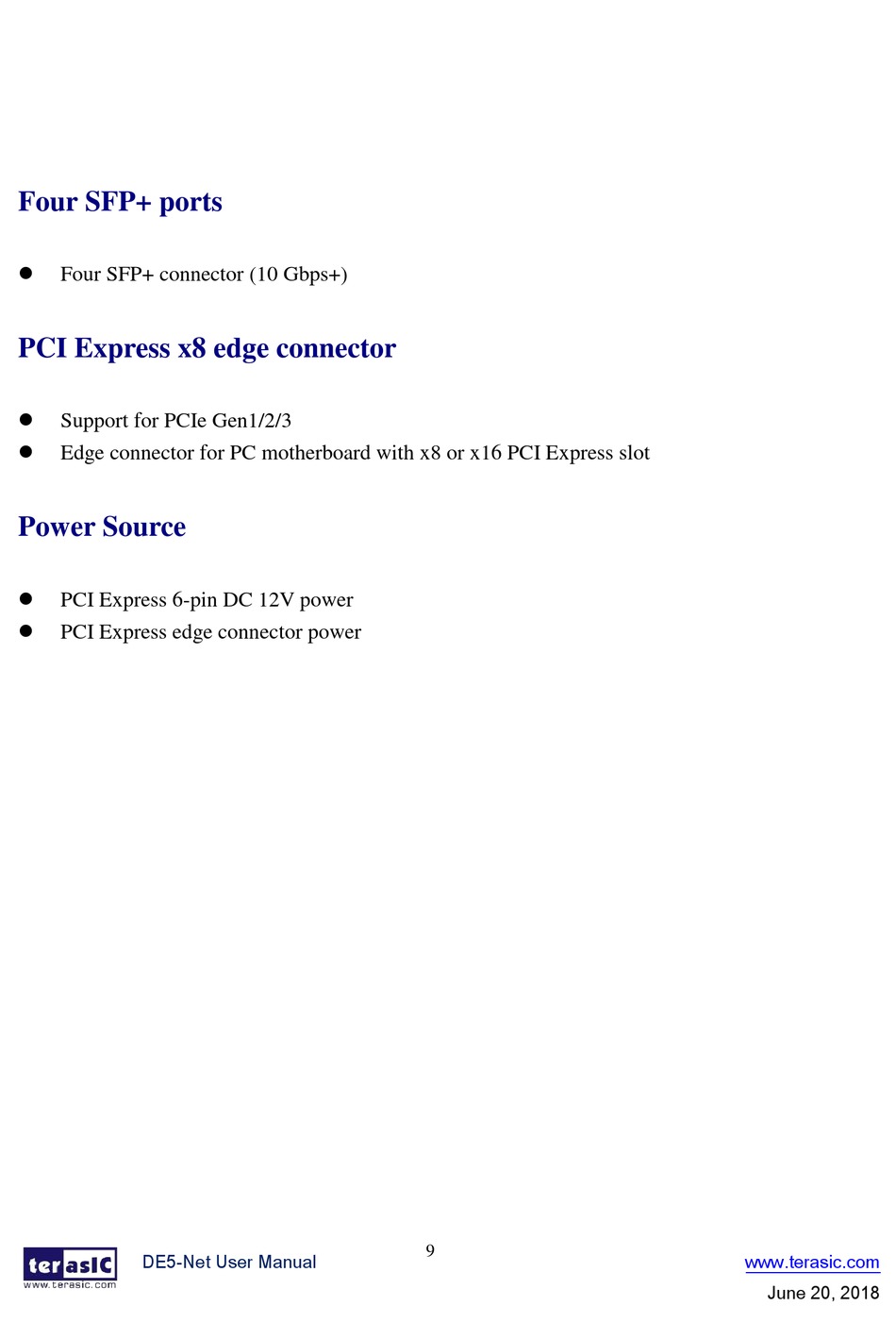

Four SFP+ ports
Four SFP+ connector (10 Gbps+)
PCI Express x8 edge connector
Support for PCIe Gen1/2/3
Edge connector for PC motherboard with x8 or x16 PCI Express slot
Power Source
PCI Express 6-pin DC 12V power
PCI Express edge connector power
DE5-Net User Manual
9
www.terasic.com
June 20, 2018
