AXIOMTEK IPC962-512-FL Series User Manual page 57

Riser card's power cable
is installed.
Internal fan module is installed.
height
width

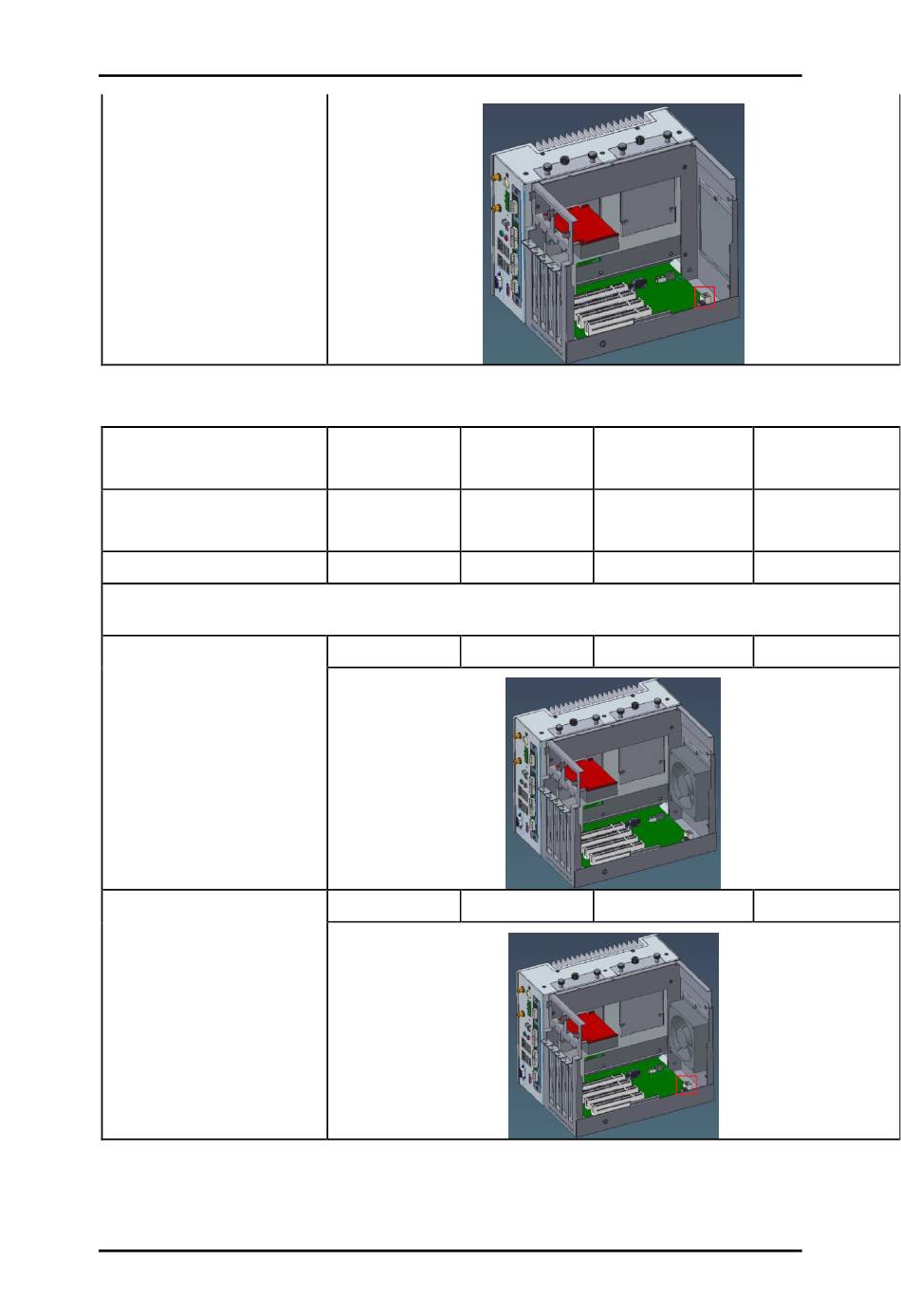

The following shows each slot's max. length for add -in card in the system with different
configurations.
1)
Riser card's power cable
is un-installed.
2)
Riser card's power cable
is installed.
Hardware Installation
Slot 1 Slot 2
(PCIe x16) (PCIe x4)
113.06 113.06
(mm) (mm)
20.32(mm) 20.32(mm)
214.07(mm) 214.07(mm)
214.07(mm) 214.07(mm)
IPC962/IPC964 Series User's Manual
Slot 3
(PCI x4 or PCI)
113.06
(mm)
20.32(mm)
214.07(mm)
185.00(mm)
Slot 4
(PCI x4 or PCI)
113.06
(mm)
20.32(mm)
214.07(mm)
185.00(mm)
