IPC962/IPC964 Series User's Manual
No. Description
1 Slot 1: PCIe x 16
2 Slot 2: PCIe x4
3 Slot 3: PCIe x4 or PCI
Note: Please note that below dimension is the maximum length for add -on
card with I/O bracket.
Note: Considering heat dissipation potential, a space of 20mm must be left
between add-on card and system.
Fan module is un-installed.
height
width

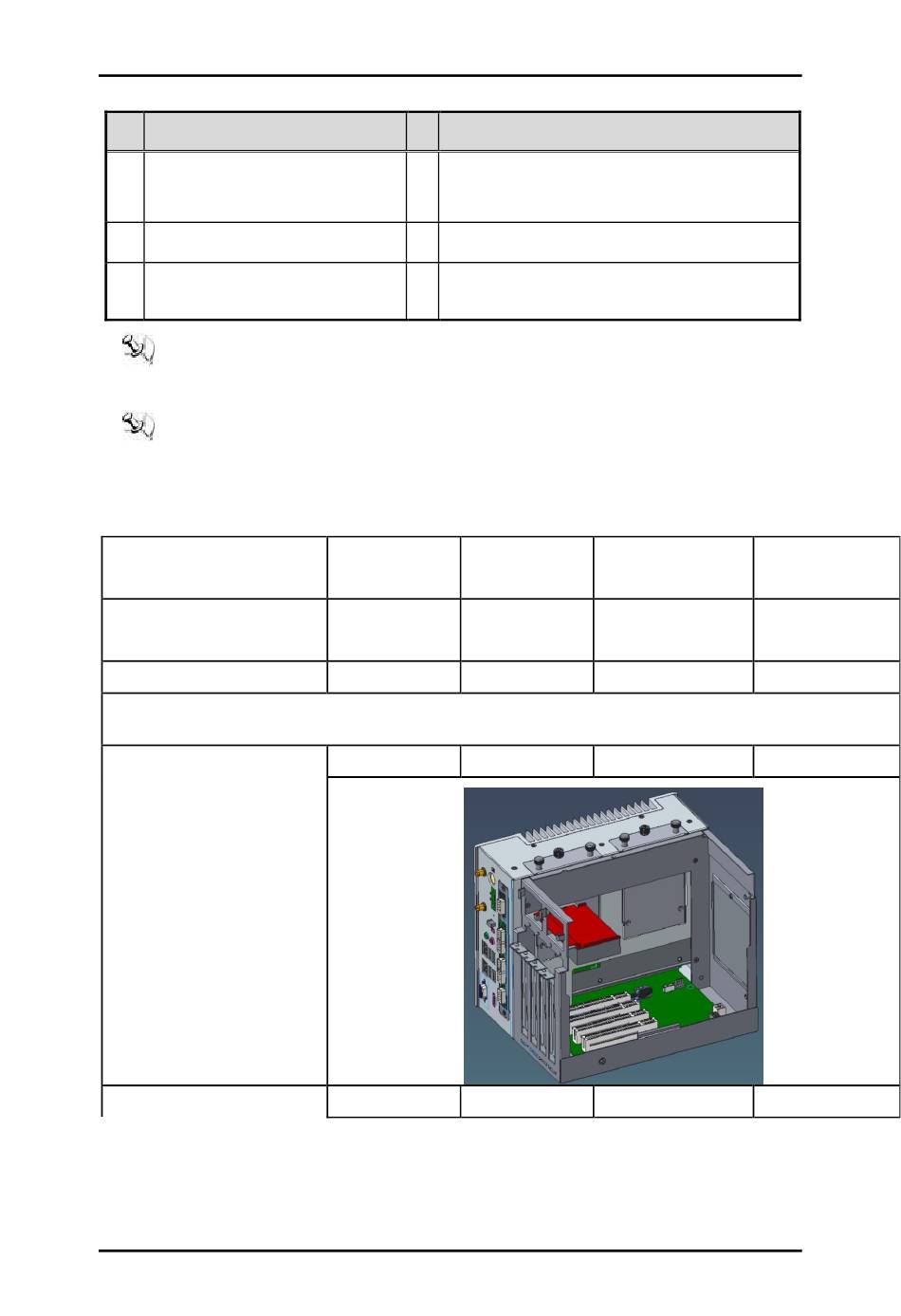

The following shows each slot's max. length for add -in card in the system with different
configurations.
1)
Riser card's power cable
is un-installed.
2)
48
No. Description
4 Slot 4: PCIe x4 or PCI
5 Power connector of AX96410 or AX96411(riser)
6 Internal fan module
Slot 1 Slot 2
(PCIe x16) (PCIe x4)
113.06 113.06
(mm) (mm)
20.32(mm) 20.32(mm)
234.07(mm) 234.07(mm)
234.07(mm) 234.07(mm)
Slot 3
(PCI x4 or PCI) (PCI x4 or PCI)
113.06
(mm)
20.32(mm)
234.07(mm)
185.00(mm)
Hardware Installation
Slot 4
113.06
(mm)
20.32(mm)
234.07(mm)
185.00(mm)
