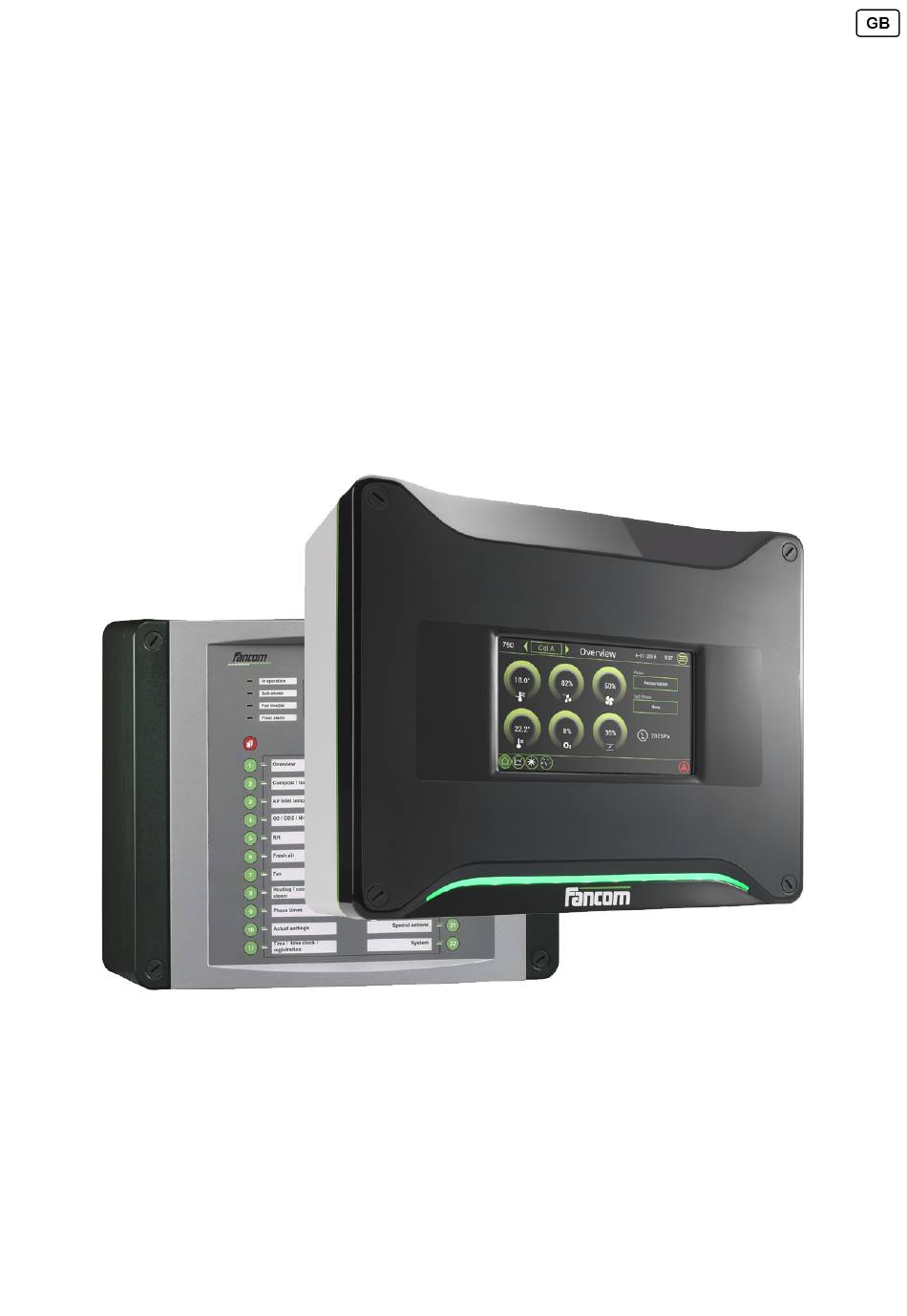

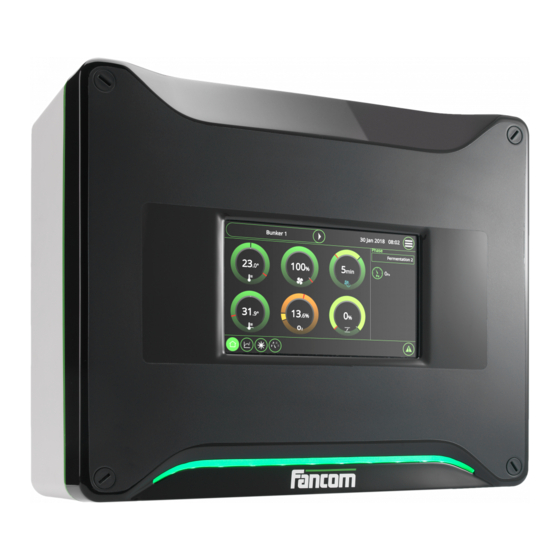

  • Page 1 LUMINA 750 LUMINA 750 TOUCH USER MANUAL VERSION N1...
  • Page 2 N.B.: The original, authentic version of this manual is the English version produced by Fancom B.V. or one of its daughter companies (referred to further as Fancom). Any modifications introduced to this manual by third parties have neither been checked nor approved by Fancom. Modifications are taken by Fancom to include translations into languages other than English and the insertion and/or deletion of text and/or illustrations to/from the original contents.

  • Page 3: Table Of Contents

    Table of contents General introduction ..........................1 Documentation with the control computer ................... 1 How to use this manual ....................... 1 Fancom Sales & Service Center ....................1 F-Central FarmManager™ ......................2 Basic working principles ........................3 Principle diagram tunnel ......................3 14 tunnel phases .........................

  • Page 4: General Introduction

    Operation and safety instructions These subjects are covered in a separate manual. This manual also applies to other control computers in the Fancom F2000-line. Always read the safety instructions and warnings carefully before using the control computer. Always keep this manual close to the Lumina 750.

  • Page 5: F-Central Farmmanager

    General introduction F-Central FarmManager™ Virtually all Fancom equipment can be controlled and managed from a central location. This requires the F- Central FarmManager software package and a communication module. The screens in the control computers are also used in F-Central FarmManager. This means you can start working immediately.

  • Page 6: Basic Working Principles

    Lumina 750 Basic working principles Basic working principles Principle diagram tunnel Fresh air Tunnel air temperatures Fresh air TUNNEL Recirculation Compost Compost Compost Compost Compost Compost alternative: alternative: temp. 1 temp. 2 temp. 3 temp. 4 temp. 5 temp. 6...
  • Page 7 Lumina 750 Basic working principles Para- Empty Level- Warm Pas- Cool Con- Cool Spawn Deliv- Warm Cook Cool meter ling teuriz- down dition- down down pas- ation condi- spawn- 1,2&3 cook cook teuriz- tion- 1&2 ation 1&2 Com- n.a. 45-57...

  • Page 8: Phase Settings

    3. Extra phase settings 4. Sub-phase settings Current phase settings are the settings used by the Lumina 750 to control at this moment in the process. A number of pre-settings have been entered for each growing phase, the Phase pre-settings. These phase pre- settings have their own address in the computer memory.
  • Page 9 The table links the tonnage (T) to a certain amount of circulation (minimum, maximum and increase/day in %). After setting up this table, the Lumina 750 automatically selects the right amount of circulation (%) for the tonnage that is in the tunnel.

  • Page 10: Working Per Tunnel Phase

    The fresh air control value is always between these two limits. The Lumina 750 calculates the control value depending on the air inlet temperature or . If both influences are present, the greatest influence applies.
  • Page 11 Lumina 750 Basic working principles Compost temperature control value: 45.0°C (113°F) Levelling: minimum phase time: 6 hours Levelling: maximum phase time: 12 hours Temperature margin compost: 1.0°C (33.8°F) Difference compost: 2.0°C (35.6°F) Temperature °C (°F) 50 (122) 48 (118) Max. measured compost temp.
  • Page 12 Lumina 750 Basic working principles Required air inlet temperature 57.0°C (134.6°F) End value compost temperature 58.0°C (136.4°F) Maximum compost temperature 61.0°C (141.8°F) Pasteurization: minimum phase time 4 hours Pasteurization: maximum phase time 6 hours Temperature °C (°F) 61 (141) Max. compost temp.
  • Page 13 Lumina 750 Basic working principles 2.5.6 PHASE 8: Cool down spawning To quickly decrease the compost temperature to the required value so that spawn can be applied. This phase can be ended by selecting the next phase manually. Uses ●...
  • Page 14 This is better for the building. After the minimum phase time has elapsed (14a) the Lumina 750 will open the air inlet to cool the tunnel. After the maximum phase time has elapsed (14b) the computer will switch to the empty phase; the fan will be deactivated...

  • Page 15: Working Per Sub-Phase

    Lumina 750 Basic working principles Temperature °C (°F) Measured compost temperature 70 (158) 60 (140) 50 (122) 40 (104) Measured air temperature 30 (86) 20 (68) 10 (50) Phase Phase Phase Phase Phase Time (hours) Empty Cook out Max. phase time cool down...
  • Page 16 Lumina 750 Basic working principles 2.6.2 SUB-PHASE: Disinfection Killing flies and/or larvas during spawn run. Uses ● ● a fresh air inlet which automatically closes to keep the pesticide in the tunnel Important The disinfection sub-phase can be used only during the spawn run 1 and 2. This sub-phase can be started/stopped by pressing the disinfecting button.

  • Page 17: Using The Lumina 750

    Using the Lumina 750 Using the Lumina 750 Overview screen The Lumina 750 displays the screen by default. This screen provides a complete overview of the Overview current composting cycle status in a tunnel and the equipment managed by the control computer. The figure...
  • Page 18 Lumina 750 Using the Lumina 750 3.1.2 Working area Working area Air temperature dial Readout of the air temperature values (°C/°F) in the growing room. 1. Minimum air temperature setting 2. Air temperature control value 3. Maximum air temperature setting 4.
  • Page 19 Lumina 750 Using the Lumina 750 Compost temperature dial Readout of the compost temperature values (°C/°F) in the selected tunnel. 1. Actual compost temperature 2. Compost temperature control value O2 content dial Readout of the O content values (%) in the tunnel.
  • Page 20 Lumina 750 Using the Lumina 750 3.1.4 Air inlet temperature control Classic air temperature control settings: Function key 3: Air inlet temperature (page 38). à Dial Readout of the measured air temperature (°C/°F) in the selected growing room. Readout of the current air temperature control value (°C/°F) in the tunnel. When a...
  • Page 21 Lumina 750 Using the Lumina 750 à Dial Readout of the calculated relative humidity of the air inlet (%). Readout of the measured relative humidity (RH) using two temperature sensors: a dry bulb and a wet bulb. One of these sensors (the wet bulb) is kept wet by a wick hanging in a water reservoir.
  • Page 22 Lumina 750 Using the Lumina 750 à Dial Readout of the measured fan capacity (%) or the total air flow (m /hour) in the growing room. Readout of the circulation control value currently used by the control computer to regulate fan speed. This value can be a percentage of the fan capacity (%) or the total air flow (m /hour).
  • Page 23 Lumina 750 Using the Lumina 750 à Dial Readout of the average compost temperature (°C /°F). Faulty sensors and sensors showing a too great deviation are not used for this calculation. ● The control computer will automatically set sensors showing a temperature that differs too much from the previous average temperature (more than the maximum deviation) to non-active.
  • Page 24 Lumina 750 Using the Lumina 750 à Dial Readout of the current O -content measured on measuring point 1 (%). Readout of the current O -content measured on measuring point 2 (%). Setting of the desired O -content (%). Readout of the measured CO -content (%).
  • Page 25 Lumina 750 Using the Lumina 750 à Dial Readout of the measured position of the fresh air inlet (%) or the fresh air flow (m hour). Readout of the value currently used by the control computer to regulate the fresh air.
  • Page 26 Lumina 750 Using the Lumina 750 3.1.10 Growing phase control Phase à Selection of the current growing phase. Pull down growing phase elements: ● EMPTY ● LEVELING ● WARM UP PAST.1 ● WARM UP PAST.2 ● PASTEURIZATION ● COOLDOWN CONDITIONING ●...
  • Page 27 Lumina 750 Using the Lumina 750 3.1.11 Subphase control Sub Phase à Selection of the current sub phase. Pull down sub phase elements: ● NONE ● CLEANING ● DISINFECT ● FILLING...

  • Page 28: Trends

    Lumina 750 Using the Lumina 750 Trends à The trends screen contains buttons to go to the trend graph screens of the tunnel. Each trend line is made of 48 data points and presents the last 48 hours (value/ hour) Air temperature history (°C/°F)

  • Page 29: Conditions

    Lumina 750 Using the Lumina 750 Conditions à The conditions screen presents an overview of measured outside, room and inlet values. Air temperature (°C/°F) Compost temperature (°C/°F) Relative humidity (%) Absolute humidity (g/kg) content (ppm) Heat content (KJ/kg)

  • Page 30: Controls

    Lumina 750 Using the Lumina 750 Controls à The control screen presents an overview of climate controls and their actual amount of control or position (%). Fresh air valve Circulation control Heating valve Cooling valve 1/2 Humidification valve Steam valve...
  • Page 31 Lumina 750 Using the Lumina 750 Manual control Click the desired control bar to open the manual control window. Click to enable the manual control and enter the desired value using or click the number and enter the value by using the nummeric keyboard. After enabling manual control, the icon in the...

  • Page 32: Alarm

    Lumina 750 Alarm Alarm The Lumina 750 displays the alarm overview by pressing . There are two types of alarm: 1. Loud alarm: An active loud alarm sounds a siren, shows an alarm message and a report on the screen. This type of alarm has a high priority.
  • Page 33 The Lumina 750 tests a number of functions which are unrelated to climate control but concern the functioning of the control computer itself. The computer will show the number of error if he detects one. The presented number...
  • Page 34 Lumina 750 Alarm System alarms Alarm Cause Backup alarm The computer will be active on factory settings. Please check the settings. Watchdog alarm System alarms do not normally occur. Contact the installer Communication alarm immediately if these system alarms are displayed.

  • Page 35: Alarm Settings

    Lumina 750 Alarm 4.1.3 Testing the alarm Fancom advises testing the alarm weekly for correct functioning. During the test the control computer will give a loud alarm. Test the alarm as follows: Press and choose 2. Change the alarm status to Alarm test.

  • Page 36: Alarm History

    Lumina 750 Alarm O2 difference Setting of the value the measured O content may be lower than the O control value. Tunnel < Compost Setting of the value by which the measured tunnel temperature may be lower than temperature difference the average compost temperature.

  • Page 37: Maintenance

    1. Check the water level and wicks in all the RH measurement units. The water and wick should be clean (no algae) and there must be sufficient water. Preferably use distilled water and an original Fancom RH wick. Ensure that the water transport wires are properly connected to the sensor.

  • Page 38: Classic Screens

    Swipe to the left to switch between the function keys. Function key 1: Overview Fancom will explain how to use the function keys below. An illustration of the display is also shown with an explanation of the values, which can be entered and/or readout.
  • Page 39 Lumina 750 Classic screens Air inlet temp. Readout of the measured air inlet temperature (°C/°F). Readout of the measured O content (%) in the selected tunnel. Phase Setting of the current tunnel phase. The phases can be started manually here.

  • Page 40: Function Key 2: Compost/Tunnel Temp

    Readout of the current compost/tunnel temperature control value. At the beginning of each tunnel phase the control value is automatically set to the measured compost/tunnel temperature. The Lumina 750 will gradually control the compost/ tunnel temperature towards the end value. The speed of this control is entered at the adjustment/hour setting.

  • Page 41: Function Key 3: Air Inlet Temperature

    Readout of the current air inlet temperature control value. Each time a phase is started the Lumina 750 will make the control value equal to the measured air inlet temperature. The Lumina 750 calculates the air inlet temperature control value depending on the average compost/tunnel temperature.
  • Page 42 Correction Setting of the extent to which the Lumina 750 must correct the air inlet temperature. If this value is 0, the Lumina 750 will control the air inlet temperature independently to the compost/tunnel temperature.

  • Page 43: Function Key 4: O2/Co2/Nh3

    Lumina 750 Classic screens Function key 4: O2/CO2/NH3 Ctrl. value O2 Setting of the desired O -content (%). O2-1 Readout of the current O -content measured on measuring point 1 (%). O2-2 Readout of the current O -content measured on measuring point 2 (%).

  • Page 44: Function Key 6: Fresh Air

    If fresh air control is used, the Lumina 750 will take the air inlet temperature or O influences on fresh air into account in the calculation of the fresh air control value.

  • Page 45: Function Key 7: Fan

    /hour. The Lumina 750 can calculate this control value using two methods: The Lumina 750 increases the fan capacity, if the measured compost/tunnel temperatures differ too much from each other or the average compost/tunnel temperature is too high.

  • Page 46: Function Key 8: Heating/Cooling/Steam

    Setting of whether heating is to be used. Dead zone Setting of the number of degrees the air inlet or room temperature may be too low before the Lumina 750 opens the heating valve. The larger the dead zone, the later heating will activate. Cooling Ctr.
  • Page 47 Classic screens Dead zone Setting of the number of degrees the air inlet temperature may be too high before the Lumina 750 opens the cooling valve. The larger the dead zone, the later cooling will activate. Release cool-2 Setting of the number of degrees the compost temperature may be too high, before the Lumina 750 will switch on the second cooling.

  • Page 48: Function Key 9: Phase Times

    Pasteurization (3) and Cool down conditioning (4). End2 Setting of the latest time the Lumina 750 can switch to the next phase. The Lumina 750 calculates this end time during all the phases. If the maximum phase time has not been entered, the computer will automatically add one year to the current time and date and enter this as the maximum phase time.

  • Page 49: Function Key 10: Actual Settings

    Lumina 750 Classic screens 6.11 Function key 10: Actual settings All the current climate settings are found at this function key. These settings have been made at the function key concerned. At the start of a new phase the phase pre-settings are copied to the actual settings. The controller uses these actual settings to control the tunnel.
  • Page 50 Lumina 750 Classic screens For detailed information, see the references in the figure below. 1. Function key 2: Compost/tunnel temp. (page 37). 2. Function key 3: Air inlet temperature (page 38). 3. Function key 4: O2/CO2/NH3 (page 40). 4. Function key 6: Fresh air (page 41).

  • Page 51: Function Key 11: Time/Time Clock/Registr

    The Lumina 750 has three time clocks. Three start, run and repeat times can be entered per time clock. Start Readout of the next time the Lumina 750 will activate the clock. If the clock is active, the time at which it was activated will be shown. Time Readout of the current time.
  • Page 52 Lumina 750 Classic screens Number of times Setting of how often the Lumina 750 must repeat this control daily. The time clock must be active at the following times: from 6:00 to 10:00; from 12:00 to 12:30; from 13:00 to 13:30;...

  • Page 53: Function Key 12: Alarm Settings

    Lumina 750 Classic screens 6.13 Function key 12: Alarm settings All alarm settings are entered at this function key. Refer to chapter Alarm for information concerning the readout and deactivation of alarms. If a setting is set to 0, the computer will not give an alarm for this climate parameter.

  • Page 54: Function Key 13: Levelling

    Max wait time Setting of the maximum wait time before the Lumina 750 gives an alarm. The Lumina 750 can only give an air inlet temperature alarm or compost alarm after the measured value has been within the (calculated) values. When the measured value is still too low or too high after the alarm delay and the maximum wait time, the alarm elapses.

  • Page 55: Function Key 14: Warm Up Pasteurization

    750. As soon as the compost has reached this temperature, the Lumina 750 must switch to the next phase (Cool down conditioning) on condition that the minimum phase time has elapsed. In this case the Lumina 750 will not wait until the maximum phase time has elapsed.

  • Page 56: Function Key 18: Cool Down Spawning

    à Compost cool-2 Setting of the maximum compost temperature above which cooling-2 is blocked. The Lumina 750 will then try to use the "cheap" outside air first to cool down the compost. For circulation table, Circulation control (page 6). 6.20...

  • Page 57: Function Key 20: Outside Conditions

    Setting of the required fresh air inlet position in % or the amount of fresh air in m hour, which must be reached by the Lumina 750 during cleaning. The sub-phase indication light is continuously on when cleaning the tunnel.
  • Page 58 /hour) which applies during filling. Fresh air Setting of the required fresh air inlet position in % or the amount of fresh air in m hour, which must be reached by the Lumina 750 during filling. Exhaustvalve Setting of the exhaustvalve (%) during filling.
  • Page 59 /hour) which applies during O2 calibration. Fresh air Setting of the required fresh air inlet position in % or the amount of fresh air in m hour, which must be reached by the Lumina 750 during O2 calibration. o2-1/2 Readout of O -sensor measurements.

  • Page 60: Messages When Changing Settings

    Password If the password has been changed (no longer ) and a setting is changed, the Lumina 750 will ask for the password. It will remember the password for several minutes. This avoids the necessity of entering the new password for every change. Function key System is always protected by a password.
  • Page 61 Enter the new password and press Enter the new password once more and press The Lumina 750 will accept the new password after it has been entered correctly twice. Do not forget the new password; without it, accessing the Lumina 750 will be impossible.
