Summary of Contents for Fancom VLR.6

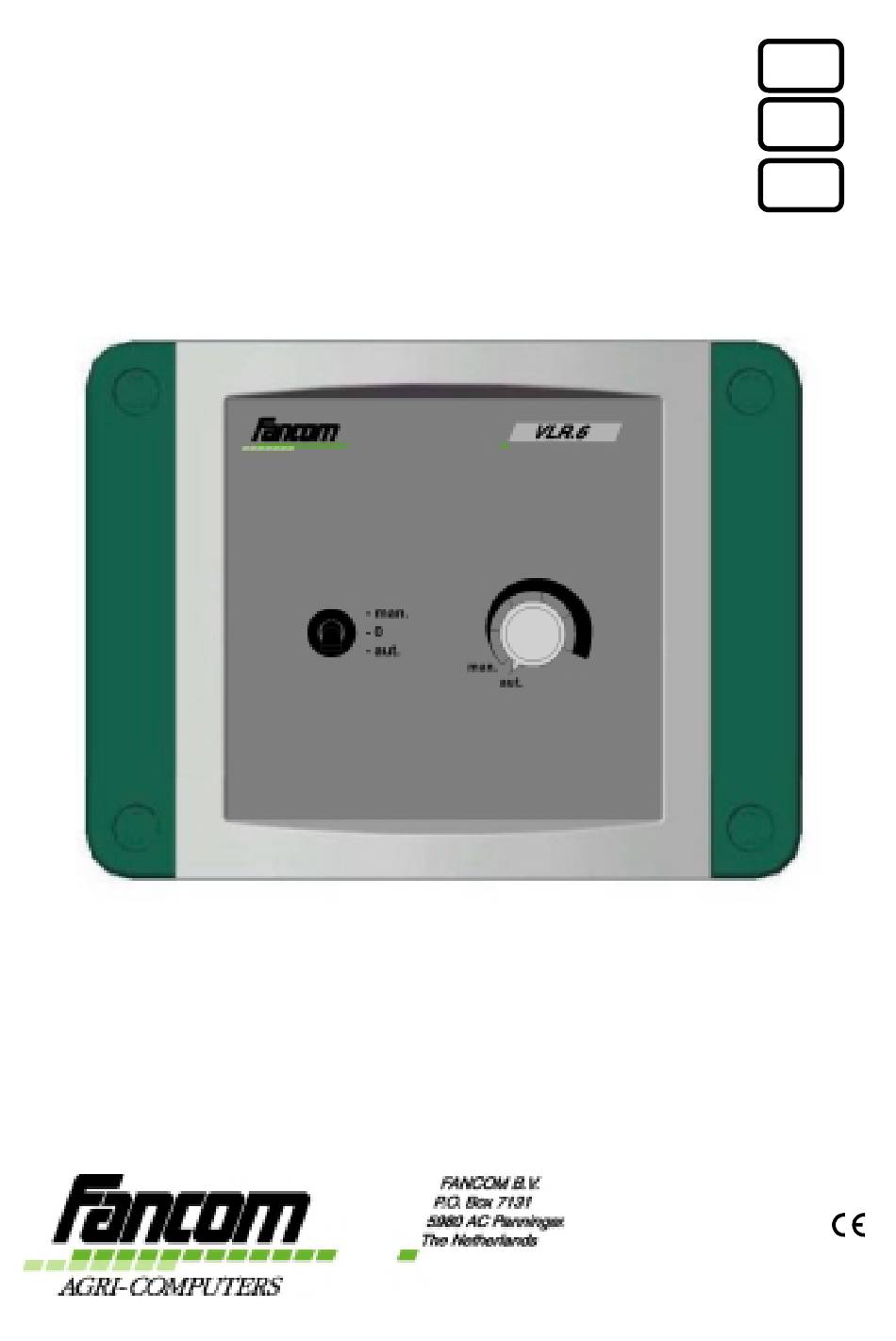

- Page 1 VLR.6 MANUAL...
- Page 2 All efforts have been made to assure the accuracy of the contents of this manual. However, should any errors be detected, Fancom would greatly appreciate being informed of them. The above notwithstanding, Fancom can assume no responsibility for any errors in this manual or their consequence.
- Page 3 Address : Industrieterrein 34 City : Panningen (the Netherlands) hereby declares that the: VLR.6 satisfies the following standards or other standard document(s): Emission characteristics were assessed according to standard NEN-EN 50081-1. The susceptibility was established in accordance with the requirements of the generic immunity standard NEN-EN 50082-1 and the surge immunity standard NEN-EN-IEC 61000-4-5 4kV common mode and 2kV differential mode.
-
Page 4: Table Of Contents
Fancom VLR.6 Table of contents Table of contents About this manual 1. Introduction ....................1 2. Technical specifications .................2 3. Mounting and installation ..............3 4. Operation ....................4 5. Points of attention ..................5 5.1 Analog control .................5 5.2 Jumper setting................6 6. Adjustment procedures ................7 6.1 Fan without DSR-feedback ............7... -
Page 5: About This Manual
This manual contains information about the installation and service of an end station. Read this manual carefully and follow all safety instructions. If you have any questions, please do not hesitate to contact your Fancom dealer. The subjects discussed in this manual are listed in the table of contents. -
Page 6: Introduction
The VLR.6 is a power controller for the control of: • 1-phase voltage controllable (triac) fans • Electronically controllable lighting (incandescent lighting and controllable fluorescent lighting) • Heating lamps (phase angle control) • Heating elements (period control) The VLR.6 has extensive manual operation possibilities in the event of malfunctioning. -
Page 7: Technical Specifications
-10°C to 50°C (14°F to 112°F) Relative humidity < 95%, uncondensed Fancom advises 2-wire connection of Fancom fans. If the fans are connected parallel, heat production per fan may increase (causing a shortened working life). Fancom therefore advises not to parallel... -
Page 8: Mounting And Installation
Fancom VLR.6 3. Mounting and installation 3. Mounting and installation When mounting/installing an end station, the following should be observed: Disconnect power before installation. 1. Use correct wires as shown on the connection diagrams and follow all instructions. 2. Never mount the end station in a place where the weather has direct influence (not in the sun, not in places where the temperature can rise sharply etc.). -
Page 9: Operation
Fancom VLR.6 4. Operation 4. Operation In the event of malfunctioning the VLR.6 can be set manually using the switch and knob on the front. Table 1 indicates the function of the output at the different switch and/or knob settings. -
Page 10: Points Of Attention
5. Points of attention 5.1 Analog control The VLR.6 is set as standard as an 10-0Vdc analog control. When this control changes into a 0-10Vdc control, jumper J3 should be changed; see jumper setting. The manual operation connection should also be changed. -
Page 11: Jumper Setting
Fancom VLR.6 5. Points of attention 5.2 Jumper setting The VLR.6 has four jumpers with which different settings can be made. Table 3 shows the applications and corresponding jumper settings. The factory setting is for fan(s) with DSR feedback. Disconnect the power for the VLR.6 before setting the jumper(s). -
Page 12: Adjustment Procedures
Using potentiometer P2 adjust the minimum voltage between "U" and "V" so that the fan is barely running. A Fancom fan is normally 2-wire connected and the voltage between "U" and "V" not set below 60Vac. (With a 3-wire connection , do not set the Fancom fan below 45Vac). -
Page 13: Fan With Dsr-Feedback
Set the knob to MAN. and turn until the fan starts running. Using potentiometer P2 adjust the minimum voltage between "U" and "V" (for a Fancom fan, not below 30Vac). 6.3 Lighting Switch off the power supply to the end station. -
Page 14: Heating
Fancom VLR.6 6. Adjustment procedures 6.4 Heating The heating control is a fully period controlled control within 10 seconds. This means, for example, that with 40% control the heating will be on for 4 seconds and off for 6 seconds. A full period control means that an entire sine will always be controlled. - Page 15 10-06-97 d.d: 10-06-97 File: Aansl. VLR.6_CE Scale: n.v.t. By: VJ / Ref: PRe Prog.: CANVAS 5 Connect Fancom equipment according to the prevailing Fancom bv. P.O. box 7131 5980 AC Panningen standards of the local electricity company. agro computers...
- Page 16 ELECTRICAL DIAGRAM VLR.6 Knob Control 10-0Vdc (or 0-10Vdc) At 0-10V control change around Control unit BL and RD. fuse A2 L1 white blue black brown man. aut. man. aut. orange Technical modifications reserved Update d.d. By / Ref Subject: Version: Connection VLR.6...
- Page 17 0,8mm Fancom 0,8mm single 0,8mm alarm unit Fancom advises you to install a min / max thermostat in each CLIMATE 2x0,8mm room / house and to connect them to the alarm circuitry. Siren 12Vdc ALARM DIAGRAM WITH A MULTIPLE ALARM UNIT...
