Lumina 750
6.21

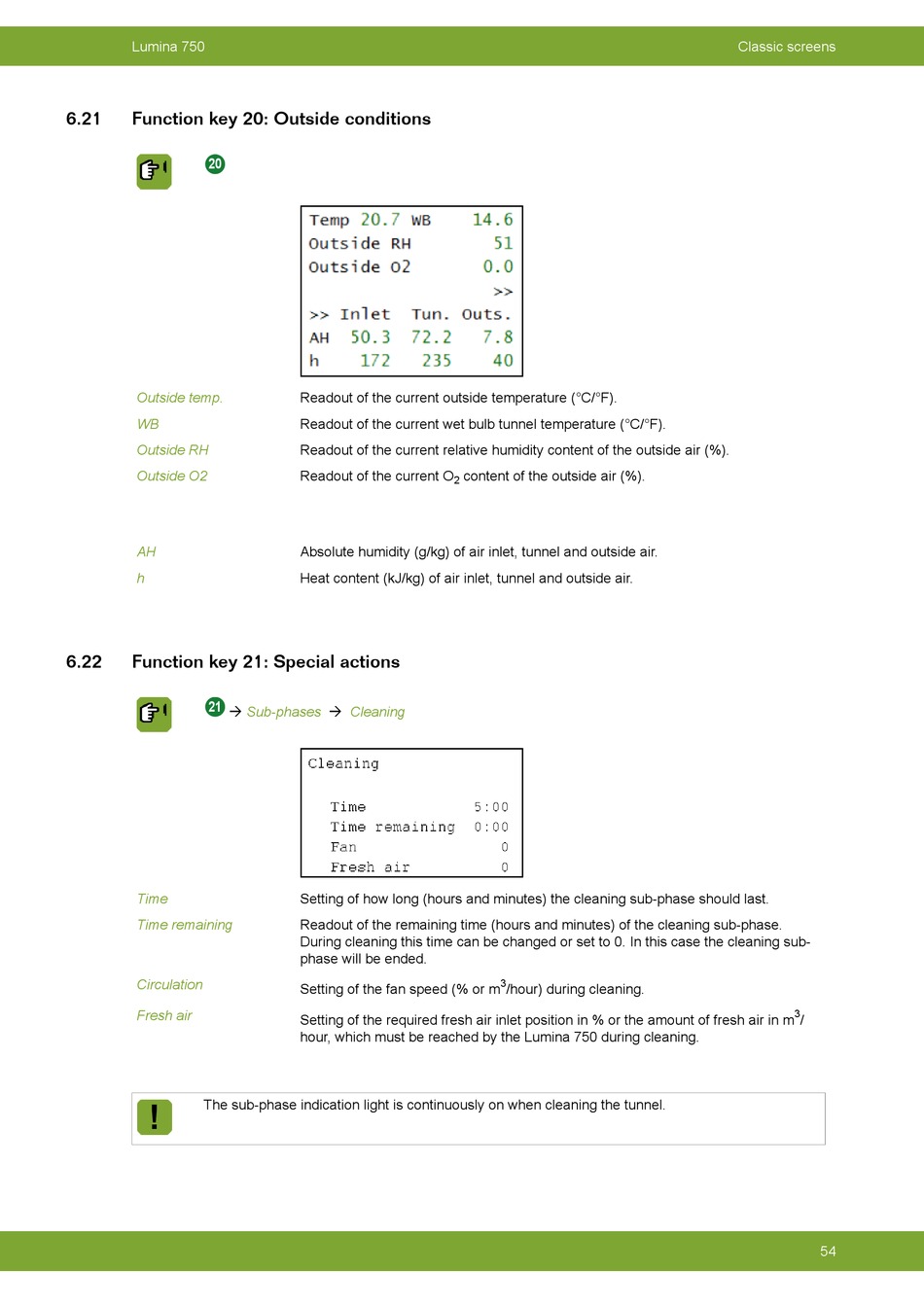

Function key 20: Outside conditions

20
Outside temp.
WB
Outside RH
Outside O2
AH
h
6.22

Function key 21: Special actions

21
à
Time
Time remaining
Circulation
Fresh air
The sub-phase indication light is continuously on when cleaning the tunnel.
Readout of the current outside temperature (°C/°F).
Readout of the current wet bulb tunnel temperature (°C/°F).
Readout of the current relative humidity content of the outside air (%).
Readout of the current O
Absolute humidity (g/kg) of air inlet, tunnel and outside air.
Heat content (kJ/kg) of air inlet, tunnel and outside air.
Sub-phases Cleaning
à
Setting of how long (hours and minutes) the cleaning sub-phase should last.
Readout of the remaining time (hours and minutes) of the cleaning sub-phase.
During cleaning this time can be changed or set to 0. In this case the cleaning sub-
phase will be ended.
Setting of the fan speed (% or m
Setting of the required fresh air inlet position in % or the amount of fresh air in m
hour, which must be reached by the Lumina 750 during cleaning.
content of the outside air (%).
2
3
/hour) during cleaning.
Classic screens
3
/
54
