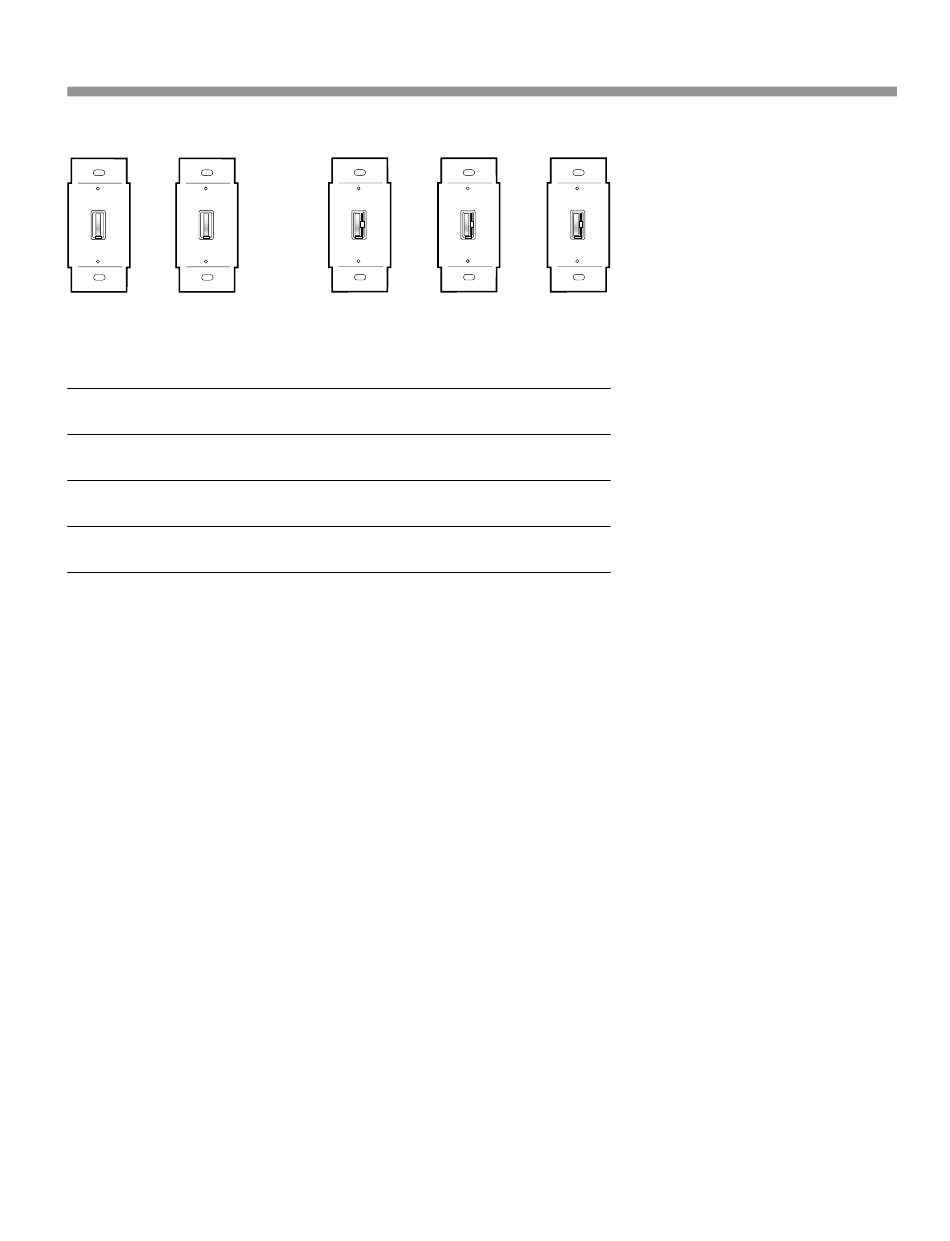

selecting dimmer/switch locations

Decide which lights you want to control with dimmers/switches
1
2
Choose your dimmer/switch locations:
1 (Switch):
2 (Switch):
3 (Dimmer):
4 (Dimmer):
5 (Dimmer):
NOTE: When choosing locations be sure each control meets
the following requirements:
Switches
Total wattage of all light bulbs
controlled by each switch must
be between 10 W (0.08 A) to
600 W (5 A).
Switch requires neutral wire in
location of install.
Use AuroRa
switches with all
®
lighting loads (incandescent,
magnetic low-voltage, electronic
low-voltage, fluorescent).
Do not use dimmers in 3-way
circuits with AuroRa switches.
When combining dimmers or
switches in the same wallbox,
the dimmer's/switch's load
capacity must be reduced (See
"Derating Chart" on page 22).
Need help? Contact Lutron Technical Support 24/7: 800.523.9466
3
4
Dimmers
Total wattage of all light bulbs
controlled by each dimmer must
be between 50 W and 600 W.
Use dimmers with 120 V~
incandescent light fixtures only.
Do not use with low-voltage
transformers or compact
fluorescent bulbs.
When combining dimmers or
switches in the same wallbox,
the dimmer's/switch's load
capacity must be reduced (See
"Derating Chart" on page 22).
5
Suggested Locations:
1 (Switch): Entry
2 (Switch): Kitchen
3 (Dimmer): Foyer
4 (Dimmer): Garage Exterior
5 (Dimmer): Family
|
