installing a dimmer/switch

Installing an AuroRa
®
dimmer/switch is as simple
as replacing a light switch
Installing the
designer insert
(use with designer
opening wallplates)
Designer-style
Wallplate Inserts allow
Lutron Traditional-
style dimmers and
switches to be used
with designer-style
wallplates.
|
Lutron 6 Need help? Contact Lutron Technical Support 24/7: 800.523.9466
Your first step is to identify how many switches control the lights you
have decided to add to your system.
This is important so that you use the correct installation instructions.
•
Lutron has created specific instructions for lights controlled by one,
•
two, or three switches to help simplify your installation.
After you have installed the first dimmer/switch, repeat the process
until all of the AuroRa dimmers/switches have been installed.
Designer
Insert
Designer
Wallplate

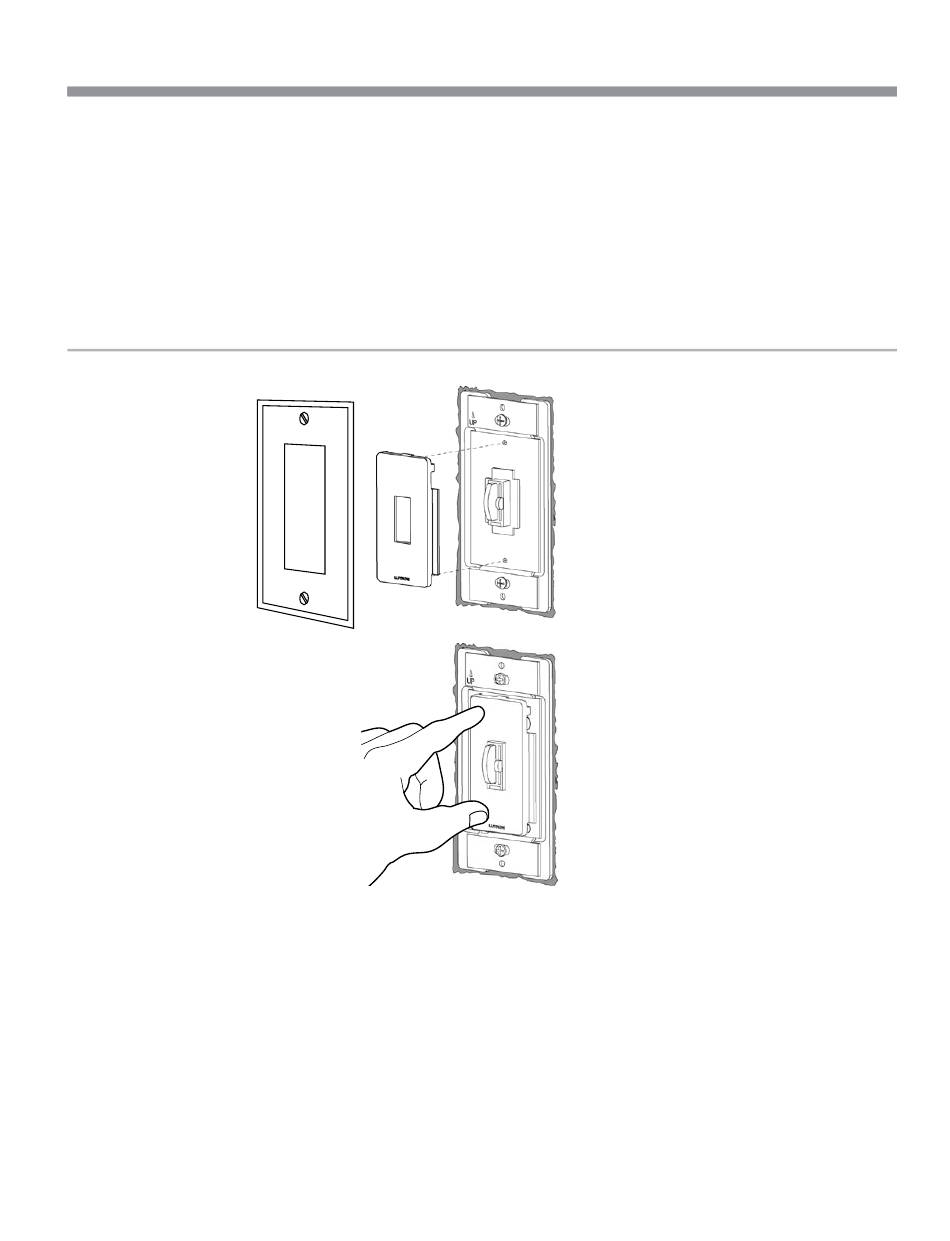

A. Slide the insert over the dimmer/
switch, making sure to line up
the pins on the back of the
insert with the screw holes on
the dimmer/switch as shown.
B. Press the insert firmly in place.
C. Re-install the wallplate.
